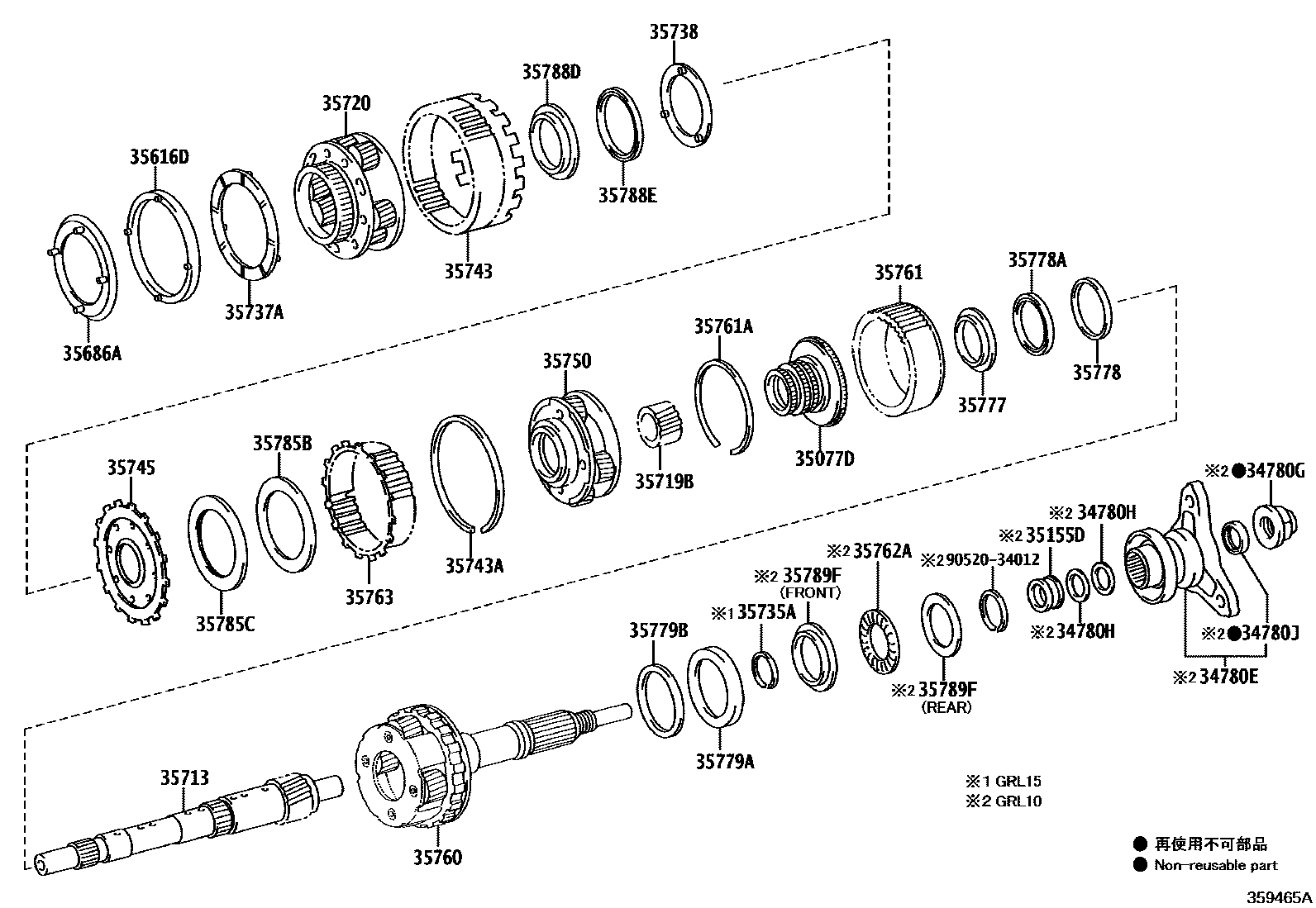

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
34780EYOKE ASSY, FLANGE (FOR AUTOMATIC TRANSMISSION)
34780HWASHER, PLATE (FOR ATM FLANGE YOKE)
34780JSEAL, TYPE V OIL (FOR FRANGE YOKE)
35077DFLANGE SUB-ASSY, RR PLANETARY RING GEAR
35155DSLEEVE, REAR COVER
T=1.75, MARK 02
T=1.80, MARK 03
T=1.85, MARK 04
T=1.90, MARK 05
T=1.95, MARK 06
T=2.00, MARK 07
T=2.05, MARK 08
T=2.10, MARK 09
T=2.15, MARK 10
T=2.20, MARK 11
T=2.25, MARK 12
T=2.30, MARK 13
T=2.35, MARK 14
T=2.40, MARK 15
T=1.70, MARK 00
35616DWASHER, CLUTCH DRUM THRUST
35686AWASHER, CLUTCH DRUM THRUST, NO.2
35719BGEAR, PLANETARY SUN
35735ARING, PLANETARY OUTPUT SHAFT OIL SEAL
35737WASHER, PLANETARY CARRIER THRUST
35737AWASHER, PLANETARY CARRIER THRUST, NO.1
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35743GEAR, FRONT PLANETARY RING
35743ARING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR)
35745FLANGE, FRONT PLANETARY RING GEAR
35750GEAR ASSY, CENTER PLANETARY
35760GEAR ASSY, REAR PLANETARY
35761GEAR, REAR PLANETARY RING
35761ARING, HOLE SNAP (FOR REAR PLANETARY RING GEAR)
35762ABEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANGE)
REAR
FRONT
35763GEAR, CENTER PLANETARY RING
35778ABEARING, THRUST NEEDLE ROLLER
35779ARACE, THRUST BEARING, NO.9
35779BBEARING, THRUST NEEDLE ROLLER
35785BRACE, THRUST BEARING, NO.4
35785CBEARING, THRUST NEEDLE ROLLER
35788DRACE, THRUST BEARING, NO.3
35788EBEARING, THRUST NEEDLE ROLLER
35789FRACE, THRUST BEARING (FOR REAR PLANETARY FLANGE)
REAR,T=3.8
REAR,T=3.9
REAR,T=4.0
REAR,T=4.1
REAR,T=4.2
FRONT
REAR,T=3.85
REAR,T=3.95
REAR,T=4.05
REAR,T=4.15
REAR,T=4.25
REAR,T=4.30
REAR,T=4.35
FRONT
REAR
9052034012
main90520-34012
35 parts on this diagram · 3 diagrams in section
