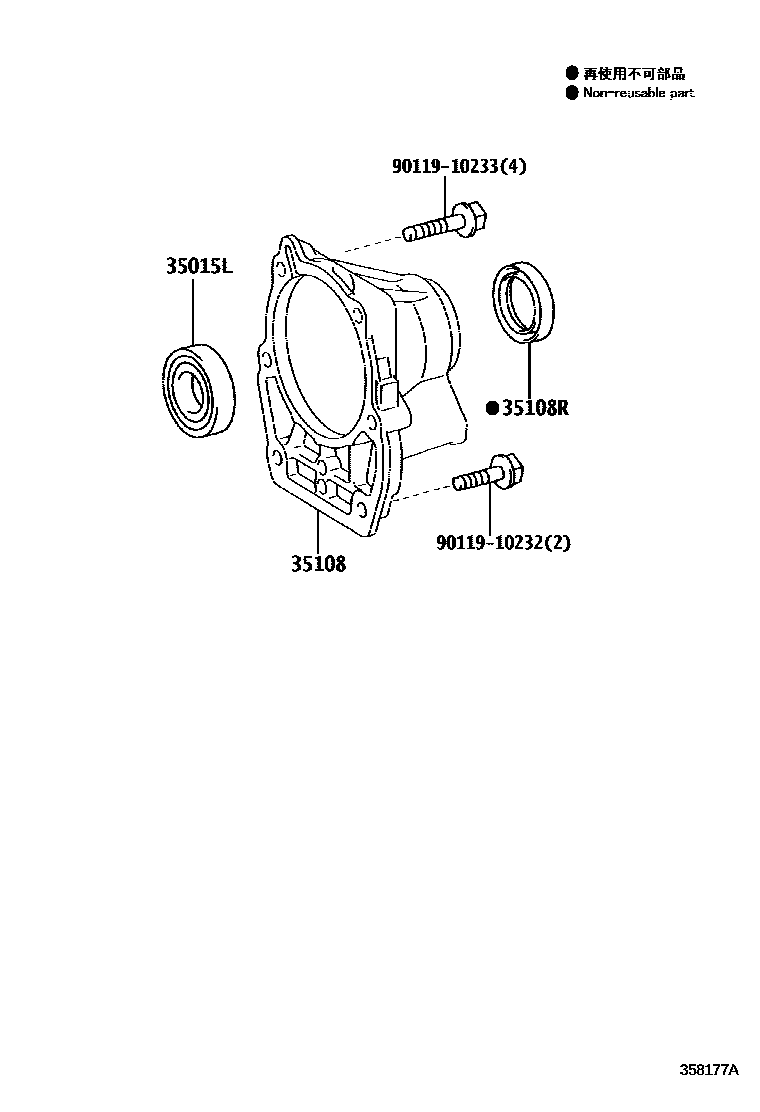

EXTENSION HOUSING (ATM)

0001 1A760E 0002 1A960E

35015LBEARING, RADIAL BALL(FOR TRANSMISSION CASE ADAPTER)

main90363-34001iGRL10201201-201309

main90363-34006iGRL11201201-201510

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-30260iGRL11201201-201510

main35108-50030iGRL10201201-201309

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-40034iGRL11201201-201510

sub90311-40045

main90311-42024iGRL10201201-201309

9011910232

main90119-10232

9011910233

main90119-10233

5 parts on this diagram · 2 diagrams in section
