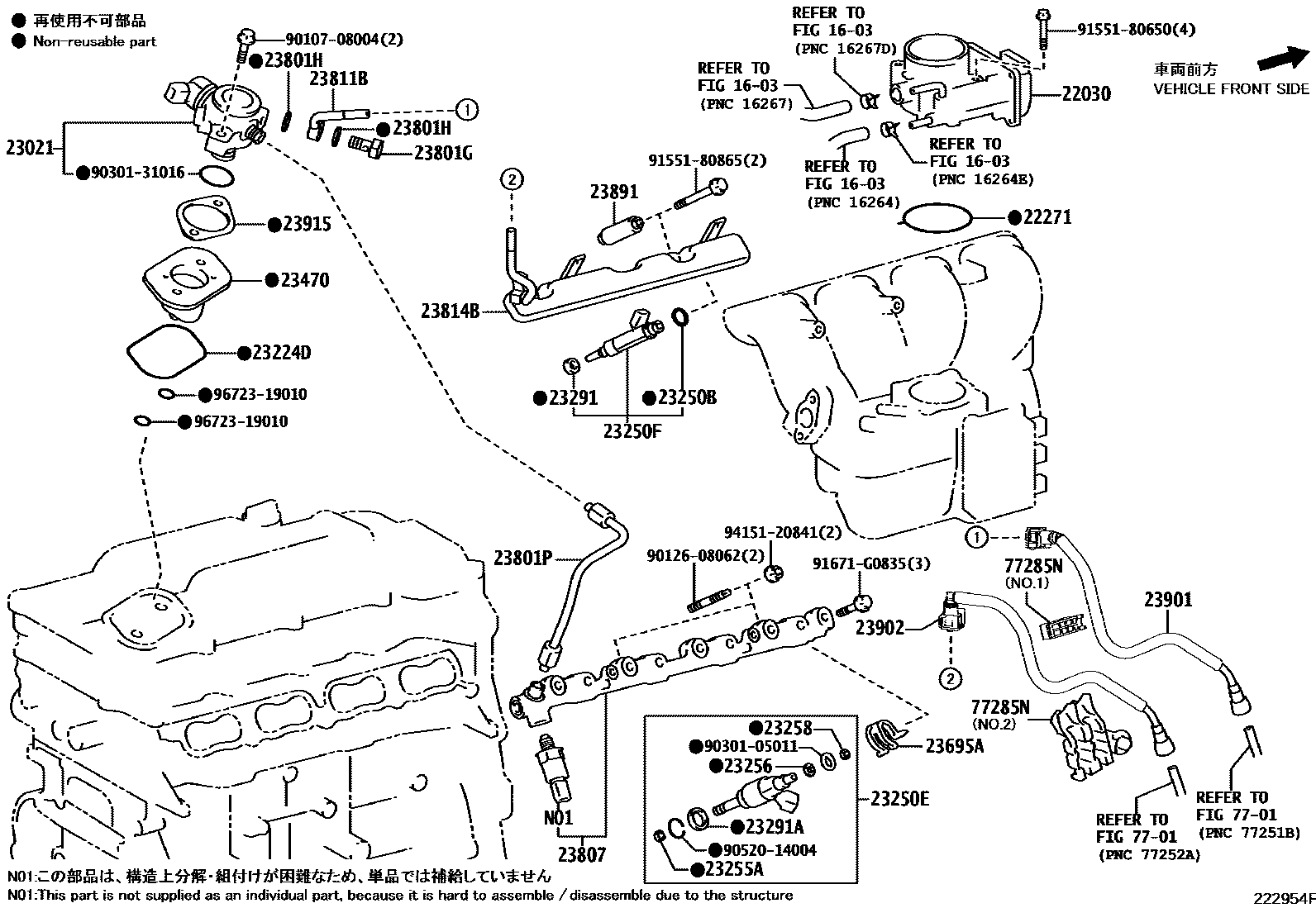

FUEL INJECTION SYSTEM
1603
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23224GASKET, FUEL PUMP SPACER, RH
23250INJECTOR ASSY, FUEL
MARK BLACK
MARK BROWN
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1
MARK 2
MARK 3
MARK 1
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 2
MARK 3
MARK 3,REFER REPAIR MANUAL
MARK 6
MARK 7
MARK 8
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK YELLOW
MARK BLACK
MARK BROWN
MARK GREEN
23250FINJECTOR ASSY, FUEL(FOR PORT)
MARK=23250-31140
MARK=23250-31230
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
NO.1
NO.1
NO.2
CHINA SPEC
HONG KONG SPEC
TAIWAN SPEC
THAILAND SPEC
SINGAPORE SPEC
MACAO SPEC
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23695ACLAMP, NOZZLE HOLDER
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
ENGINE NO.=W******
ENGINE NO.=Z******
23811BPIPE, FUEL, NO.1
TYPE B:REFER ILLUST.
23814BPIPE, FUEL DELIVERY
23891SPACER, FUEL DELIVERY
23901TUBE SUB-ASSY, FUEL
THAILAND SPEC
HONG KONG SPEC
TAIWAN SPEC
CHINA SPEC
SINGAPORE SPEC
MACAO SPEC
NO.1
NO.2
23902TUBE SUB-ASSY, FUEL
23915INSULATOR, FUEL PUMP
7701
77285NCLAMP, FUEL TUBE, NO.1
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
9010708004
main90107-08004
9012608062
main90126-08062
9030105011
main90301-05011
9030131016
main90301-31016
9052014004
main90520-14004
9155180650
main91551-80650
9155180865
main91551-80865
91671G0835
main91671-G0835
9415120841
main94151-20841
9672319010
main96723-19010
39 parts on this diagram · 11 diagrams in section
