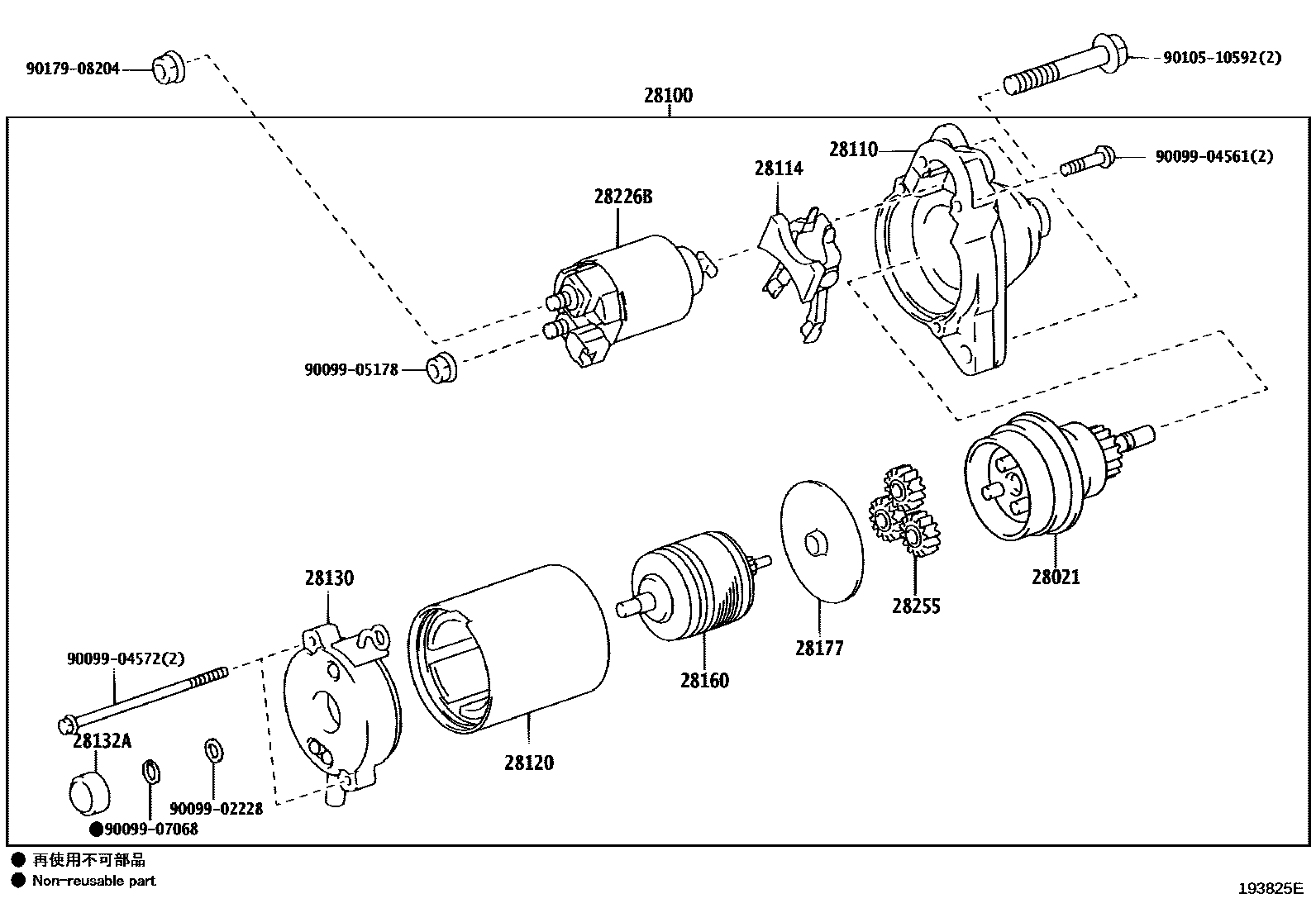

STARTER

0001 112V 1.7KW 0002 112V 1.7KW 0003 112V 1.7KW,W/O(STOP & START SY0004 112V 1.7KW,W(STOP & START SYST

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201201-202007

main28021-36140i8ARFTS..ARL10..LHD..GEN201510-202007

WITH(STOP & START SYSTEM)

28100STARTER ASSY

main28100-31071i2GRFSE..GRL10201201-201510

12V 1.7KW

main28100-31220i2GRFKS..GRL12201510-202007

12V 1.7KW

main28100-36140i8ARFTS..ARL10..LHD..GEN201510-202007

12V 1.7KW,WITH(STOP & START SYSTEM)

main28100-36150i8ARFTS..ARL10201510-202007

12V 1.7KW

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i2GRFSE..GRL10201201-201510

main28110-31210i2GRFKS..GRL12201510-202007

main28110-36150i8ARFTS..ARL10201510-202007

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i2GRFSE..GRL10201201-202007

28120YOKE ASSY, STARTER

main28120-28060i2GRFSE..GRL10201201-202007

main28120-36140i8ARFTS..ARL10..LHD..GEN201510-202007

WITH(STOP & START SYSTEM)

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31070i2GRFKS..GRL12201201-202007

main28130-36150i8ARFTS..ARL10201510-202007

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2GRFSE..GRL10201201-202007

28160ARMATURE ASSY, STARTER

main28160-21060i2GRFSE..GRL10201201-202007

main28160-36110i8ARFTS..ARL10..LHD..GEN201701-202007

WITH(STOP & START SYSTEM)

main28160-37100i8ARFTS..ARL10..LHD..GEN201510-201701

WITH(STOP & START SYSTEM)

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2GRFSE..GRL10..8FC;2GRFSE,4GRFSE..GRL11,15201201-202007

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i2GRFSE..GRL10201201-202007

main28226-37100i8ARFTS..ARL10..LHD..GEN201510-202007

WITH(STOP & START SYSTEM)

28255GEAR, PLANET

main28255-20020i2GRFSE..GRL10201201-202007

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9010510592

main90105-10592

9017908204

main90179-08204

18 parts on this diagram · 4 diagrams in section
