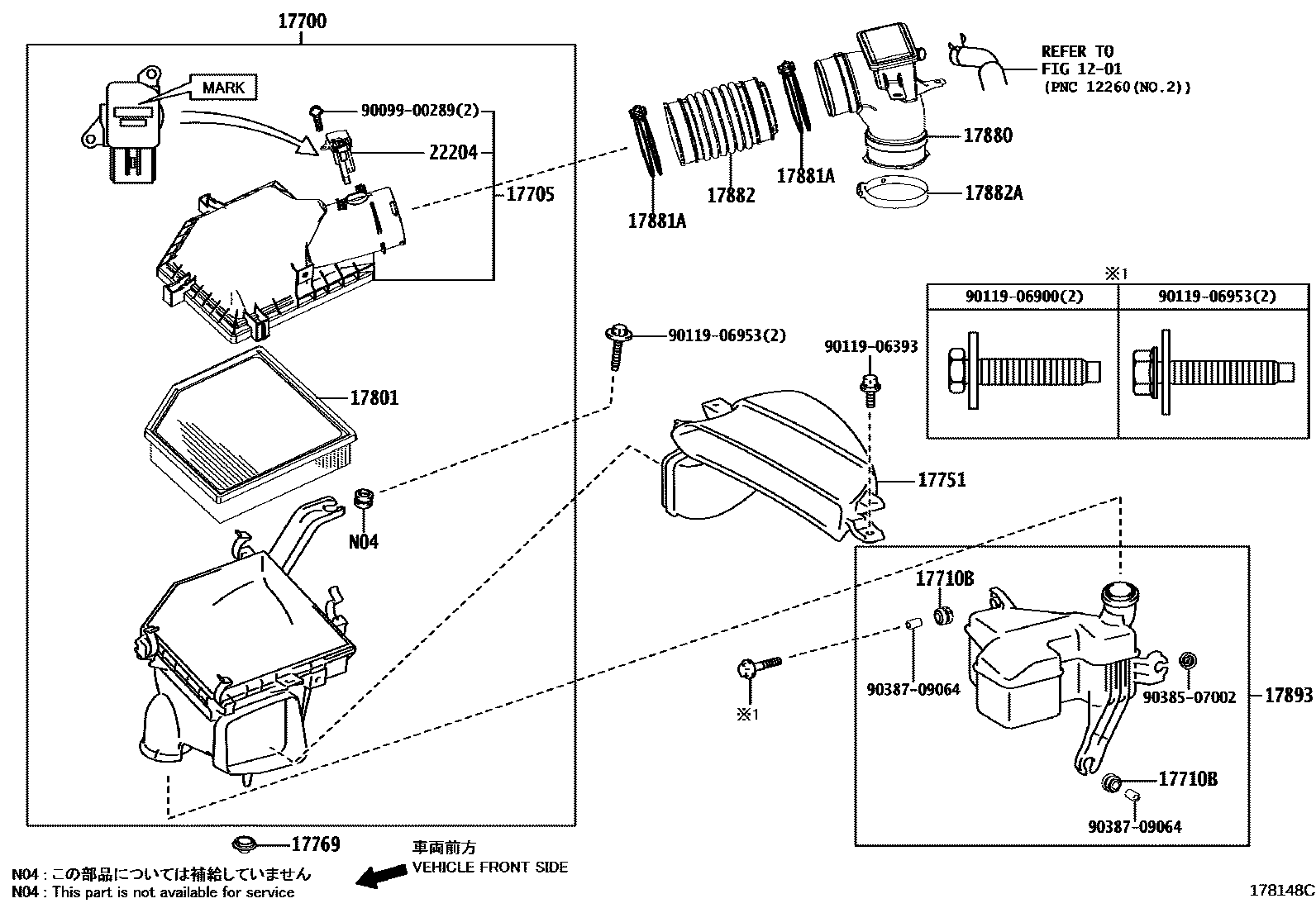

AIR CLEANER
1201
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17710BGROMMET
17751INLET, AIR CLEANER, NO.1
17769SUPPORT, AIR CLEANER
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17880HOSE ASSY, AIR CLEANER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
22204METER SUB-ASSY, INTAKE AIR FLOW
MARK 22204-0V020
MARK 22204-28010
9009900289
main90099-00289
9011906393
main90119-06393
9011906900
main90119-06900
9011906953
main90119-06953
9038507002
main90385-07002
9038709064
main90387-09064
20 parts on this diagram · 6 diagrams in section
