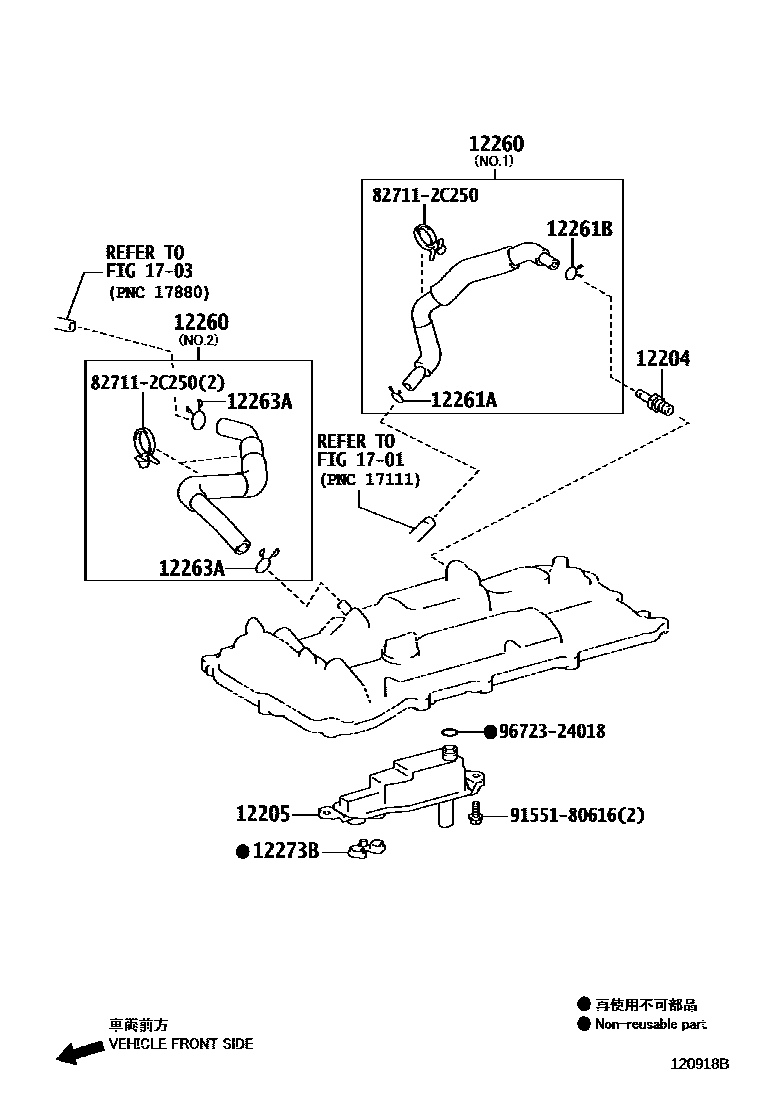

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.1
NO.1 & NO.2
NO.2
12261BCLIP OR CLAMP(FOR VENTILATION HOSE)
12263HOSE, VENTILATION, NO.3
12263ACLIP(FOR VENTILATION HOSE)
12273BGASKET, OIL SEPARATOR
1701
1703
827112C250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C250
9155180616
main91551-80616
9672324018
main96723-24018
14 parts on this diagram · 4 diagrams in section
