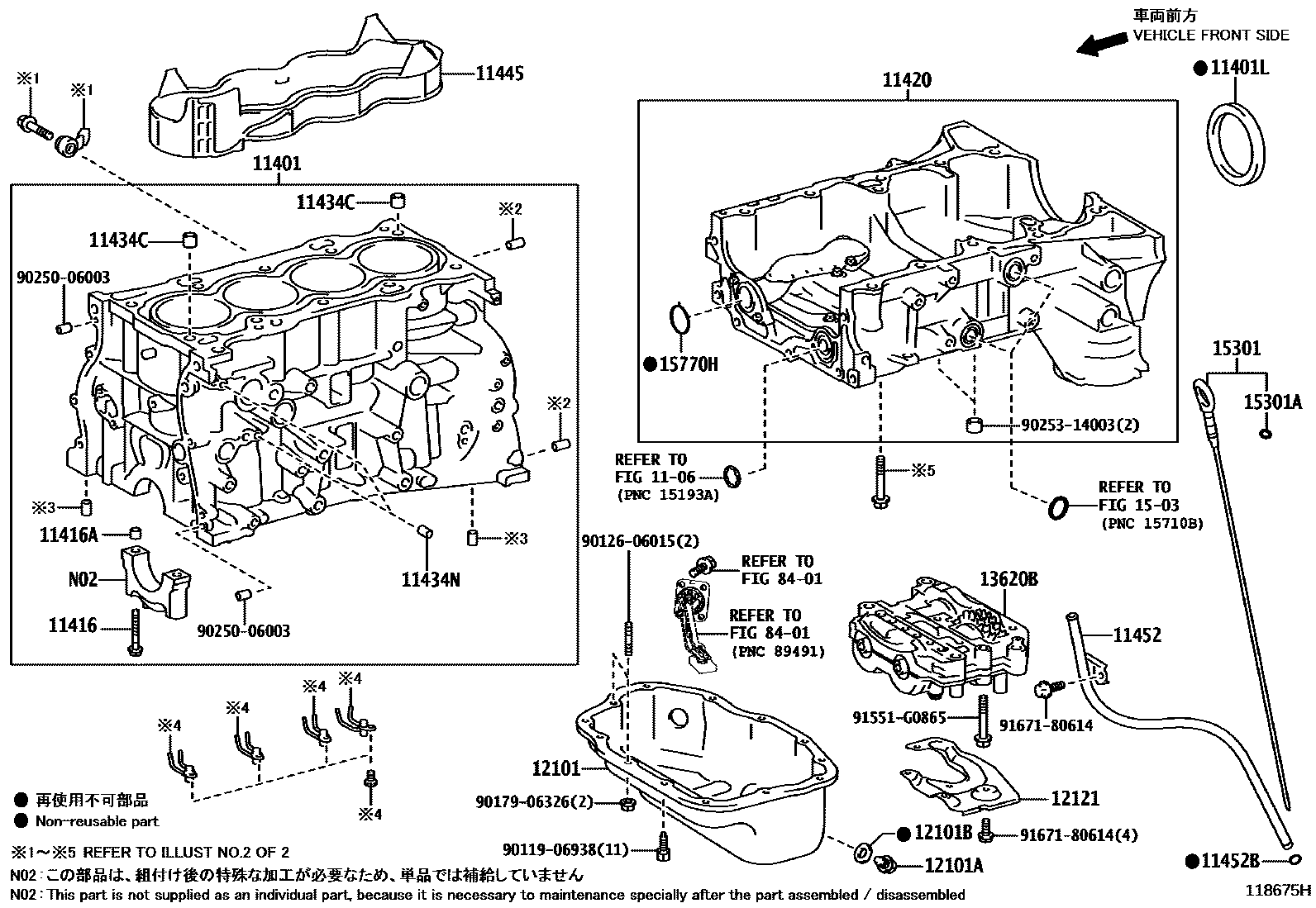

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

1106

11401BLOCK SUB-ASSY, CYLINDER

main11401-39775i2GRFSE..GRL10201201-201403

sub11401-39776

main11401-39776i2GR#..GRL10,15,GWL10201403-201411

sub11401-39777

sub13011-31143

main11401-39777i2GRFXE..GWL10201411-201911

sub11401-39778

main11401-39778i2GRFXE..GWL10201911-202007

main11401-80758i4GRFSE..GRL11201201-201211

sub11401-80810

main11401-80810i4GRFSE..GRL11201211-201403

sub11401-80817

main11401-80817i4GRFSE..GRL11201403-201510

main11401-80836i2GRFKS..GRL12201510-201607

sub11401-80842

main11401-80842i2GRFKS..GRL12201607-201911

sub11401-80863

main11401-80863i2GRFKS..GRL12201911-202007

main11410-39145i2ARFSE..AWL10201309-201312

sub11410-39146

main11410-39146i2ARFSE..AWL10201312-202007

main11410-39215i8ARFTS..ARL10201510-202007

11401LSEAL, ENGINE REAR OIL

main90311-89013i2ARFSE..AWL10201309-201408

sub90311-89015

main90311-89014i8ARFTS..ARL10201510-202007

main90311-89015i2ARFSE..AWL10201409-202007

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02153i2GR#..GRL12,GWL10201201-202007

main90910-02154i8ARFTS..ARL10201510-201708

main90910-02173i2ARFSE..AWL10201309-202007

main90910-02197i8ARFTS..ARL10201709-202007

11416APIN, RING(FOR CRANKSHAFT BEARING CAP SET)

main90253-13017i2ARFSE..AWL10201309-202007

main90253-14003i8ARFTS..ARL10201510-202007

11420CRANKCASE ASSY, STIFFENING

main11420-36030i2ARFSE..AWL10201309-202007

main11420-36070i8ARFTS..ARL10201510-202007

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120i2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10201201-202007

L=18,OD=8

main90253-15001i2ARFSE,8ARFTS..ARL10,AWL10201309-202007

L=14,OD=15

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i2ARFSE..AWL10201309-202007

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-31050i2GRFKS..GRL12201510-202007

main11445-36010i2ARFSE..AWL10201309-202007

main11445-36040i8ARFTS..ARL10201510-202007

11452GUIDE, OIL LEVEL GAGE

main11452-31040i2GR#..GRL12,GWL10201201-202007

main11452-31050i2GRFSE..GRL15201201-201510

main11452-36030i2ARFSE..AWL10201309-202007

main11452-36070i8ARFTS..ARL10201510-202007

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-12018i2GRFSE..GRL10201201-202007

main96723-19010i8ARFTS..ARL10201510-202007

main96741-19010i2ARFSE..AWL10201309-202007

12101PAN SUB-ASSY, OIL

main12101-31101i2GRFXE..GWL10201201-202007

main12101-31110i2GRFSE..GRL15201201-201510

main12101-31240i2GRFKS..GRL12201510-201611

sub12101-31241

main12101-31241i2GRFKS..GRL12201612-202007

main12101-36060i2ARFSE..AWL10201309-202007

main12101-36100i8ARFTS..ARL10201510-202007

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2GR#..GRL12,GWL10201201-202007

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i2GRFSE..GRL10..8FC;2GR#,4GRFSE..GRL11,15,GWL10201201-202007

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-31060i4GRFSE..GRL11201201-201510

main12121-31080i2GR#..GRL12,GWL10201201-202007

main12121-36040i2ARFSE,8ARFTS..ARL10,AWL10201309-202007

13620BBALANCER ASSY, ENGINE

main13620-36030i2ARFSE..AWL10201309-202007

1503

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31070i2GRFSE..GRL15201201-201510

main15301-31080i2GRFKS..GRL12201201-202007

main15301-31120i2GRFXE..GWL10201203-202007

main15301-36040i2ARFSE..AWL10201309-201312

sub15301-36041

main15301-36041i2ARFSE,8ARFTS..ARL10,AWL10201401-202007

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2GRFSE..GRL10201201-202007

15770HGASKET(FOR OIL PIPE)

main11496-36030i8ARFTS..ARL10201510-202007

main15157-36010i2ARFSE..AWL10201309-202007

8401

9011906938

main90119-06938

9012606015

main90126-06015

9017906326

main90179-06326

9025006003

main90250-06003

9025314003

main90253-14003

91551G0865

main91551-G0865

9167180614

main91671-80614
