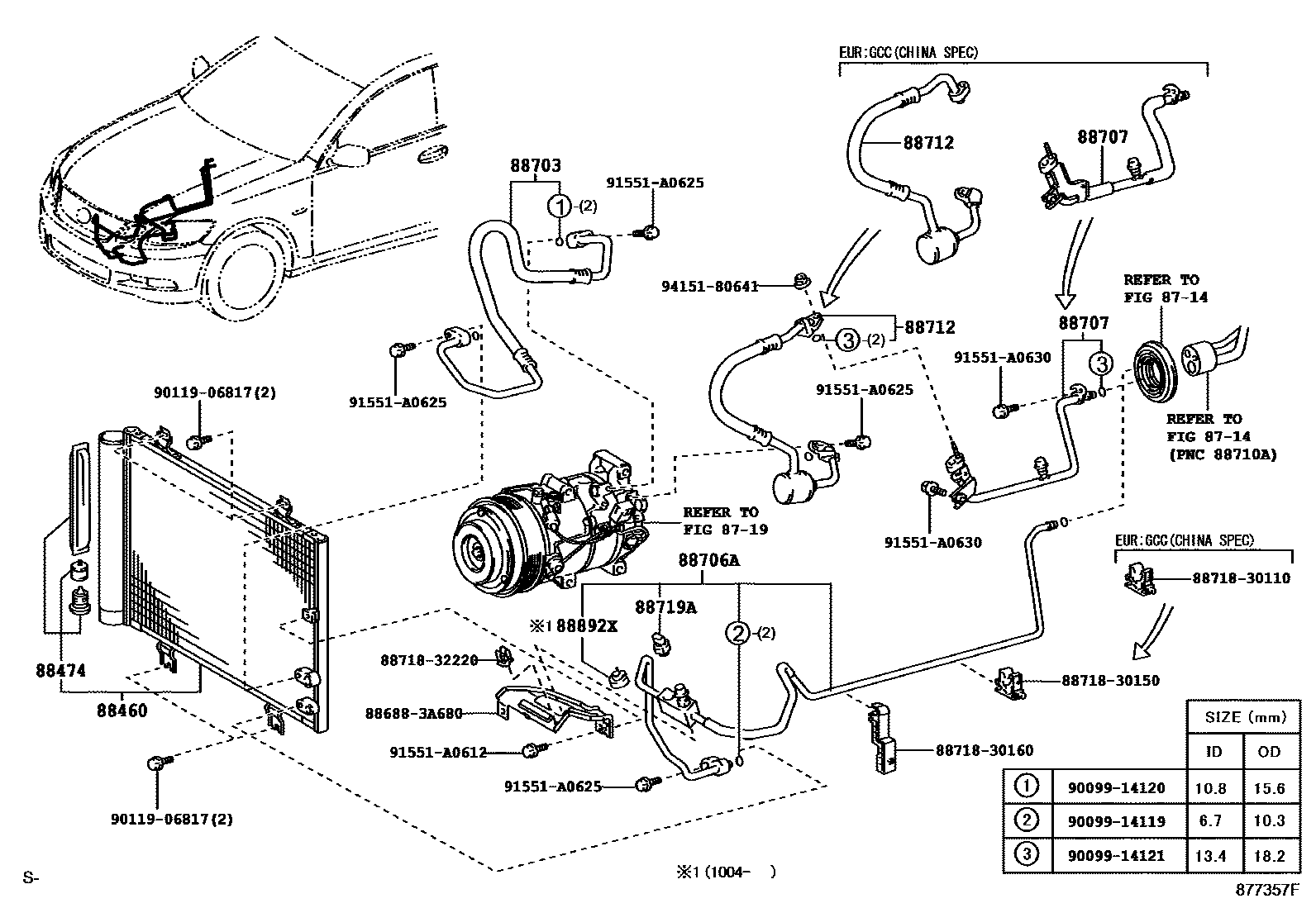

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

8714

8719

88460CONDENSER ASSY, COOLER

main88460-30871iGRS190..GCC200501-200709

CHINA SPEC

main88460-30881iGRS190,UZS190..GCC200709

main88460-30A90iURS190200709

88474DRYER, COOLER

main88474-17010iGRS190,UZS190200501-200709

main88474-47020iURS190200709

88703HOSE SUB-ASSY, DISCHARGE

main88711-3A590iUZS190..EUR200709-200809

main88711-3A600iGRS190..EUR,GEN200501-200709

CHINA SPEC

main88711-3A601supersedes 88711-3A620iGRS190..GCC200906

CHINA SPEC

main88711-3A610iUZS190..GCC200709-200809

main88711-3A640iURS190200709

88706ATUBE SUB-ASSY, LIQUID, A

main88706-3A430iGRS190,UZS190..RHD200501-200709

main88706-3A431iGRS190..RHD201007

main88706-3A440iUZS190..LHD200501-200709

main88706-3A450iGRS19#..LHD200709

main88706-3A480iURS190200709

88707PIPE SUB-ASSY, SUCTION

main88707-30690supersedes 88707-30800iGRS190,UZS190..RHD..EUR200501-200709

NEW ZEALAND SPEC

main88707-30750iUZS190..GCC200709-200809

main88707-30780iUZS190..LHD..EUR200501-200709

main88707-30790supersedes 88707-30760iGRS19#..LHD..EUR200709

main88707-30830supersedes 88707-53090iURS190..EUR200709

main88707-30740supersedes 88707-30760iGRS190..GCC200501-200709

CHINA SPEC

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-30160iGRS190..EUR,GEN200501-200709

CHINA SPEC

main88712-30170iUZS190..EUR200709-200809

main88712-30190iUZS190..GCC200501-200708

main88712-30191iUZS190..GCC200709-200809

main88712-30230supersedes 88712-53140iURS190..EUR200709

main88712-30350supersedes 88712-30201iGRS190..GCC200906

CHINA SPEC

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iGRS19#,URS190201004

main88719-40020iGRS19#,URS190,UZS190200709-201004

88892XCOVER, COOLER, NO.2

main88892-50120iGRS19#,URS190201004

886883A680BRACKET, COOLER DIAPHRAGM

main88688-3A680

8871830110PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30110

8871830150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30150

8871830160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30160

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906817

main90119-06817

91551A0612

main91551-A0612

91551A0625

main91551-A0625

91551A0630

main91551-A0630

9415180641

main94151-80641

23 parts on this diagram · 6 diagrams in section
