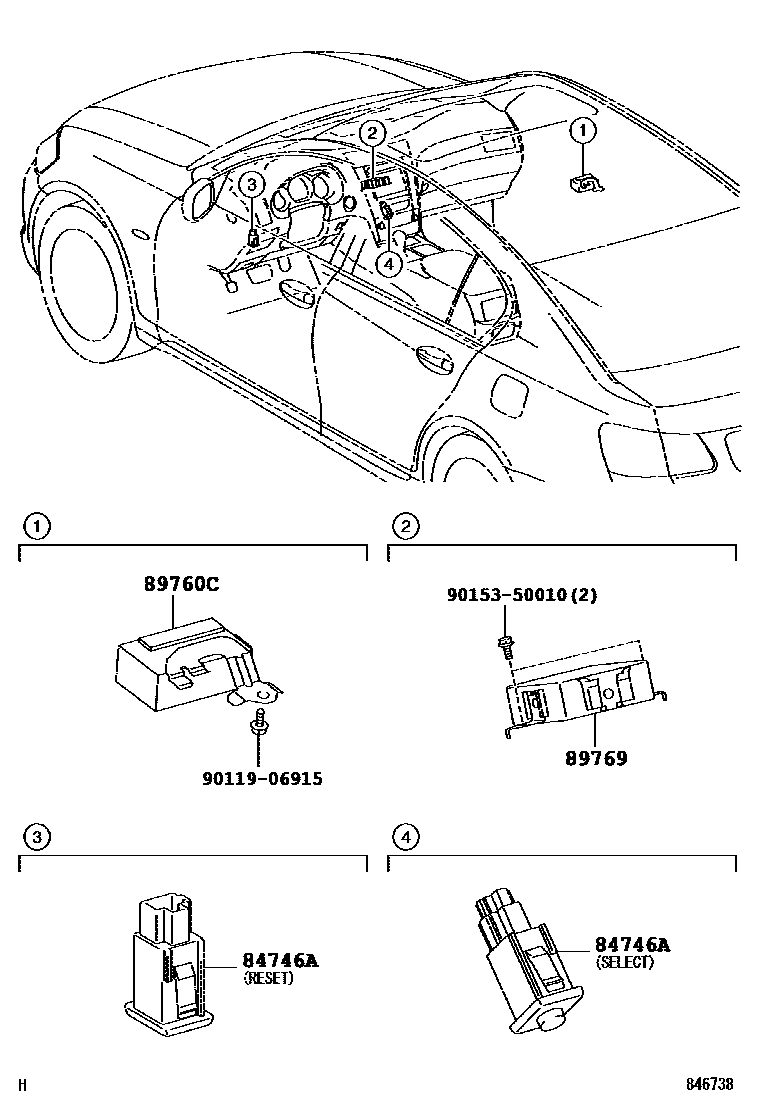

TIRE PRESSURE WARNING SYSTEM

0001 1 0002 1

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

main84746-24010iGRS190,UZS190..RHD..EUR200501-200709

NEW ZEALAND SPEC,SELECT

sub84746-60020

main84746-50010iURS190..RHD200709-201007

RESET

89760CRECEIVER ASSY, TIRE PRESSURE MONITOR

main89760-30020iGRS190,UZS190..EUR200501-200612

main89760-30021iGRS190,UZS190..EUR200701-200709

main89760-30050iURS190..RHD200709-201007

main89760-30040iURS190..LHD..EUR200709

TAIWAN SPEC

89769COMPUTER, TIRE PRESSURE MONITOR

main89769-30010iGRS190,UZS190..EUR200501-200707

main89769-30011iGRS190..EUR;URS190..LHD..EUR200709

main89769-30041iGRS196200907

main89769-30040iGRS190,UZS190..LHD..EUR200607-200709

TURKEY SPEC&SPARE TIRE-GROUND TIRE(ALUMI)

9011906915

main90119-06915

9015350010

main90153-50010

5 parts on this diagram · 2 diagrams in section
