SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM 0008 1ENGINE ROOM RELAY BLOCK 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1ENGINE ROOM RELAY BLOCK 0012 1COWL 0013 1COWL 0014 1INSTRUMENT PANEL 0015 1INSTRUMENT PANEL 0016 1IGNITION & COMBINATION SWITCH0017 1IGNITION & COMBINATION SWITCH0018 1SEAT 0019 1DOOR,ROOF,FLOOR & LUGGAGE 0020 1DOOR,ROOF,FLOOR & LUGGAGE

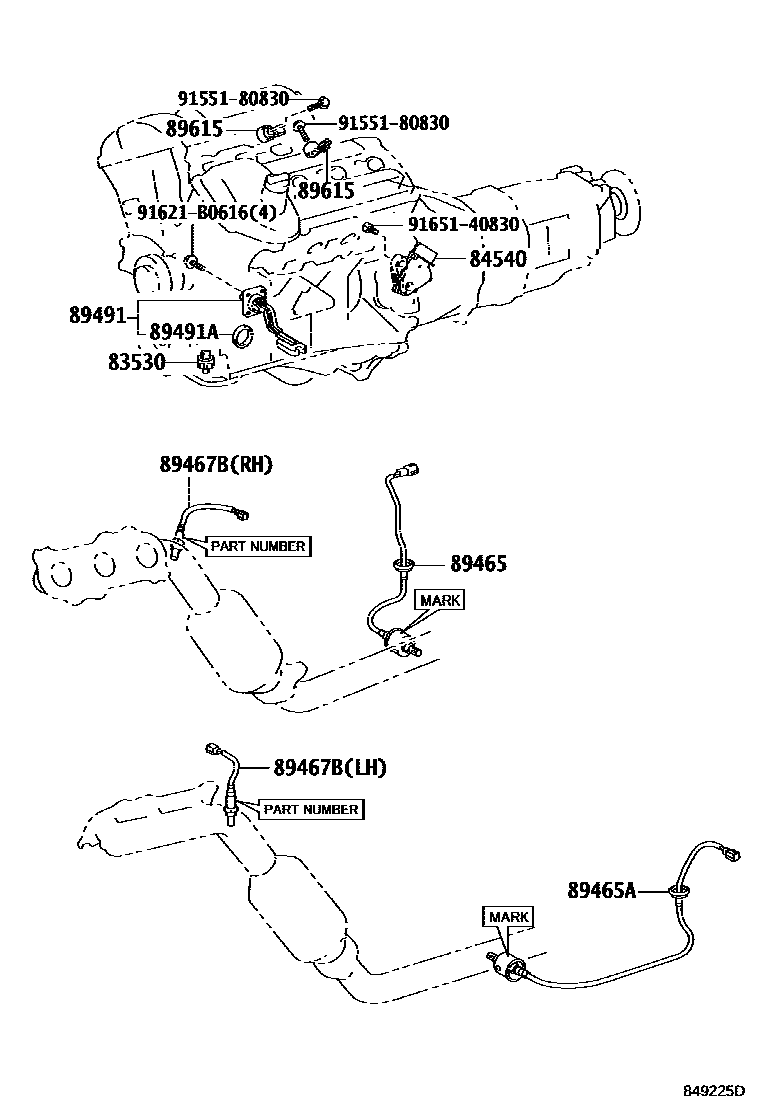

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGRS190,UZS190200501-201104

main83530-28020iURS190201104

DENSO

main83530-60020iURS190201104

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-30320iUZS190;GRS190..GCC,GEN200501-201112

main84540-71010iGRS190..EUR200501-201112

89465SENSOR, OXYGEN

main89465-30710iGRS190..EUR200501-200603

MARK=89465-30710

main89465-30730iGRS196200907-201112

main89465-30790iURS190200709-201112

LH

main89465-30800iURS190200709-201112

RH

main89465-30810iGRS190..GCC,GEN200501-200509

MARK=89465-30810

main89465-30820iGRS190..EUR200603-200709

MARK=89465-30820

main89465-30820iGRS190..EUR200709-201112

main89465-30850iGRS190..GCC,GEN200709-201112

main89465-30850iGRS190..GCC,GEN200509-200709

MARK=89465-30850

main89465-50120iUZS190200501-200809

LH

main89465-50130iUZS190200501-200809

RH

89465ASENSOR, OXYGEN NO.2

main89465-30710iGRS190..EUR200501-200603

MARK=89465-30710

main89465-30740iUZS190200501-200809

main89465-30810iGRS190..GCC,GEN200501-200509

MARK=89465-30810

main89465-30820iGRS190..EUR200603-200709

MARK=89465-30820

main89465-30820iGRS190..EUR200709-201112

main89465-30840iGRS196200907-201112

main89465-30850iGRS190..GCC,GEN200709-201112

main89465-30850iGRS190..GCC,GEN200509-200709

MARK=89465-30850

main89465-30880iURS190..GCC200809-201112

LH

main89465-30890iURS190..GCC200809-201112

RH

main89465-30730iGRS190..GEN201007-201112

HONG KONG SPEC

89467BSENSOR, AIR FUEL RATIO

main89467-30010iGRS190200501-200709

RH & LH

main89467-30010iGRS190..EUR200709-200802

RH&LH,W/PART NUMBER

main89467-30030iGRS196;GRS190..GCC,GEN200709-201112

RH

main89467-30030iGRS190..EUR200802-201112

LH,W/PART NUMBER

main89467-30040iGRS196;GRS190..GCC,GEN200709-201112

RH

main89467-30040iGRS190..EUR200802-201112

RH,W/PART NUMBER

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGRS190200501-201108

sub89491-30061

main89491-30061iGRS190201109-201112

main89491-30070iGRS196200907-201108

sub89491-30071

main89491-30071iGRS196201109-201112

main89491-50030iUZS190200501-200809

main89491-50041iURS190200709-201112

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGRS19#,URS190200501-200709

main90430-27001iUZS190200501-200809

89615SENSOR, KNOCK CONTROL

main89615-20090iGRS19#,UZS190200501-200709

9155180830

main91551-80830

91621B0616

main91621-B0616

9165140830

main91651-40830

11 parts on this diagram · 20 diagrams in section
