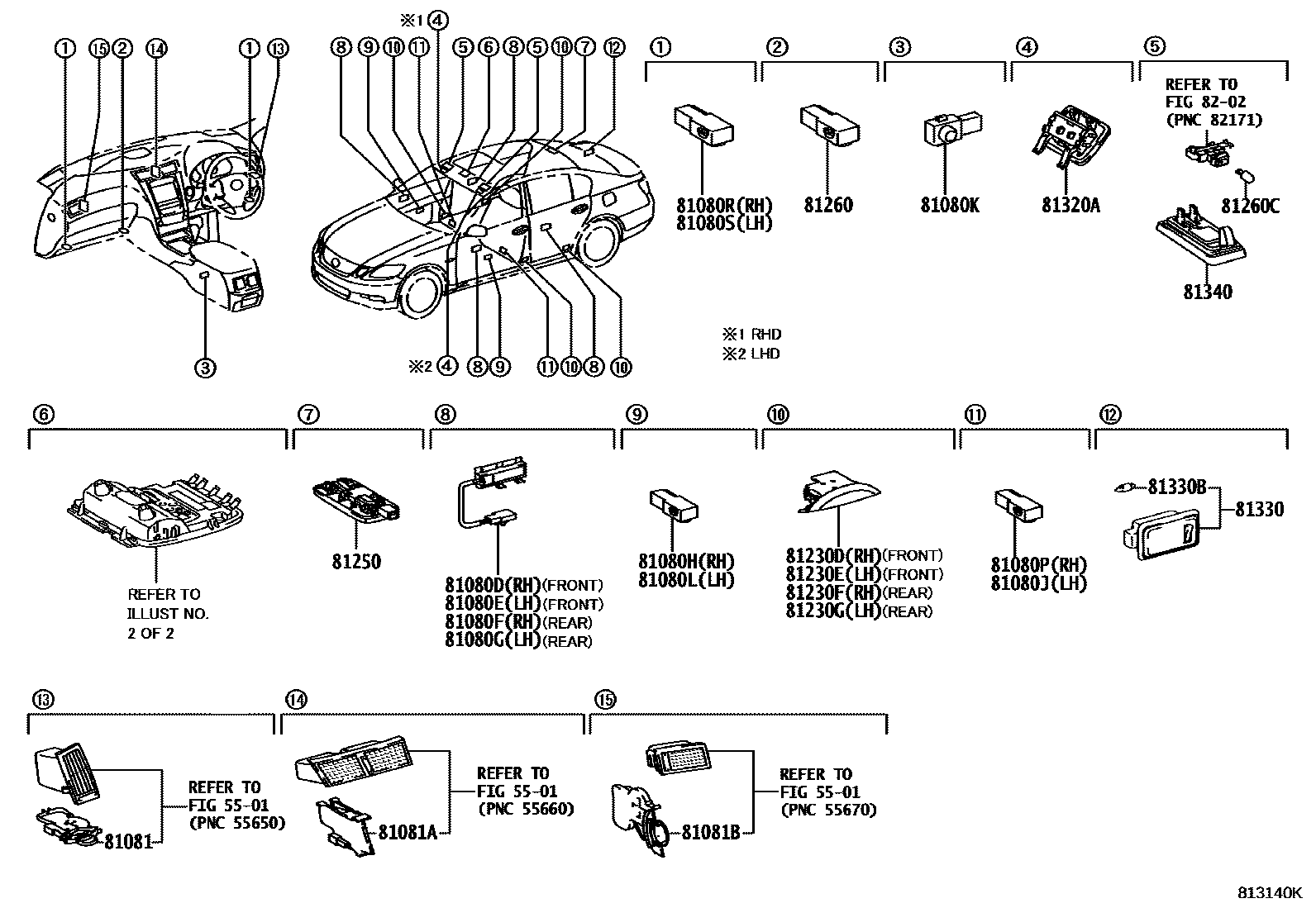

INTERIOR LAMP
5501
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH
81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080KLAMP ASSY, CONSOLE BOX ILLUMINATION
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81081LAMP SUB-ASSY, INTERIOR ILLUMINATION
81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2
81081BLAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.3
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
81230FLAMP ASSY, REAR DOOR COURTESY, RH
81230GLAMP ASSY, REAR DOOR COURTESY, LH
81250LAMP ASSY, ROOM, NO.2
IVORY,TRIM0#
GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,2#
IVORY,TRIM0#
IVORY,TRIM0#
LT.GRAY,TRIM1#,2#
81260LAMP ASSY, GLOVE BOX
81260CBULB(FOR MAP LAMP)
12V 8W
81320ALAMP ASSY, STEERING SPOT
IVORY,TRIM0#
IVORY,TRIM0#
GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,20,22,24,25,26
LT.GRAY,TRIM1#,2#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
HONG KONG SPEC&MOON ROOF-WITH,IVORY,TRIM0#
HONG KONG SPEC,IVORY,TRIM0#
UKRAINE SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
UKRAINE SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
CROATIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
CROATIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
UKRAINE SPEC&MOON ROOF-WITH,IVORY,TRIM0#
CROATIA SPEC&MOON ROOF-WITH,IVORY,TRIM0#
CROATIA SPEC,IVORY,TRIM0#
UKRAINE SPEC,IVORY,TRIM0#
INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
HONG KONG SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
HONG KONG SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
IVORY,TRIM0#
TAIWAN SPEC,IVORY,TRIM0#
TAIWAN SPEC&MOON ROOF-WITH,IVORY,TRIM0#
TAIWAN SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
TAIWAN SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
RUSSIA SPEC,IVORY,TRIM0#
RUSSIA SPEC&MOON ROOF-WITH,IVORY,TRIM0#
RUSSIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
RUSSIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
ISRAEL SPEC,IVORY,TRIM0#
ISRAEL SPEC&MOON ROOF-WITH,IVORY,TRIM0#
ISRAEL SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
ISRAEL SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
CHILE SPEC,IVORY,TRIM0#
CHILE SPEC&MOON ROOF-WITH,IVORY,TRIM0#
CHILE SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
CHILE SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
CHINA SPEC,IVORY,TRIM0#
CHINA SPEC&MOON ROOF-WITH,IVORY,TRIM0#
CHINA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
CHINA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
INDONESIA SPEC,IVORY,TRIM0#
INDONESIA SPEC&MOON ROOF-WITH,IVORY,TRIM0#
INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),IVORY,TRIM0#
MOON ROOF-WITH,IVORY,TRIM0#
IVORY,TRIM0#
CHINA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
INDONESIA SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
INDONESIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
INDONESIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,2#
CHINA SPEC,LT.GRAY,TRIM1#,2#
CHINA SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
CHINA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
INDONESIA SPEC,LT.GRAY,TRIM1#,2#
CHILE SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
CHILE SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
CHILE SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
CHILE SPEC,LT.GRAY,TRIM1#,2#
ISRAEL SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
ISRAEL SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
ISRAEL SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
ISRAEL SPEC,LT.GRAY,TRIM1#,2#
RUSSIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
RUSSIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
RUSSIA SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
RUSSIA SPEC,LT.GRAY,TRIM1#,2#
TAIWAN SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
TAIWAN SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
TAIWAN SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
TAIWAN SPEC,LT.GRAY,TRIM1#,2#
HONG KONG SPEC,LT.GRAY,TRIM1#,2#
HONG KONG SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
HONG KONG SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
HONG KONG SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
UKRAINE SPEC,LT.GRAY,TRIM1#,2#
CROATIA SPEC,LT.GRAY,TRIM1#,2#
CROATIA SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
UKRAINE SPEC&MOON ROOF-WITH,LT.GRAY,TRIM1#,2#
CROATIA SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
CROATIA SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
UKRAINE SPEC&MOON ROOF-WITH&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
UKRAINE SPEC&INTERMITTENT WIPER-AUTO(RAIN SENSOR),LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,20,22,24,25,26
GRAY,TRIM1#,2#
8202
27 parts on this diagram · 2 diagrams in section
