FUEL TANK & TUBE

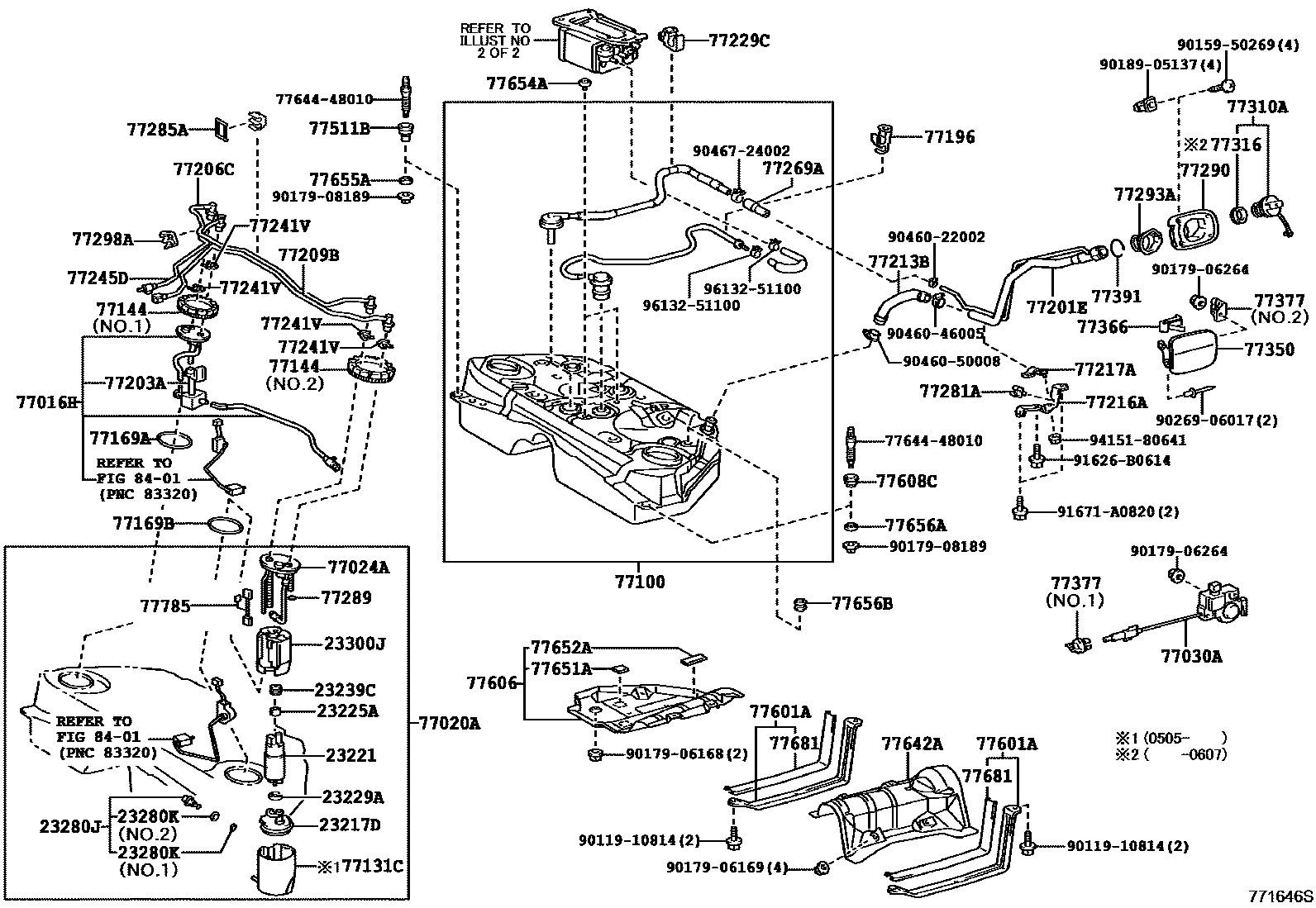

Parts diagram
23217DFILTER, FUEL PUMP
main23217-31020i200501-200608
main23217-31100i200608-200709
23221PUMP, FUEL
main23220-31170i200501-200709
main23220-31171i200907
main23220-38040i200709-200712
main23220-38041i200801
main23221-31090i200709-200911
main23221-31340i200911
sub23220-31340
main23221-50150i200501-200709
sub23221-31180
main23220-31200i200506-200709
CHINA SPEC
main23220-31201i200907
CHINA SPEC
main23220-38050i200809-201007
CHINA SPEC
main23220-50190i200506-200609
CHINA SPEC
sub23220-50120
main23220-50220i200609-200709
CHINA SPEC
23225ASPACER, FUEL PUMP
main23225-21010i200501-200709
main23225-23010i200709-201112
23229ACLIP(FOR FUEL PUMP FILTER)
main23229-16010i200709
23239CSEAL, FUEL PUMP FILTER
main23239-21010i200709
23280JREGULATOR ASSY, FUEL PRESSURE
main23280-21010i200709
main23280-31020i200501-200709
main23280-38020i200709
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
main90301-04013×2i200709
NO.1
main90301-08020i200501-200709
NO.3
main90301-15024i200709
NO.2
23300JFILTER ASSY, FUEL
main23300-31110i200501-200608
main23300-31140i200608-200709
77016HTUBE SUB-ASSY, FUEL RETURN VENT
main77016-30040i200501-200608
main77016-30050i200501-200609
main77016-30070i200709
main77016-30080i200709
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
main77020-30151i200501-200707
main77020-30152i200709-200906
main77020-30153i200907
main77020-30170i200501-200608
sub77020-30171
main77020-30180i200501-200609
main77020-30290i200608-200707
main77020-30291i200709-200910
main77020-30292i200911
main77020-30310i200609-200707
main77020-30311i200709-200809
main77020-30321i200709-200809
main77020-30341i200709-200712
main77020-30342i200801
main77020-30360i200809
main77020-30190i200506-200609
CHINA SPEC
main77020-30200i200506-200707
CHINA SPEC
main77020-30201i200708-200709
CHINA SPEC
main77020-30202i200907
CHINA SPEC
main77020-30320i200609-200707
CHINA SPEC
main77020-30370i200809-201007
CHINA SPEC
77024APLATE SUB-ASSY, FUEL SUCTION
main77024-30090i200501-200608
main77024-30110i200709
main77024-30120i200501-200703
main77024-30121i200703-200709
main77024-30122i200907
main77024-30130i200709
main77024-30140i200809
77030ALOCK ASSY, FUEL LID W/MOTOR
main77030-30140i200501-200509
main77030-30160i200509-200709
77100TANK ASSY, FUEL
main77001-30560i200501-200610
main77001-30561i200709
77131CSUB-TANK, FUEL, NO.1
main77131-30050i200505-200608
main77131-30060i200505-200703
main77131-30061i200703-200707
main77131-30062i200708-200709
main77131-30063i201107
main77131-30070i200609-200707
main77131-30071i200709
77144RETAINER, FUEL PUMP GAUGE
main77144-30020i200501-200709
NO.1
main77144-47020i200501-200709
NO.2
77169AGASKET, FUEL SUCTION TUBE SET
main77169-30010i200501-200709
77169BGASKET, FUEL SUCTION TUBE SET, NO.1
main77169-47030i200709
77196CLAMP, EVAPORATION VENT TUBE, NO.1
main77196-30050i200501-200709
77201EPIPE SUB-ASSY, FUEL TANK FILLER
main77201-30450i200501-200709
77203ATUBE SUB-ASSY, FUEL SUCTION
main77203-30180i200501-200608
77206CTUBE SUB-ASSY, FUEL MAIN, NO.2
main77206-30030i200501-200608
77209BTUBE SUB-ASSY, FUEL PUMP
main77209-30100i200501-200709
main77209-30110i200501-200609
main77209-30180i200608-200709
main77209-30200i200709-200809
main77209-30220i200907
main77209-30250i200709
77213BHOSE, FUEL TANK TO FILLER PIPE
main77213-30191i200709
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
main77216-30050i200501-200709
sub77216-30051
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
main77217-30130i200501-200709
sub77217-30131
77229CCLAMP, BREATHER TUBE
main77229-30050i200501-200709
77241VCLIP, TUBE JOINT
main77241-33011×2i201002
main77241-60320i200609-200709
77245DTUBE, FUEL TANK RETURN VENT
main77245-30170i200709
main77245-30220i200709
77269AHOSE, FUEL TANK BREATHER
main77269-30060i200501-200709
77281ACLAMP, FUEL FILLER PIPE
main77281-50020i200501-200709
77285ASUPPORT, FUEL RETURN AND MAIN TUBE
main77285-30230i200709
77289HOLDER, FUEL TANK PIPE SETTING
main77289-52090i200709
77290SHIELD ASSY, FUEL TANK FILLER PIPE
main77290-30110i200501-200709
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
main77293-30070i200501-200709
77298ACLAMP, FUEL TUBE, NO.4
main77298-12010i200501-200609
main77298-30180i200608-200709
main77298-30190i200609-200709
77310ACAP ASSY, FUEL TANK
main77300-50020i200501-200607
sub77300-28010
main77300-52030i200607-200709
77316GASKET, FUEL TANK CAP
main77316-16010i200501-200607
main77316-52040i200709-201112
77350LID ASSY, FUEL FILLER OPENING
main77350-30380i200501-200709
77366SPRING, FUEL FILLER OPENING LID HINGE
main77360-30070i200709
main77360-30080i200501-200602
77377RETAINER, FUEL FILLER OPENING LID LOCK
main77377-12050i200501-200709
NO.1
main77377-30050i200501-200709
NO.2
77391RING, FUEL INLET BOX
main77391-12020i200709
77511BBRACKET, FUEL TANK
main77511-48030i200501-200709
77601ABAND SUB-ASSY, FUEL TANK, NO.1
main77601-30170×2i200501-200709
main77601-30171×2i200911
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
main77606-30190i200709
77608CCUSHION SET, FUEL TANK
main77608-48010i200709
77642APROTECTOR, FUEL TANK, NO.2
main77642-30030i200501-200709
77651ACUSHION, FUEL TANK, NO.1
main77651-12070×2i200501-200709
main77651-20090×2i201004
77652ACUSHION, FUEL TANK, NO.2
main77653-26040i200501-200709
77654CUSHION, FUEL TANK, NO.2
main77652-30090i200911
77654ACUSHION, FUEL TANK, NO.4
main77654-30020×2i200501-200709
77655ACUSHION, FUEL TANK, NO.5
main77655-30080i200709
77656ACUSHION, FUEL TANK, NO.4
main77655-48010i200501-200709
77656BCUSHION, FUEL TANK, NO.6
main77656-30030×4i200501-200709
77681SEAT, FUEL TANK BAND, RH
main77681-30010×2i200501-200709
77785HARNESS, FUEL PUMP
main77785-30020i200709-201112
sub77785-30021
main77785-30040i200501-200709
sub77785-30041
main77785-48020i200501-200709
8401
7764448010BOLT, FUEL TANK
main77644-48010
9011910814
main90119-10814
9015950269
main90159-50269
9017906168
main90179-06168
9017906169
main90179-06169
9017906264
main90179-06264
9017908189
main90179-08189
9018905137
main90189-05137
9026906017
main90269-06017
9046022002
main90460-22002
9046046005
main90460-46005
9046050008
main90460-50008
9046724002
main90467-24002
91626B0614
main91626-B0614
91671A0820
main91671-A0820
9415180641
main94151-80641
9613251100
main96132-51100

73 parts on this diagram · 14 diagrams in section
