EPC Data

REAR SEAT & SEAT TRACK

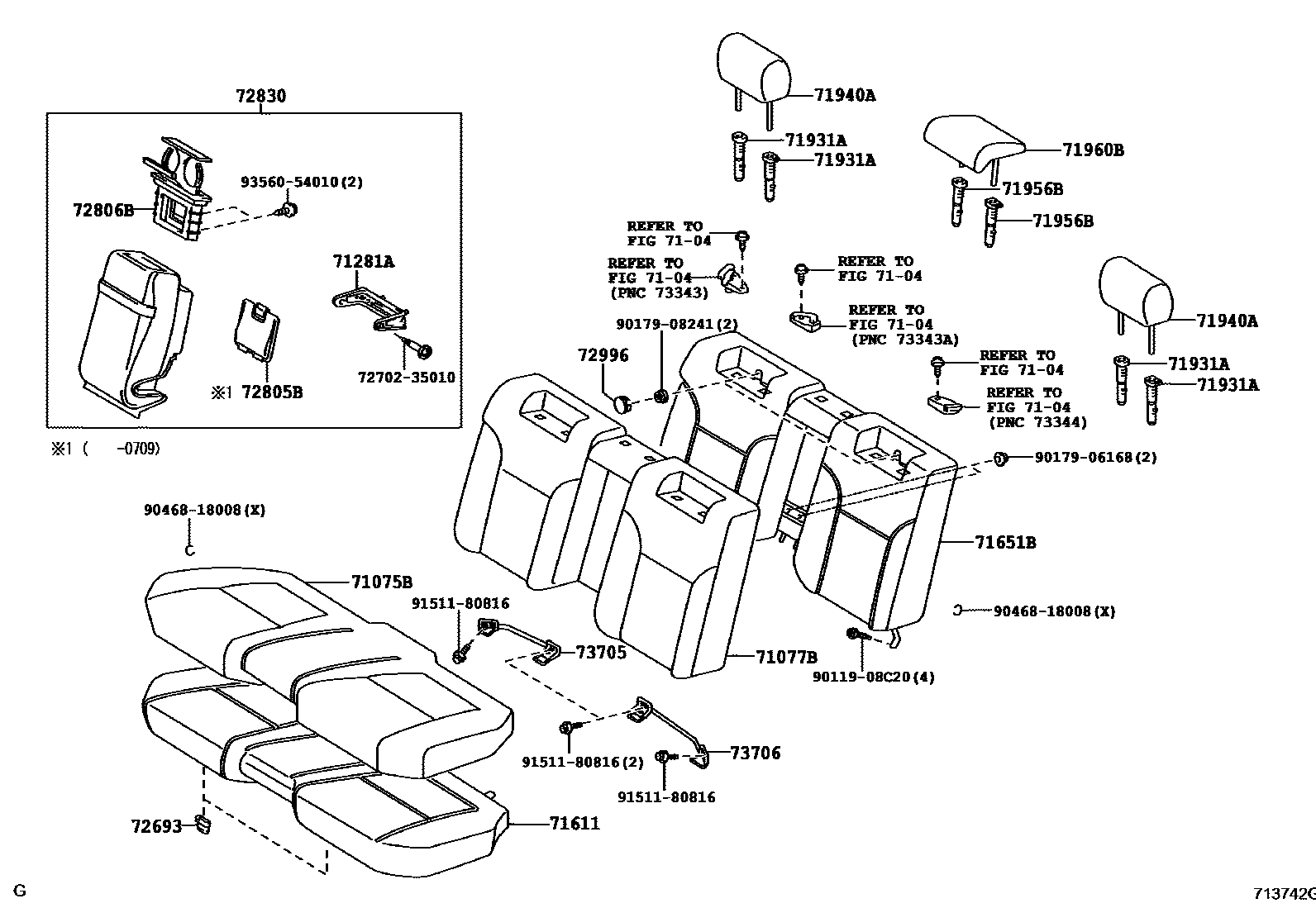

Parts diagram
7104
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-30A90-C0i200501-200709
BLACK,TRIM2#
sub71075-30A91
main71075-30C41-C2i201007-201105
BLACK,TRIM2#
sub71075-30C42
main71075-30C50-A0i200709-200908
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
main71075-30C50-B0i200709-200908
LT.GRAY,TRIM1#
main71075-30C50-C0supersedes 71075-30C41-C3i200709-200908
BLACK,TRIM2#
main71075-30C51-A3supersedes 71075-30C41-A1i200909-201007
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main71075-30C51-A4supersedes 71075-30C41-A2i201007-201105
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main71075-30C51-A5supersedes 71075-30C41-A3i201105-201112
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main71075-30C51-B2supersedes 71075-30C41-B1i200909-201007
LT.GRAY,TRIM1#
main71075-30C51-B3supersedes 71075-30C41-B2i201007-201105
LT.GRAY,TRIM1#
main71075-30C51-B4supersedes 71075-30C41-B3i201105-201112
LT.GRAY,TRIM1#
main71075-30C51-C2supersedes 71075-30C41-C1i200909-201007
BLACK,TRIM2#
main71075-30C51-C3i201007-201105
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71075-30C51-C4i201105-201112
BLACK,TRIM2#
main71075-30B00-A0i200501-200709
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
main71075-30B00-B0i200501-200709
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW GRAY,TRIM1#
main71075-30B00-C0i200501-200709
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM28
main71075-30B00-E0i200501-200709
SEAT COVER MATERIAL-LEATHER,EBONY,TRIM28
main71075-30B70-C0i200501-200709
CHINA SPEC,BLACK,TRIM2#
sub71075-30B71
main71075-30B80-A0i200501-200709
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
sub71075-30B81
main71075-30B80-B0i200501-200709
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW GRAY,TRIM1#
sub71075-30B81
main71075-30B80-C0i200501-200709
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71075-30B81
main71075-30C20-A2i200709-200908
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main71075-30C20-B1i200709-200908
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LIGHT GRAY,TRIM1#
main71075-30C20-C1i200709-200908
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
main71075-30C21-A5i200909-201007
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main71075-30C21-A7i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main71075-30C21-A9i201105-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main71075-30C21-B2i200909-201007
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
main71075-30C21-B3i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
main71075-30C21-B4i201105-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
main71075-30C21-C4i200909-201007
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
main71075-30C21-C5i200909-201007
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM24,25
main71075-30C21-C6i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
main71075-30C21-C7i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM24,25
main71075-30C21-C8i201105-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
main71075-30C21-C9i201105-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM24,25
main71075-30C30-A2supersedes 71075-30C70-A0i200709-200809
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71075-30E30
main71075-30C30-B1supersedes 71075-30C70-B0i200709-200809
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LIGHT GRAY,TRIM1#
sub71075-30E30
main71075-30C30-C1supersedes 71075-30C70-C0i200709-200809
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71075-30E30
main71075-30C31-A5i200909-201006
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main71075-30C31-B2i200909-201006
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
main71075-30C31-C3i200909-201006
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
main71075-30C31-C4i200909-201006
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM24,25
main71075-30C32-A7i201007-201105
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main71075-30C32-A9i201105-201112
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main71075-30C32-B3i201007-201105
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LIGHT GRAY,TRIM1#
main71075-30C32-B4i201105-201112
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
main71075-30C32-C5i201007-201105
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
main71075-30C32-C6i201007-201105
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM24,25
main71075-30C32-C7i201105-201112
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
main71075-30C32-C8i201105-201112
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM24,25
main71075-30C51-E3i201007-201105
SEAT COVER MATERIAL-LEATHER,CHOCOLATE BROWN / DK.ORAN,TRIM26
main71075-30C51-E4i201105-201109
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),CHOCOLATE BROWN/DK.ORANGE,TRIM26
main71075-30C60-A0i200709-200809
CHINA SPEC,IVORY,TRIM0#
sub71075-30C61
main71075-30C60-B0i200709-200809
CHINA SPEC,LT.GRAY,TRIM1#
sub71075-30C61
main71075-30C60-C0i200709-200809
CHINA SPEC,BLACK,TRIM2#
sub71075-30C61
main71075-30D30-C0i200904-200908
THAILAND SPEC,BRUNEI SPEC&RED X BLACK INTERIOR PACKAGE,BLACK/RED,TRIM20
main71075-30E00-C0i200904-200908
CHINA SPEC&RED X BLACK INTERIOR PACKAGE,BLACK/RED,TRIM20
sub71075-30E01
main71075-30F40-E0i201007-201105
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),CHOCOLATE BROWN / DK.ORAN,TRIM2#
main71075-30F40-E1i201105-201109
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),CHOCOLATE BROWN/DK.ORANGE,TRIM2#
71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)
main71077-30C81-C3i201007-201112
BLACK,TRIM2#
sub71077-30P60
main71077-30D00-A0supersedes 71077-30C80-A0i200709-200908
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
main71077-30D00-B0supersedes 71077-30C80-B0i200709-200908
LT.GRAY,TRIM1#
main71077-30D00-C0supersedes 71077-30C80-C0i200709-200908
BLACK,TRIM2#
main71077-30D01-A4supersedes 71077-30C81-A2i200909-201007
SEAT COVER MATERIAL-LEATHER,IVORY/MD.NEUTRAL BONE,TRIM0#
main71077-30D01-A5supersedes 71077-30C81-A3i201007-201112
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main71077-30D01-B3supersedes 71077-30C81-B2i200909-201007
LT.GRAY/STONE,TRIM1#
main71077-30D01-B4supersedes 71077-30C81-B3i201007-201112
LT.GRAY,TRIM1#
main71077-30D01-C3supersedes 71077-30C81-C2i200909-201007
BLACK/MD.GRAY,TRIM2#
main71077-30D01-C4i201007-201112
BLACK,TRIM2#
main71077-30B00-A0i200501-200503
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
main71077-30B00-A2i200503-200709
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
main71077-30B00-B0i200501-200503
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW GRAY,TRIM1#
main71077-30B00-B2i200503-200709
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW GRAY,TRIM1#
main71077-30B00-C0i200501-200503
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71077-30B00-C2supersedes 71077-30A90-C2i200503-200709
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main71077-30B00-E0i200501-200503
SEAT COVER MATERIAL-LEATHER,EBONY,TRIM28
main71077-30C00-C0i200501-200709
CHINA SPEC,BLACK,TRIM2#
sub71077-30C01
main71077-30C10-A0i200501-200709
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
sub71077-30C11
main71077-30C10-B0i200501-200709
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW GRAY,TRIM1#
sub71077-30C11
main71077-30C10-C0i200501-200709
CHINA SPEC&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71077-30C11
main71077-30C60-A2i200709-200908
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main71077-30C60-B1i200907-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LIGHT GRAY,TRIM1#
main71077-30C60-C1i200907-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM2#
main71077-30C61-A7i200909-201007
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY/MD.NEUTRAL BONE,TRIM0#
main71077-30C61-A9i201007-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY/MD.NEUTRAL BONE,TRIM0#
main71077-30C61-B3i200909-201007
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY/STONE,TRIM1#
main71077-30C61-B4i201007-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY/STON,TRIM1#
main71077-30C61-C6i200909-201007
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/MD.GRAY,TRIM20
main71077-30C61-C7i200909-201007
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/MD.GRAY/RED NO.55,TRIM24,25
main71077-30C61-C8i201007-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/MD.GRAY,TRIM20
main71077-30C61-C9i201007-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/MD.GRAY/RED NO.55,TRIM24,25
main71077-30C70-A2supersedes 71077-30D10-A0i200709-200809
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71077-30E60
main71077-30C70-B1supersedes 71077-30D10-B0i200709-200809
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LIGHT GRAY,TRIM1#
sub71077-30E60
main71077-30C70-C1supersedes 71077-30D10-C0i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71077-30E60
main71077-30C71-A7i200909-201006
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY/MD.NEUTRAL BONE,TRIM0#
main71077-30C71-B3i200909-201006
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY/STONE,TRIM1#
main71077-30C71-C5i200909-201006
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/MD.GRAY,TRIM20
main71077-30C71-C6i200909-201006
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/MD.GRAY/RED NO.55,TRIM24,25
main71077-30C72-A9i201007-201112
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main71077-30C72-B4i201007-201112
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LIGHT GRAY,TRIM1#
main71077-30C72-C7i201007-201112
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
main71077-30C72-C8i201007-201112
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM24,25
main71077-30C90-A0i200709-200809
CHINA SPEC,IVORY,TRIM0#
sub71077-30C91
main71077-30C90-B0i200709-200809
CHINA SPEC,LT.GRAY,TRIM1#
sub71077-30C91
main71077-30C90-C0i200709-200809
CHINA SPEC,BLACK,TRIM2#
sub71077-30C91
main71077-30D01-E4i201007-201109
SEAT COVER MATERIAL-LEATHER,CHOCOLATE BROWN / DK.ORAN,TRIM26
main71077-30D80-C0i200904-200908
THAILAND SPEC,BRUNEI SPEC&RED X BLACK INTERIOR PACKAGE,BLACK/RED,TRIM20
main71077-30E10-C0i200904-200908
CHINA SPEC&RED X BLACK INTERIOR PACKAGE,BLACK/RED,TRIM20
sub71077-30E11
main71077-30G10-E1i201007-201109
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),CHOCOLATE BROWN / DK.ORAN,TRIM2#
71281AHINGE, REAR SEAT CENTER ARMREST
main71281-30070i200501-200709
71611PAD, REAR SEAT CUSHION
main71503-30180i200709-201112
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71507-30250i200709-201112
71931ASUPPORT, REAR SEAT HEADREST
main71930-42020-A3×2i200501-200707
W(LOCK)&W(BUTTON),IVORY,TRIM0#
sub71930-44020
main71930-42020-B7×2i200501-200707
W(LOCK)&W(BUTTON),GRAY,TRIM1#
sub71930-44020
main71930-42020-C0×2i200501-200707
W(LOCK)&W(BUTTON),BLACK,TRIM2#
sub71930-44020
main71930-52030-A1×2i200709-200909
W(LOCK)&W(BUTTON),IVORY,TRIM0#
main71930-52030-A3×2i200909-201112
W(LOCK)&W(BUTTON),IVORY,TRIM0#
main71930-52030-B1×2i200708-200709
W(LOCK)&W(BUTTON),GRAY,TRIM1#
main71930-52030-B5×2i200709-201112
W(LOCK)&W(BUTTON),LT.GRAY,TRIM1#
main71930-52030-C0×2i200709-201112
W(LOCK)&W(BUTTON),BLACK,TRIM2#
main71931-42020-A3×2i200709-200909
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
main71931-42020-A6×2i200909-201112
W(LOCK)&W/O(BUTTON),IVORY,TRIM0#
main71931-42020-B2×2i200709-201112
W(LOCK)&W/O(BUTTON),LT.GRAY,TRIM1#
main71931-42020-B7×2i200501-200709
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#
main71931-42020-C0×2i200501-200709
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
71940AHEADREST ASSY, REAR SEAT
main71940-30A50-C0×2i200501-200709
BLACK,TRIM2#
sub71940-30A51
main71940-30A50-C1×2i201105-201112
BLACK,TRIM2#
sub71940-30A51
main71940-30A50-C2×2i201007-201105
BLACK,TRIM2#
sub71940-30A51
main71940-30A60-A0×2supersedes 71940-30A50-A0i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
sub71940-30A61
main71940-30A60-B1×2supersedes 71940-30A50-B0i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71940-30A61
main71940-30A60-C0×2supersedes 71940-30A50-C0i200709-200909
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71940-30A61
main71940-30C00-A2×2supersedes 71940-30A50-A1i200909-201007
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71940-30C01
main71940-30C00-A3×2supersedes 71940-30A50-A2i201007-201105
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71940-30C01
main71940-30C00-B1×2supersedes 71940-30A50-B1i201105-201112
LT.GRAY,TRIM1#
sub71940-30C01
main71940-30C00-B2×2supersedes 71940-30A50-B2i201007-201105
LT.GRAY,TRIM1#
sub71940-30C01
main71940-30C00-C1×2supersedes 71940-30A50-C1i201105-201112
BLACK,TRIM2#
sub71940-30C01
main71940-30C00-C2×2i201007-201105
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71940-30C01
main71940-30A60-B0×2i200501-200709
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW GRAY,TRIM1#
sub71940-30A61
main71940-30B40-A1×2i200709-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main71940-30B40-B0×2i200907-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LIGHT GRAY,TRIM1#
main71940-30B40-C0×2i200907-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),BLACK,TRIM2#
main71940-30B90-C0×2i200904-200908
THAILAND SPEC,BRUNEI SPEC&RED X BLACK INTERIOR PACKAGE,BLACK/RED,TRIM20
sub71940-30B91
main71940-30C00-E3×2i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),CHOCOLATE BROWN,TRIM26
sub71940-30C01
main71940-30C00-E4×2i201105-201109
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),CHOCOLATE BROWN,TRIM26
sub71940-30C01
main71940-30C10-A3×2i200909-201006
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main71940-30C10-B1×2i200909-201006
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
main71940-30C10-C1×2i200909-201006
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
main71940-30C10-C2×2i200909-201006
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM24,25
main71940-30C11-A3×2i201105-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71940-30C12
main71940-30C11-A5×2i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71940-30C12
main71940-30C11-B1×2i201105-201112
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71940-30C12
main71940-30C11-B2×2i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LIGHT GRAY,TRIM1#
sub71940-30C12
main71940-30C11-C1×2i201105-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
sub71940-30C12
main71940-30C11-C2×2i201105-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM24,25
sub71940-30C12
main71940-30C11-C3×2i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
sub71940-30C12
main71940-30C11-C4×2i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM24,25
sub71940-30C12
71956BSUPPORT, REAR SEAT HEADREST
main71956-47010-A1i200501-200709
W/O(LOCK),IVORY,TRIM0#
sub71956-02040
main71956-47010-A3i200909-201112
W/O(LOCK),IVORY,TRIM0#
sub71956-02040
main71956-47010-C0i200501-200709
W/O(LOCK),BLACK,TRIM2#
sub71956-02040
main71956-47010-P0i200501-200709
W/O(LOCK),GRAY,TRIM1#
sub71956-02040
main71956-47010-P2i200709-201112
W/O(LOCK),LT.GRAY,TRIM1#
sub71956-02040
main71970-47010-A1i200501-200709
W(LOCK),IVORY,TRIM0#
sub71970-02040
main71970-47010-A3i200909-201112
W(LOCK),IVORY,TRIM0#
sub71970-02040
main71970-47010-C0i200709-201112
W(LOCK),BLACK,TRIM2#
sub71970-02040
main71970-47010-P0i200501-200709
W(LOCK),GRAY,TRIM1#
sub71970-02040
main71970-47010-P2i200709-201112
W(LOCK),LT.GRAY,TRIM1#
sub71970-02040
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-30280-A0i200709-201007
IVORY,TRIM0#
sub71960-30281
main71960-30280-B0i200709-201007
LT.GRAY,TRIM1#
sub71960-30281
main71960-30280-C0i200709-201007
BLACK,TRIM2#
sub71960-30281
main71960-30280-C1i201105-201112
BLACK,TRIM2#
sub71960-30281
main71960-30280-C2i201007-201105
BLACK,TRIM2#
sub71960-30281
main71960-30290-A0i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
sub71960-30291
main71960-30290-B1i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub71960-30291
main71960-30290-C0i200709-200909
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71960-30291
main71960-30380-A1i200909-201007
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71960-30381
main71960-30380-A2supersedes 71960-30280-A1i201105-201112
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
sub71960-30381
main71960-30380-A3supersedes 71960-30280-A2i201007-201105
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71960-30381
main71960-30380-B0i200909-201007
LT.GRAY,TRIM1#
sub71960-30381
main71960-30380-B1supersedes 71960-30280-B1i201105-201112
LT.GRAY,TRIM1#
sub71960-30381
main71960-30380-B2supersedes 71960-30280-B2i201007-201105
LT.GRAY,TRIM1#
sub71960-30381
main71960-30380-C0i200909-201007
BLACK,TRIM2#
sub71960-30381
main71960-30380-C1i201105-201112
BLACK,TRIM2#
sub71960-30381
main71960-30380-C2i201007-201105
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub71960-30381
main71960-30290-B0i200501-200709
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW GRAY,TRIM1#
sub71960-30291
main71960-30340-A1i200709-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main71960-30340-B0i200709-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LIGHT GRAY,TRIM1#
main71960-30340-C0i200709-200908
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
main71960-30370-C0i200904-200908
THAILAND SPEC,BRUNEI SPEC&RED X BLACK INTERIOR PACKAGE,BLACK/RED,TRIM20
sub71960-30371
main71960-30380-E4i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),CHOCOLATE BROWN,TRIM26
sub71960-30381
main71960-30380-E5i201105-201109
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),CHOCOLATE BROWN,TRIM26
sub71960-30381
main71960-30390-A1i200909-201006
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main71960-30390-B0i200909-201006
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LIGHT GRAY,TRIM1#
main71960-30390-C0i200909-201006
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
main71960-30391-A3i201105-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71960-30392
main71960-30391-A5i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
sub71960-30392
main71960-30391-B1i201105-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LIGHT GRAY,TRIM1#
sub71960-30392
main71960-30391-B2i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LT.GRAY,TRIM1#
sub71960-30392
main71960-30391-C1i201105-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub71960-30392
main71960-30391-C2i201105-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM24,25
sub71960-30392
main71960-30391-C3i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
sub71960-30392
main71960-30391-C4i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM24,25
sub71960-30392
72693HOOK, REAR SEAT CUSHION LOCK
main72693-12080×2i200709
72805BDOOR SUB-ASSY, REAR SEAT CENTER ARMREST
main72805-33030-C0i200501-200709
BLACK,TRIM0#,1#,2#
72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
main72806-30110-A0i200709-200909
IVORY,TRIM0#
main72806-30110-A3i200909-201112
IVORY,TRIM0#
main72806-30110-B2i200709-201112
LT.GRAY,TRIM1#
main72806-30110-C0i200501-200709
BLACK,TRIM2#
main72806-30110-B0i200501-200709
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),GRAY,TRIM1#
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-30B00-C0i200501-200709
BLACK,TRIM2#
sub72830-30B01
main72830-30C20-C2i201007-201105
BLACK,TRIM2#
sub72830-30C21
main72830-30C20-C3i201105-201112
BLACK,TRIM2#
sub72830-30C21
main72830-30C50-A0supersedes 72830-30C20-A1i200709-200909
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
sub72830-30C51
main72830-30C50-B0supersedes 72830-30C20-B1i200709-200909
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
sub72830-30C51
main72830-30C50-C0supersedes 72830-30C20-C0i200709-200909
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub72830-30C51
main72830-30D80-A3supersedes 72830-30C20-A4i200909-201007
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY/BLACK,TRIM0#
main72830-30D80-A4supersedes 72830-30C20-A5i201007-201105
CHINA SPEC&SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main72830-30D80-A5supersedes 72830-30C20-A6i201105-201112
SEAT COVER MATERIAL-LEATHER,IVORY,TRIM0#
main72830-30D80-B2supersedes 72830-30C20-B3i200909-201007
LT.GRAY/BLACK,TRIM1#
main72830-30D80-B3supersedes 72830-30C20-B4i201007-201105
LT.GRAY,TRIM1#
main72830-30D80-B4supersedes 72830-30C20-B5i201105-201112
LT.GRAY,TRIM1#
main72830-30D80-C1supersedes 72830-30C20-C1i200909-201007
BLACK,TRIM2#
main72830-30D80-C2i201007-201105
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
main72830-30D80-C3i201105-201112
BLACK,TRIM2#
main72830-30B10-A1i200501-200709
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW IVORY,TRIM0#
sub72830-30B11
main72830-30B10-B1i200501-200709
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),NEW GRAY,TRIM1#
sub72830-30B11
main72830-30B10-C0i200501-200709
SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
sub72830-30B11
main72830-30C60-A1i200907-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY,TRIM0#
sub72830-30C61
main72830-30C60-B0i200709-200908
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LIGHT GRAY,TRIM1#
sub72830-30C61
main72830-30C60-C0i200709-200909
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
sub72830-30C61
main72830-30D60-C0i200904-200908
THAILAND SPEC,BRUNEI SPEC&RED X BLACK INTERIOR PACKAGE,BLACK/RED,TRIM20
sub72830-30D61
main72830-30D80-E2i201007-201105
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),CHOCOLATE BROWN,TRIM26
main72830-30D80-E3i201105-201109
SEAT COVER MATERIAL-LEATHER&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),CHOCOLATE BROWN,TRIM26
main72830-30E00-A3i200909-201006
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),IVORY/BLACK,TRIM0#
main72830-30E00-B2i200909-201006
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY/BLACK,TRIM1#
main72830-30E00-C1i200909-201006
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
main72830-30E01-A4i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main72830-30E01-A5i201105-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),IVORY,TRIM0#
main72830-30E01-B3i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE),LIGHT GRAY,TRIM1#
main72830-30E01-B4i201105-201112
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
main72830-30E01-C2i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
main72830-30E01-C3i201007-201105
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM24,25
main72830-30E01-C4i201105-201112
CHINA SPEC&SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
main72830-30E01-C5i201105-201112
SEAT COVER MATERIAL-LEATHER(SEMIANILINE)&VENTILATION SEAT-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM24,25
72996COVER, REAR SEATBACK, RH
main72996-50100-A2×2i200501-200709
NEW IVORY,TRIM0#
main72996-50100-A4×2i200909-201112
IVORY,TRIM0#
main72996-50100-B1×2i200501-200709
GRAY,TRIM1#
main72996-50100-B4×2i200709-201112
LT.GRAY,TRIM1#
main72996-50100-C0×2i200709-201112
BLACK,TRIM2#
73705BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH
main73705-30030i200709
73706BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH
main73706-30030i200709
7270235010BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-35010
9011908C20
main90119-08C20
9017906168
main90179-06168
9017908241
main90179-08241
9046818008
main90468-18008
9151180816
main91511-80816
9356054010
main93560-54010

24 parts on this diagram · 1 diagram in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
