MAT & CARPET

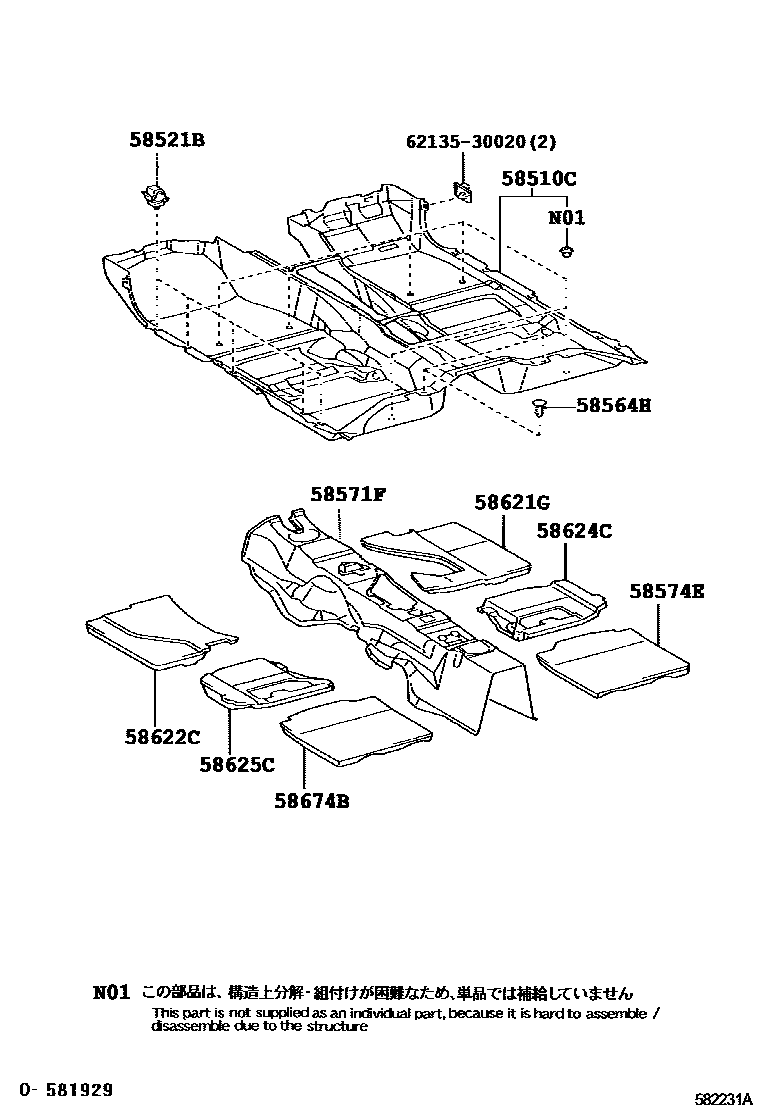

Parts diagram
58510CCARPET ASSY, FRONT FLOOR, FRONT
main58510-30A10-A0i200501-200709
IVORY,TRIM0#
sub58510-30A11
main58510-30A10-B0i200501-200709
GRAY,TRIM1#
sub58510-30A11
main58510-30A10-C0i200501-200709
BLACK,TRIM2#
sub58510-30A11
main58510-30A50-A0i200704-200709
CHINA SPEC,IVORY,TRIM0#
sub58510-30A51
main58510-30A50-B0i200704-200709
CHINA SPEC,GRAY,TRIM1#
sub58510-30A51
main58510-30A50-C0i200704-200709
CHINA SPEC,BLACK,TRIM2#
sub58510-30A51
main58510-30A60-A0i200704-200709
CHINA SPEC,IVORY,TRIM0#
sub58510-30A61
main58510-30A60-B0i200704-200709
CHINA SPEC,GRAY,TRIM1#
sub58510-30A61
main58510-30A60-C0i200704-200709
CHINA SPEC,BLACK,TRIM2#
sub58510-30A61
main58510-30A90-A0i200709-200909
IVORY,TRIM0#
sub58510-30A91
main58510-30A90-A0i200709-200909
NEW ZEALAND SPEC,IVORY,TRIM0#
sub58510-30A91
main58510-30A90-A0i200709-200909
AUSTRALIA SPEC,IVORY,TRIM0#
sub58510-30A91
main58510-30A90-A1i200909-201112
NEW ZEALAND SPEC,IVORY,TRIM0#
sub58510-30A91
main58510-30A90-A1i200909-201112
AUSTRALIA SPEC,IVORY,TRIM0#
sub58510-30A91
main58510-30A90-A1i200909-201112
IVORY,TRIM0#
sub58510-30A91
main58510-30A90-B0i200709-201112
LT.GRAY,TRIM1#
sub58510-30A91
main58510-30A90-B0i200709-201112
NEW ZEALAND SPEC,LT.GRAY,TRIM1#
sub58510-30A91
main58510-30A90-B0i200709-201112
AUSTRALIA SPEC,LT.GRAY,TRIM1#
sub58510-30A91
main58510-30A90-C0i200709-201112
AUSTRALIA SPEC,BLACK,TRIM2#
sub58510-30A91
main58510-30A90-C0i200709-201112
BLACK,TRIM2#
sub58510-30A91
main58510-30A90-C0i200709-201112
NEW ZEALAND SPEC,BLACK,TRIM2#
sub58510-30A91
main58510-30B00-A0i200709-200909
IVORY,TRIM0#
sub58510-30B01
main58510-30B00-A1i200909-201112
IVORY,TRIM0#
sub58510-30B01
main58510-30B00-B0i200709-201112
LT.GRAY,TRIM1#
sub58510-30B01
main58510-30B00-C0i200709-201112
BLACK,TRIM2#
sub58510-30B01
main58510-30B10-A0i200709-200909
IVORY,TRIM0#
sub58510-30B11
main58510-30B10-A1i200909-201112
IVORY,TRIM0#
sub58510-30B11
main58510-30B10-B0i200709-201112
LT.GRAY,TRIM1#
sub58510-30B11
main58510-30B10-C0i200709-201112
BLACK,TRIM2#
sub58510-30B11
main58510-30B20-A0i200709-200909
IVORY,TRIM0#
sub58510-30B21
main58510-30B20-A1i200909-201112
IVORY,TRIM0#
sub58510-30B21
main58510-30B20-B0i200709-201112
LT.GRAY,TRIM1#
sub58510-30B21
main58510-30B20-C0i200709-201112
BLACK,TRIM2#
sub58510-30B21
main58510-30B40-A0i200907-200909
IVORY,TRIM0#
sub58510-30B41
main58510-30B40-A1i200909-201112
IVORY,TRIM0#
sub58510-30B41
main58510-30B40-B0i200907-201112
LT.GRAY,TRIM1#
sub58510-30B41
main58510-30B40-C0i200907-201112
BLACK,TRIM2#
sub58510-30B41
main58510-30B50-A0i200709-200909
CHINA SPEC,IVORY,TRIM0#
sub58510-30B51
main58510-30B50-A1i200909-201112
CHINA SPEC,IVORY,TRIM0#
sub58510-30B51
main58510-30B50-B0i200709-201112
CHINA SPEC,LT.GRAY,TRIM1#
sub58510-30B51
main58510-30B50-C0i200709-201112
CHINA SPEC,BLACK,TRIM2#
sub58510-30B51
main58510-30B60-A0i200709-200909
CHINA SPEC,IVORY,TRIM0#
sub58510-30B61
main58510-30B60-A1i200909-201007
CHINA SPEC,IVORY,TRIM0#
sub58510-30B61
main58510-30B60-B0i200709-201007
CHINA SPEC,LT.GRAY,TRIM1#
sub58510-30B61
main58510-30B60-C0i200709-201007
CHINA SPEC,BLACK,TRIM2#
sub58510-30B61
main58510-30C20-D0i200904-200908
HONG KONG SPEC,SINGAPORE SPEC&RED X BLACK INTERIOR PACKAGE,RED,TRIM20
sub58510-30C21
main58510-30C30-D0i200904-200908
CHINA SPEC&RED X BLACK INTERIOR PACKAGE,RED,TRIM20
sub58510-30C31
main58510-30C60-D0i200904-200908
HONG KONG SPEC,SINGAPORE SPEC&RED X BLACK INTERIOR PACKAGE&KICK DOWN SWITCH SYSTEM-WITHOUT,RED,TRIM20
sub58510-30C61
main58510-30C60-D0i200904-200908
THAILAND SPEC,BRUNEI SPEC&RED X BLACK INTERIOR PACKAGE,RED,TRIM20
sub58510-30C61
main58510-3K630-A0i200501-200709
IVORY,TRIM0#
sub58510-3K631
main58510-3K630-B0i200501-200709
GRAY,TRIM1#
sub58510-3K631
main58510-3K630-C0i200501-200709
BLACK,TRIM2#
sub58510-3K631
main58510-3K780-A0i200501-200709
IVORY,TRIM0#
sub58510-3K781
main58510-3K780-B0i200501-200709
GRAY,TRIM1#
sub58510-3K781
main58510-3K780-C0i200501-200709
BLACK,TRIM2#
sub58510-3K781
main58510-3K790-A0i200501-200709
IVORY,TRIM0#
sub58510-3K791
main58510-3K790-A0i200501-200709
AUSTRALIA SPEC,IVORY,TRIM0#
sub58510-3K791
main58510-3K790-A0i200501-200709
NEW ZEALAND SPEC,IVORY,TRIM0#
sub58510-3K791
main58510-3K790-B0i200501-200709
NEW ZEALAND SPEC,GRAY,TRIM1#
sub58510-3K791
main58510-3K790-B0i200501-200709
GRAY,TRIM1#
sub58510-3K791
main58510-3K790-B0i200501-200709
AUSTRALIA SPEC,GRAY,TRIM1#
sub58510-3K791
main58510-3K790-C0i200501-200709
BLACK,TRIM2#
sub58510-3K791
main58510-3K790-C0i200501-200709
NEW ZEALAND SPEC,BLACK,TRIM2#
sub58510-3K791
main58510-3K790-C0i200501-200709
AUSTRALIA SPEC,BLACK,TRIM2#
sub58510-3K791
58521BHOOK, FLOOR CARPET
main58521-30140i200501-200709
58564HCLIP(FOR REAR FLOOR CARPET)
main90467-05164-B8i200501-201112
LT.GRAY
sub90467-05164
58571FPAD, FRONT FLOOR, FRONT
main58571-30050i200501-200709
main58571-30060i200907
main58571-30080i200501-200709
sub58571-30160
main58571-30160i200709
main58571-30170i200709
58574EPAD, REAR FLOOR SILENCER, NO.1
main58673-30020i200501-200709
sub58673-30021
58621GPAD, FRONT FLOOR SILENCER, RH
main58621-30150i200501-200709
sub58621-30151
58622CPAD, FRONT FLOOR SILENCER, LH
main58622-30160i200501-200709
sub58622-30161
main58622-30170i200907
sub58622-30171
58624CPAD, CENTER FLOOR SILENCER, RH
main58624-30140i200501-200709
sub58624-30141
58625CPAD, CENTER FLOOR SILENCER, LH
main58625-30090i200501-200709
sub58625-30091
58674BPAD, REAR FLOOR SILENCER, NO.2
main58674-30020i200501-200709
sub58674-30021
6213530020FRAME, REAR SIDE WINDOW
main62135-30020

11 parts on this diagram · 1 diagram in section
