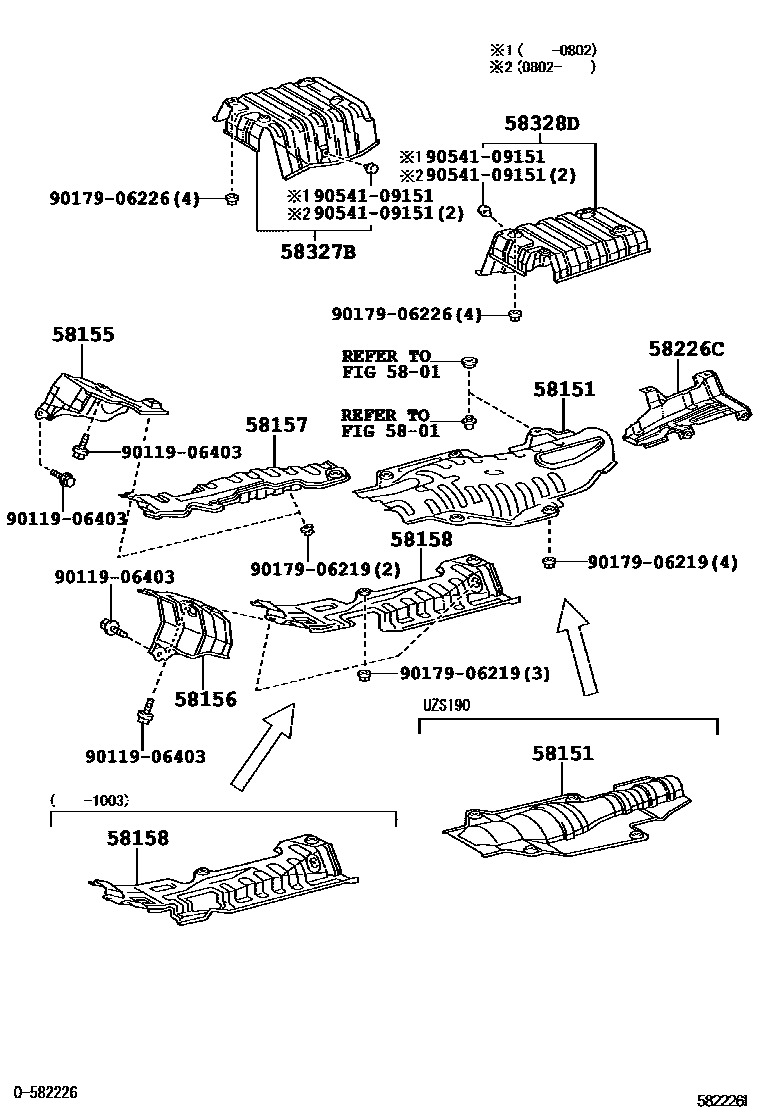

FLOOR INSULATOR

0001 1 0002 1

5801

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30150iUZS190200501-200809

main58151-30160iGRS190200501-200709

main58151-30171iGRS196200907

main58151-30190iGRS190,URS190200709

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30040iGRS190,UZS190200501-200709

main58155-30050iURS190200709

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-30080iGRS190,UZS190200501-200709

main58156-30090iGRS196200907

main58156-30120iURS190200709

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30071iGRS190,UZS190200501-201003

sub58157-30072

main58157-30072iGRS19#,URS190201004-201110

sub58157-30073

main58157-30073iGRS19#,URS190201111-201112

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-30061iGRS190,UZS190200501-201003

sub58158-30062

main58158-30062iGRS190,URS190201004-201112

sub58158-30063

58226CPLATE, AIR GUIDE, OUTSIDE RH

main58226-30040iGRS190,UZS190200501-200709

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-30052iGRS190,UZS190200501-200802

main58327-30053iGRS19#,URS190,UZS190200802

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-30032iGRS190,UZS190200501-200504

sub58328-30033

main58328-30033iGRS190,UZS190200505-200802

main58328-30034iGRS19#,URS190,UZS190200802

9011906403

main90119-06403

9017906219

main90179-06219

9017906226

main90179-06226

9054109151

main90541-09151

13 parts on this diagram · 2 diagrams in section
