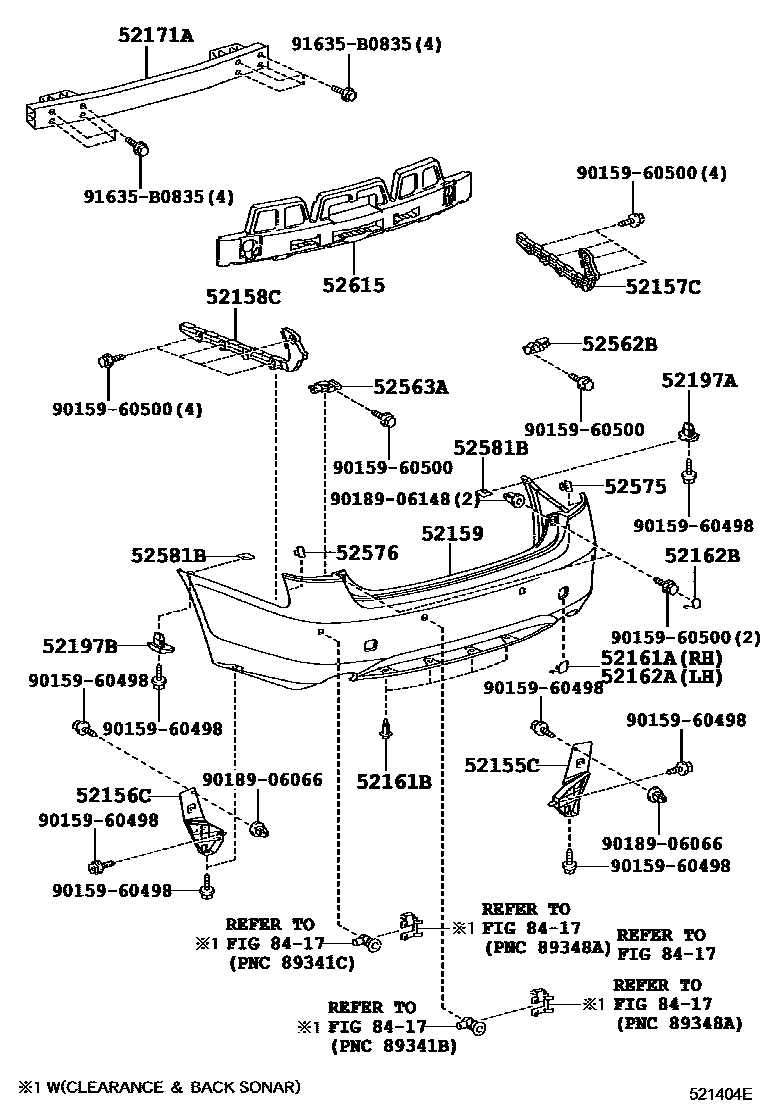

REAR BUMPER & BUMPER STAY
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
sub52159-30943
PAINT REQ.
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
52161APIECE, REAR BUMPER, RH
52161BPIECE, REAR BUMPER
sub52161-0K040
52162APIECE, REAR BUMPER, LH
52162BPLATE, REAR BUMPER, NO.1
CLEARANCE & BACK SONAR-WITH
52171AREINFORCEMENT, REAR BUMPER, NO.1
52197ABRACKET, REAR BUMPER SEAL, RH
52197BBRACKET, REAR BUMPER SEAL, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52581BPROTECTOR, REAR BUMPER
8417
9015960498
main90159-60498
9015960500
main90159-60500
9018906066
main90189-06066
9018906148
main90189-06148
91635B0835
main91635-B0835
24 parts on this diagram · 2 diagrams in section
