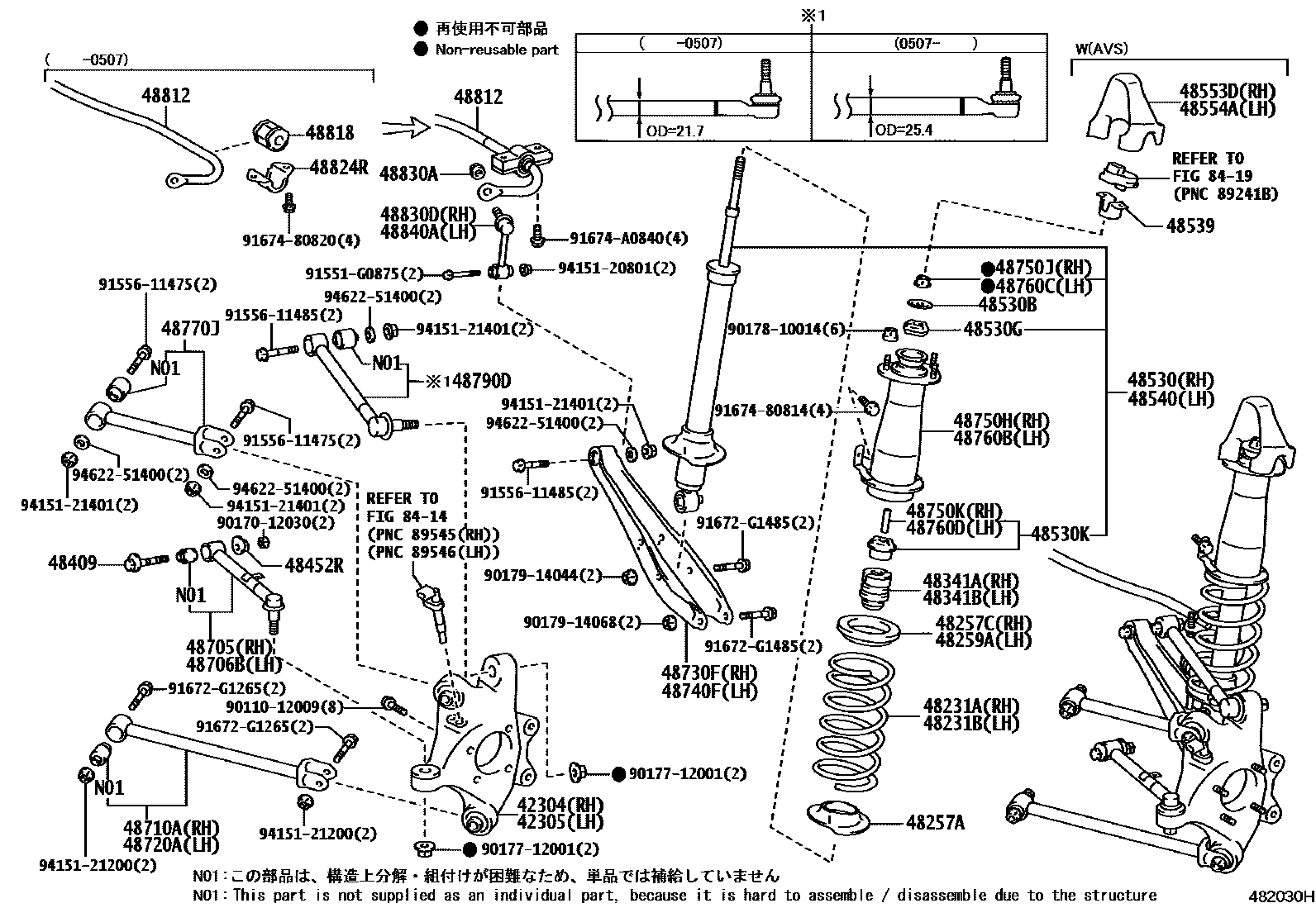

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
sub42304-30110
42305CARRIER SUB-ASSY, REAR AXLE, LH
sub42305-30110
48231ASPRING, COIL, REAR RH
sub48231-30A71
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
sub48231-30B31
SPARE TIRE-WITHOUT
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
CHINA SPEC&ART WORKS
48231BSPRING, COIL, REAR LH
sub48231-30A71
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
SPARE TIRE-WITHOUT
CHINA SPEC&ART WORKS
48257AINSULATOR, REAR COIL SPRING, LOWER
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-30620
MARK 48530-30710,CHINA SPEC&ART WORKS
MARK 48530-30710
MARK 48530-30700,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
MARK 48530-30530
MARK 48530-30560
MARK 48530-30550,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48539BRACKET, ACTUATOR SUPPORT, RR
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-30620
MARK 48530-30710
MARK 48530-30710,CHINA SPEC&ART WORKS
MARK 48530-30700,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
MARK 48530-30530
MARK 48530-30560
MARK 48530-30550,STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
48553DCAP, REAR SHOCK ABSORBER, RH
48554ACAP, REAR SHOCK ABSORBER, LH
48705LINK SUB-ASSY, TOE CONTROL, RH
REFER TO PNC 48790D
REFER TO PNC 48790D
48706BLINK SUB-ASSY, TOE CONTROL, LH
REFER TO PNC 48790D
REFER TO PNC 48790D
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
REFER TO PNC 48790D
REFER TO PNC 48790D
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
REFER TO PNC 48790D
REFER TO PNC 48790D
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48770JARM ASSY, UPPER CONTROL, REAR NO.1
sub48770-30110
48790DARM ASSY, UPPER CONTROL, REAR NO.2
REFER TO ILLUST.
REFER TO ILLUST.
48812BAR, STABILIZER, REAR
48818BUSH, STABILIZER, REAR
SPARE TIRE-WITHOUT
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
48824RBRACKET, STABILIZER(FOR REAR)
SPARE TIRE-WITHOUT
STABILIZER-WITH(ACTIVE STABILIZER SUSPENSION)
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48840ALINK ASSY, REAR STABILIZER, LH
8414
8419
9011012009
main90110-12009
9017012030
main90170-12030
9017712001
main90177-12001
9017810014
main90178-10014
9017914044
main90179-14044
9017914068
main90179-14068
91551G0875
main91551-G0875
9155611475
main91556-11475
9155611485
main91556-11485
91672G1265
main91672-G1265
91672G1485
main91672-G1485
9167480814
main91674-80814
9167480820
main91674-80820
91674A0840
main91674-A0840
9415120801
main94151-20801
9415121200
main94151-21200
9415121401
main94151-21401
9462251400
main94622-51400
59 parts on this diagram · 3 diagrams in section
