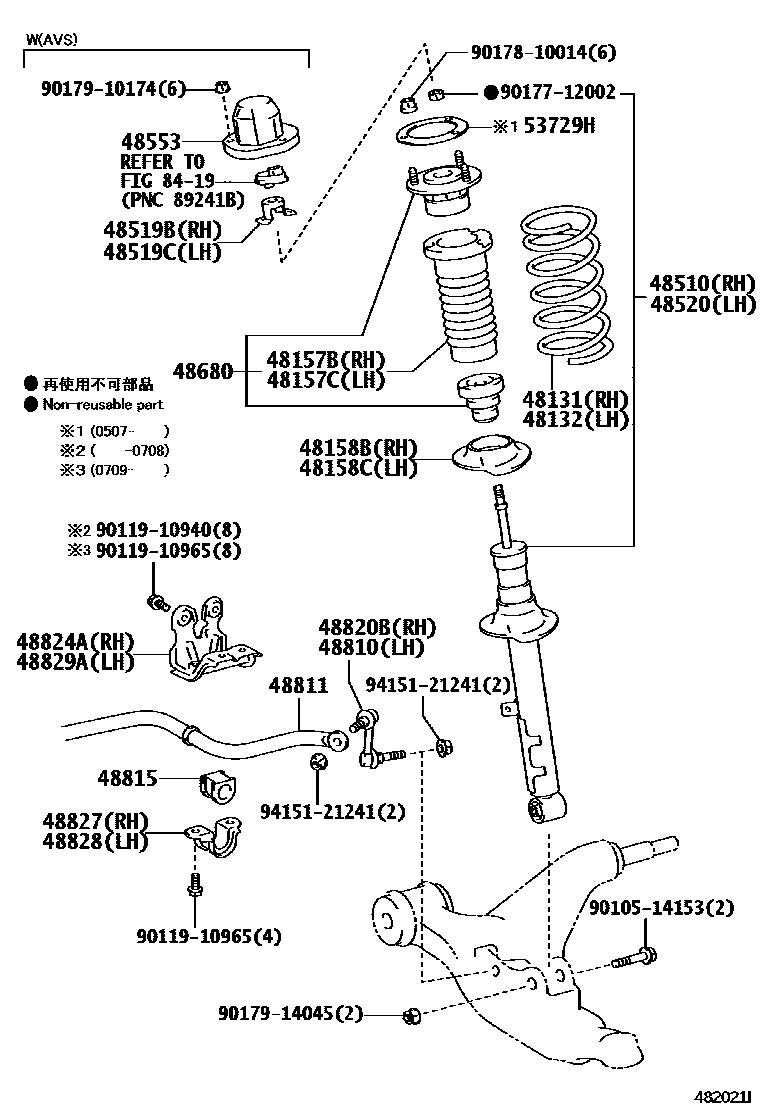

FRONT SPRING & SHOCK ABSORBER
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-30650
MARK 48510-30680
MARK 48510-30760
MARK 48510-30600
MARK 48510-30590
MARK 48510-30610
MARK 48510-30601
MARK 48510-30601,CHINA SPEC&ART WORKS
MARK 48510-30591
MARK 48510-30631
MARK 48510-30611
48519BBRACKET, ACTUATOR SUPPORT, FRONT RH
48519CBRACKET, ACTUATOR SUPPORT, FRONT LH
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-30130
MARK 48520-30160
MARK 48520-30210
MARK 48520-30300
MARK 48520-30290
MARK 48520-30310
MARK 48520-30301
MARK 48520-30301,CHINA SPEC&ART WORKS
MARK 48520-30291
MARK 48520-30331
MARK 48520-30311
48553CAP, SHOCK ABSORBER, UPPER
48680SUPPORT ASSY, FRONT SUSPENSION
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3
8419ELECTRONIC MODULATED SUSPENSION
9010514153
main90105-14153
9011910940
main90119-10940
9011910965
main90119-10965
9017712002
main90177-12002
9017810014
main90178-10014
9017910174
main90179-10174
9017914045
main90179-14045
9415121241
main94151-21241
30 parts on this diagram · 4 diagrams in section
