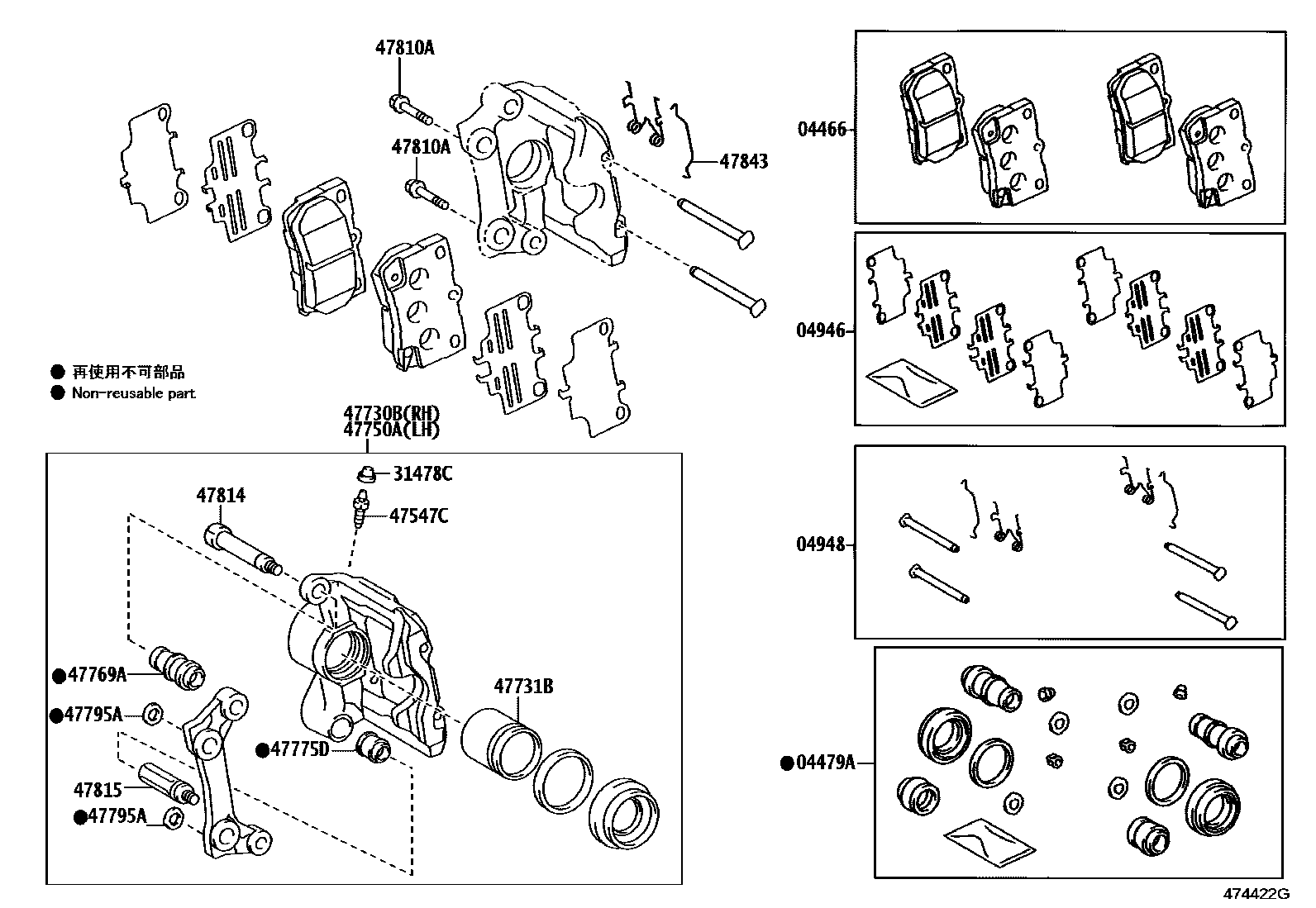

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1 0005 1CALIPER MARK=18R38 0007 1NEW ZEALAND,CHINA,AUSTRALIA,I0008 1NEW ZEALAND,AUSTRALIA,ISRAEL,

04466PAD KIT, DISC BRAKE, REAR

main04466-22190iGRS190;UZS190..GCC200501-200709

MARK NBK PN529H

main04466-30240iURS190..EUR200709-201112

MARK AK NS286H

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-22150iGRS190,UZS190200501-200511

sub04479-30530

main04479-22170iURS190..RHD201104

NEW ZEALAND SPEC

main04479-30460iUZS190..EUR200609-200707

main04479-30480iURS190..EUR200709-201104

REAR WHEEL BRAKE-CALIPER MARK=18R38

main04479-30560iURS190..EUR201104

REAR WHEEL BRAKE-CALIPER MARK=18R38

main04479-61020iGRS190;UZS190..GCC200606-200707

main04479-61040iURS190..RHD200709-201104

NEW ZEALAND SPEC

main04479-68030iGRS190,UZS190200511-200606

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-22090iUZS190..EUR200501-200609

main04946-30200iURS190..EUR200709

REAR WHEEL BRAKE-CALIPER MARK=18R38

04948FITTING KIT, DISC BRAKE, REAR

main04948-22090iGRS190,UZS190200501-200705

main04948-30210iGRS19#,URS190,UZS190200709

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iGRS19#,URS190,UZS190200709

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27030×2iGRS19#,URS190,UZS190200709

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47830-22220iGRS190,UZS190200501-200511

main47830-22221iURS190..RHD200709

NEW ZEALAND SPEC

main47830-30330iUZS190..EUR200609-200709

47731BPISTON, REAR DISC BRAKE

main47831-22220×2iGRS190,UZS190200501-200510

main47831-30330×2iUZS190..EUR200609-200709

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47850-22220iGRS190,UZS190200501-200511

main47850-22221iUZS190..EUR200511-200609

main47850-30330iUZS190..EUR200609-200709

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47879-30300×2iGRS190,UZS190200501-200510

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-32050×2iGRS190,UZS190200501-200511

main47875-22221×2iGRS190,UZS190200511-200707

main47875-30340×2iGRS190,UZS190200707-200709

main47875-30341×2iGRS19#,URS190201104

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30300×4iGRS190,UZS190200511-200709

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10525×4iGRS19#,URS190,UZS190200709-201112

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-30300×2iGRS190,UZS190200511-200709

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-30300×2iGRS190,UZS190200501-200511

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-30300×2iGRS190,UZS190200501-200705

16 parts on this diagram · 6 diagrams in section
