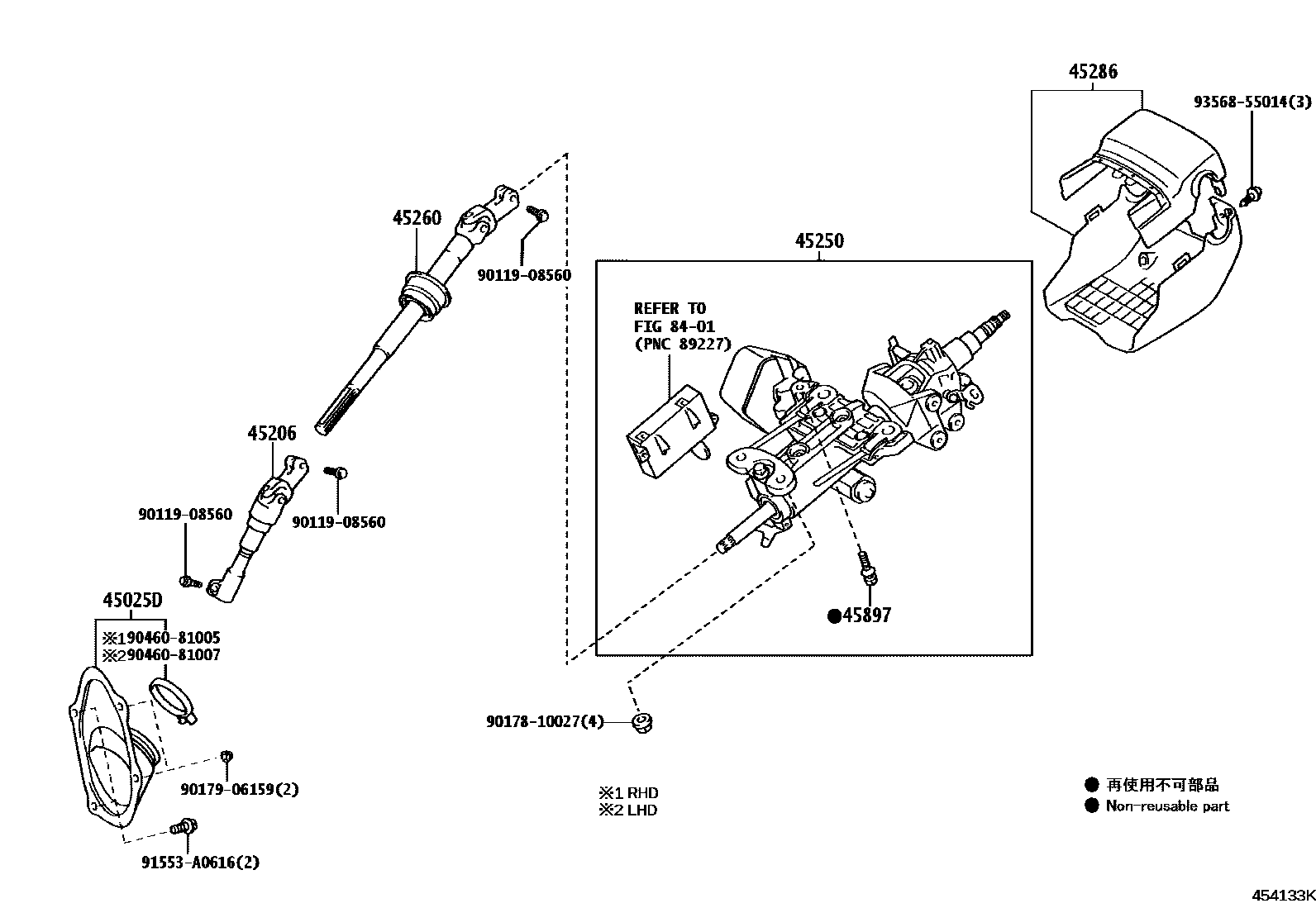

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30350iGRS190..RHD200501-200709

main45025-30370iURS190..RHD200709-201112

main45025-30380iUZS190..LHD200501-200709

main45025-30390iGRS190..LHD200501-200709

main45025-30400iGRS196200907-201111

sub45025-30401

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-30100iGRS190..RHD200501-200709

main45206-30110iGRS190..LHD200501-200709

main45206-30111iURS190..LHD201103-201112

PAINTED=GREEN

main45206-30120iUZS190..RHD200501-200709

main45206-30130iUZS190..LHD200501-200709

main45206-30131iURS190,UZS190..LHD200709-201103

PAINTED=GOLD

main45206-30140iGRS190..RHD200709-201112

PAINTED=BROWN

main45206-30150iURS190..RHD200709-201103

PAINTED=YELLOW GREEN

45250COLUMN ASSY, STEERING

main45250-30A50iGRS190,URS190..RHD200709-201011

sub89227-30020

sub93219-15010

sub93381-15010

main45250-30A60iGRS19#,URS190,UZS190..LHD200709-201011

sub89227-30020

sub93219-15010

sub93381-15010

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-30160iGRS190200501-200709

main45260-30200iGRS190200709-201112

sub45260-30201

main45260-30210iGRS196200907-201112

45286COVER, STEERING COLUMN

main45286-3A905-C0iGRS190,UZS190200501-200607

BLACK,TRIM1#,2#

main45286-3A905-E0iGRS190,UZS190200607-200709

ORCHID BROWN,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020×2iGRS190,UZS190200501-200709

8401

9011908560

main90119-08560

9017810027

main90178-10027

9017906159

main90179-06159

9046081005

main90460-81005

9046081007

main90460-81007

91553A0616

main91553-A0616

9356855014

main93568-55014

14 parts on this diagram · 6 diagrams in section
