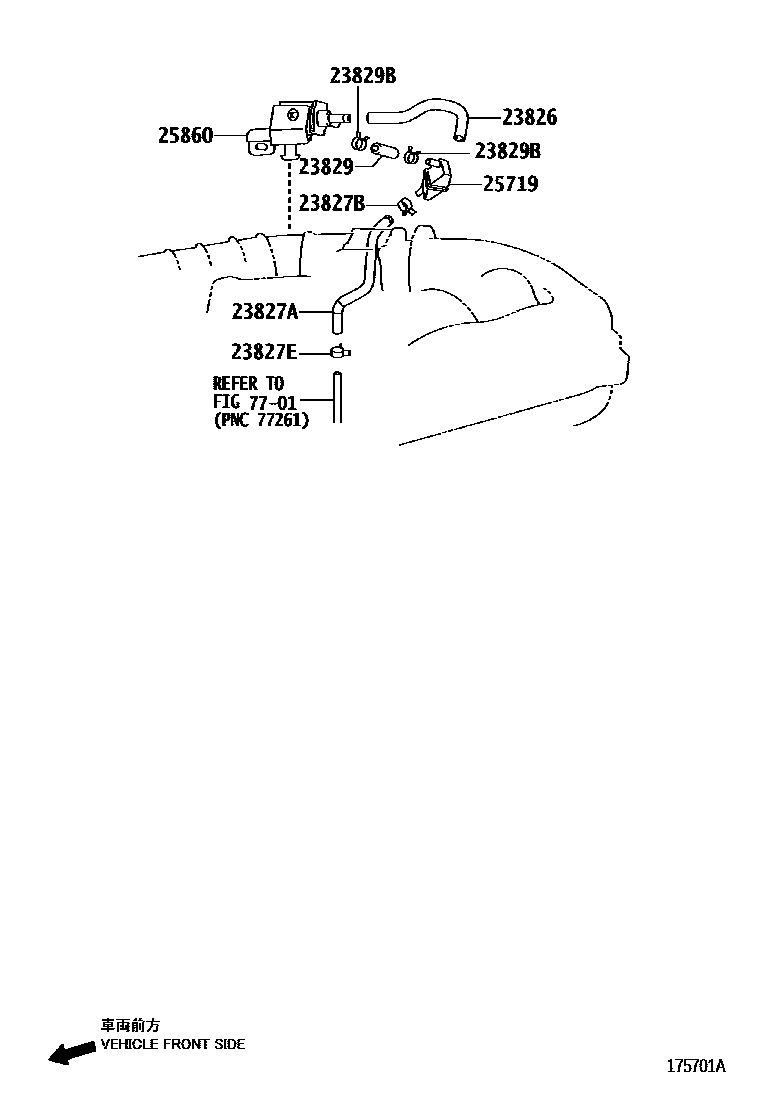

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31020i3GRFSE..GRS190200709

main23826-31030i2GRFSE..GRS196200907

main23826-31050i3GRFE..GRS190200709

main23826-50060i3UZFE..UZS190200709-200809

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-31020i2GRFSE..GRS196200907-201112

sub23827-31100

main23827-31041i3GRFSE..GRS190200709-201112

main23827-31060i3GRFE..GRS190200501-200709

main23827-38040i1UR#..URS190200709-201112

main23827-50190i3UZFE..UZS190200709-200809

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i1UR#..URS190200709-201112

NO.1

main96132-41500i3UZFE..UZS190200501-200709

NO.2

main96132-51300i3UZFE..UZS190200709-200809

NO.1

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2GRFSE,3GR#..GRS19#200709-201112

main96132-41500i3GR#..GRS190200501-200604

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-31010i3GR#..GRS190200501-200709

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51300×2i3GR#..GRS190200501-200709

25719TANK, VACUUM SURGE

main25719-31010i3GR#..GRS190200501-200709

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31040i3GR#..GRS190200709

main25860-31060i2GRFSE..GRS196200907

main25860-38030i1UR#..URS190200709

7701

9 parts on this diagram · 4 diagrams in section
