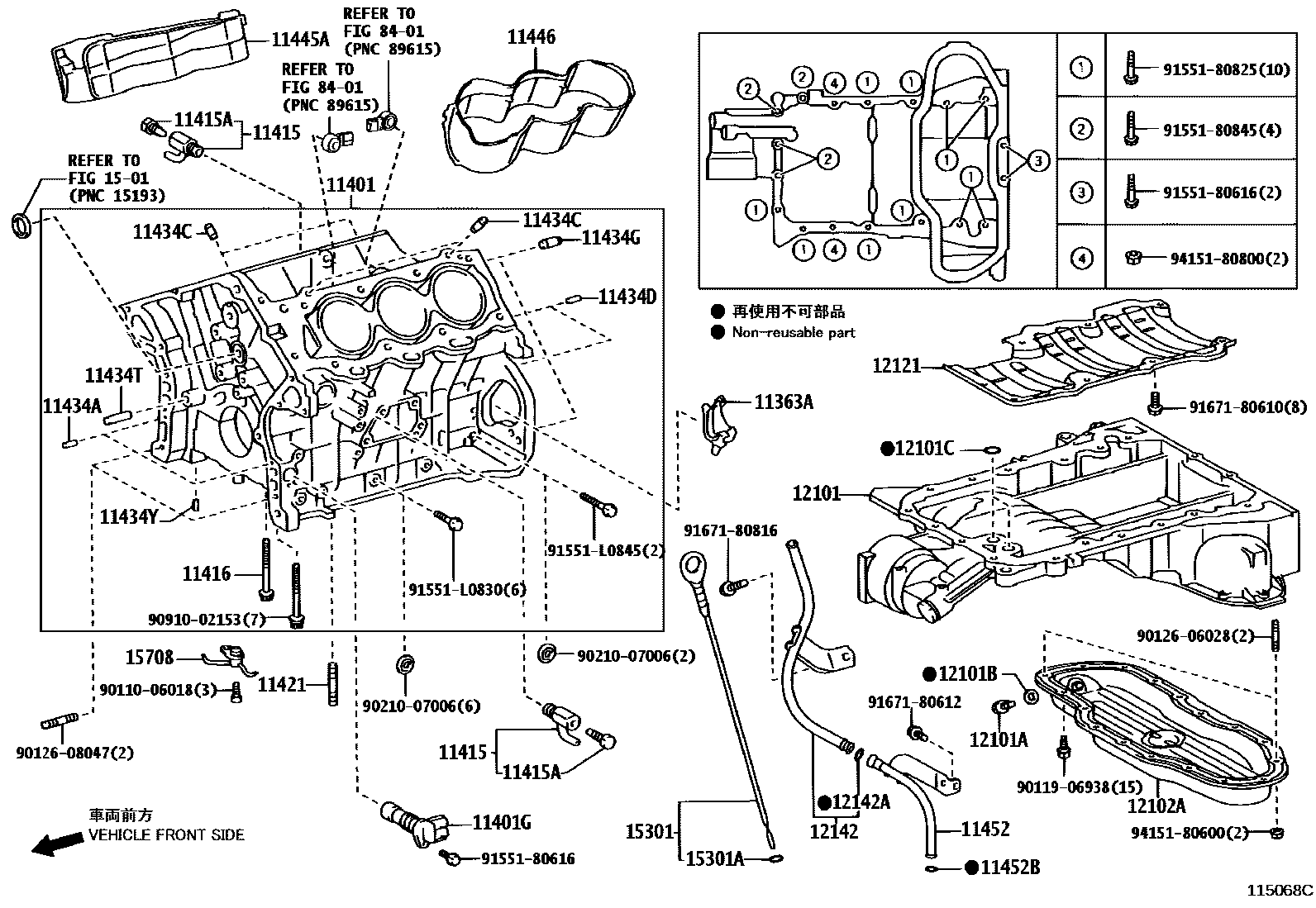

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-31010i3GR#..GRS190200501-200709

sub11363-31030

main11363-38020i1UR#..URS190200709

11401BLOCK SUB-ASSY, CYLINDER

main11401-39775i2GRFSE..GRS196200907

sub11401-39776

main11401-39845i1UR#..URS190200709-201003

sub12109-38040

main11401-39A06i1UR#..URS190201003

sub11401-39A07

main11401-59735i3UZFE..UZS190200709-200809

main11401-80755i3GR#..GRS190200501-200709

sub11401-80816

11401GSENSOR, CRANK POSITION

main90919-05057i3GR#..GRS190200501-200709

main90919-05071i1UR#..URS190200709

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09095i3UZFE..UZS190200709-200809

NO.1

main90910-09123i3UZFE..UZS190200709-200809

NO.2

main90910-09125×2i3GR#..GRS190200501-200503

main90910-09129×2i2GRFSE,3GR#..GRS19#200709

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087×2i3UZFE..UZS190200501-200709

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02154×9i3GR#..GRS190200501-200709

main90910-02165×10i1UR#..URS190200709

NO.2

11421BOLT, STUD(FOR OIL PAN)

main90116-06098×4i3UZFE..UZS190200709-200809

NO.1

main90126-08030×2i3UZFE..UZS190200709-200809

NO.2

main90126-08051×2i3GR#..GRS190200501-200709

main90126-08052×2i2GRFSE,3GR#..GRS19#201005

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097×2i2GRFSE,3GR#..GRS19#200709

L=12,OD=4.0

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90250-08120×4i1UR#..URS190200709

L=18,OD=8

main90253-16001×4i3UZFE..UZS190200501-200709

L=20,OD=16

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-04097×2i1UR#..URS190200709

L=12,OD=4.0

main90250-06003×2i3UZFE..UZS190200709-200809

L=14,OD=6

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113×2i2GRFSE,3GR#..GRS19#200709

11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)

main90250-10030i3GR#..GRS190200501-200709

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-04097×2i1UR#..URS190200709

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-38010×2i1UR#..URS190200709

11445ASPACER, CYLINDER BLOCK WATER JACKET, RH

main11445-31010i3GR#..GRS190200709

11446SPACER, CYLINDER BLOCK WATER JACKET, LH

main11446-31010i3GR#..GRS190200709

11452GUIDE, OIL LEVEL GAGE

main11452-31040i3GR#..GRS190200709

main11452-31050i2GRFSE..GRS196200907

main11452-50170i3UZFE..UZS190200709-200809

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-09028i1UR#..URS190200709

main90301-12018i3GR#..GRS190200501-200709

main96721-19010i3UZFE..UZS190200501-200709

12101PAN SUB-ASSY, OIL

main12101-31100i3GR#..GRS190200501-200508

main12101-31101i3GR#..GRS190200709

main12101-31110i2GRFSE..GRS196200907

main12111-38090i1UR#..URS190200709

sub12111-38140

main12111-50150i3UZFE..UZS190200709-200809

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i1UR#..URS190200709

main90341-12023i3UZFE..UZS190200709-200809

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i3GR#..GRS190200501-200709

12101CRING, O(FOR OIL PAN)

main12151-31010×2i2GRFSE,3GR#..GRS19#200709

12102APAN SUB-ASSY, OIL, NO.2

main12102-31030i3GR#..GRS190200709

main12102-31040i2GRFSE..GRS196200907

main12102-38020i1UR#..URS190200709-200902

main12102-38021i1UR#..URS190200902

main12102-50150i3UZFE..UZS190200709-200809

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-31060i3GR#..GRS190200501-200506

main12121-31080i2GRFSE,3GR#..GRS19#200709

main12121-38080i1UR#..URS190200709

main12121-50200i3UZFE..UZS190200501-200709

12142GUIDE, OIL LEVEL GAGE, NO.2

main12142-31010i3GR#..GRS190200501-200709

main12142-31020i2GRFSE..GRS196200907

12142ARING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)

main96721-19010i3GR#..GRS190200501-200709

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-31070i2GRFSE..GRS196200907

main15301-31080i3GR#..GRS190200501-200709

main15301-38080i1UR#..URS190200709

main15301-50130i3UZFE..UZS190200709-200809

15301ARING, O(FOR OIL LEVEL GAGE)

main96741-19005i2GRFSE,3GR#..GRS19#200709

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-31010×3i3GR#..GRS190200501-200709

main15708-31030×3i2GRFSE..GRS196201003

main15708-31040×3i2GRFSE..GRS196200907-201003

main15708-38020×4i1UR#..URS190200709

sub15708-38030

8401

9011006018

main90110-06018

9011906938

main90119-06938

9012606028

main90126-06028

9012608047

main90126-08047

9021007006

main90210-07006

9091002153

main90910-02153

9155180616

main91551-80616

9155180825

main91551-80825

9155180845

main91551-80845

91551L0830

main91551-L0830

91551L0845

main91551-L0845

9167180610

main91671-80610

9167180612

main91671-80612

9167180816

main91671-80816

9415180600

main94151-80600

9415180800

main94151-80800
