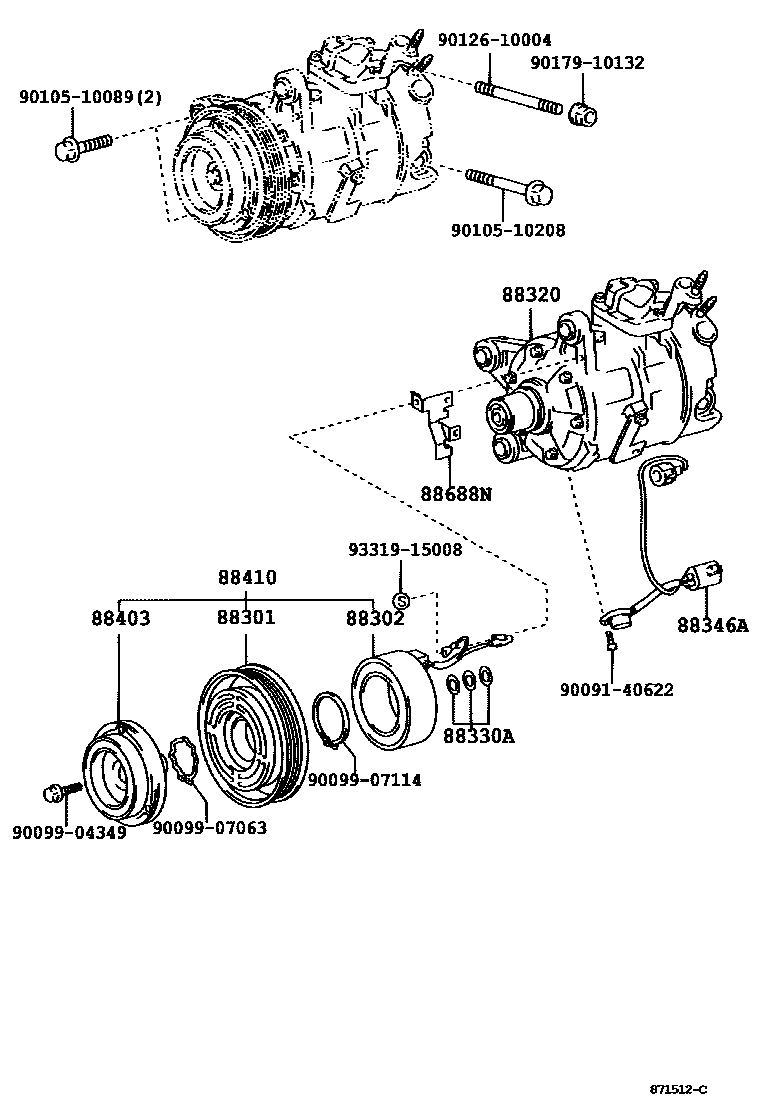

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-2A030iJZS160..ARL,EUR199708

main88412-3A010iJZS160..GCC199708

main88412-3A030iUZS161200007

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-26060iUZS161200007

main88411-2A030iJZS160199708

88320COMPRESSOR ASSY, COOLER

main88320-3A180iJZS160..ARL,EUR199708-200107

sub88320-3A181

main88320-3A181iJZS160..ARL,EUR200107

main88320-3A190iJZS160..GCC199708

sub88320-3AH91

main88320-3A230iUZS161200007-200412

sub88320-3A231

main88320-3A231iUZS161200412

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iJZS160,UZS161199708-200501

88346ASENSOR, COMPRESSOR PICK UP

main88336-2A010iJZS160..ARL,EUR199708-200501

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-2A010iJZS160..GCC199708

main88403-3A100iJZS160,UZS161..ARL,EUR199708

88410CLUTCH ASSY, MAGNET

main88410-3A210iUZS161200007

main88410-3A220iJZS160..ARL,EUR199708

main88410-3A250iJZS160..GCC199708

88688NBRACKET, COOLER

main88688-3A530iJZS160..GCC199708-200501

main88688-3A660iJZS160..ARL,EUR199708-200501

9009140622

main90091-40622

9009904349

main90099-04349

9009907063

main90099-07063

9009907114

main90099-07114

9010510089

main90105-10089

9010510208

main90105-10208

9012610004

main90126-10004

9017910132

main90179-10132

9331915008

main93319-15008

17 parts on this diagram · 6 diagrams in section
