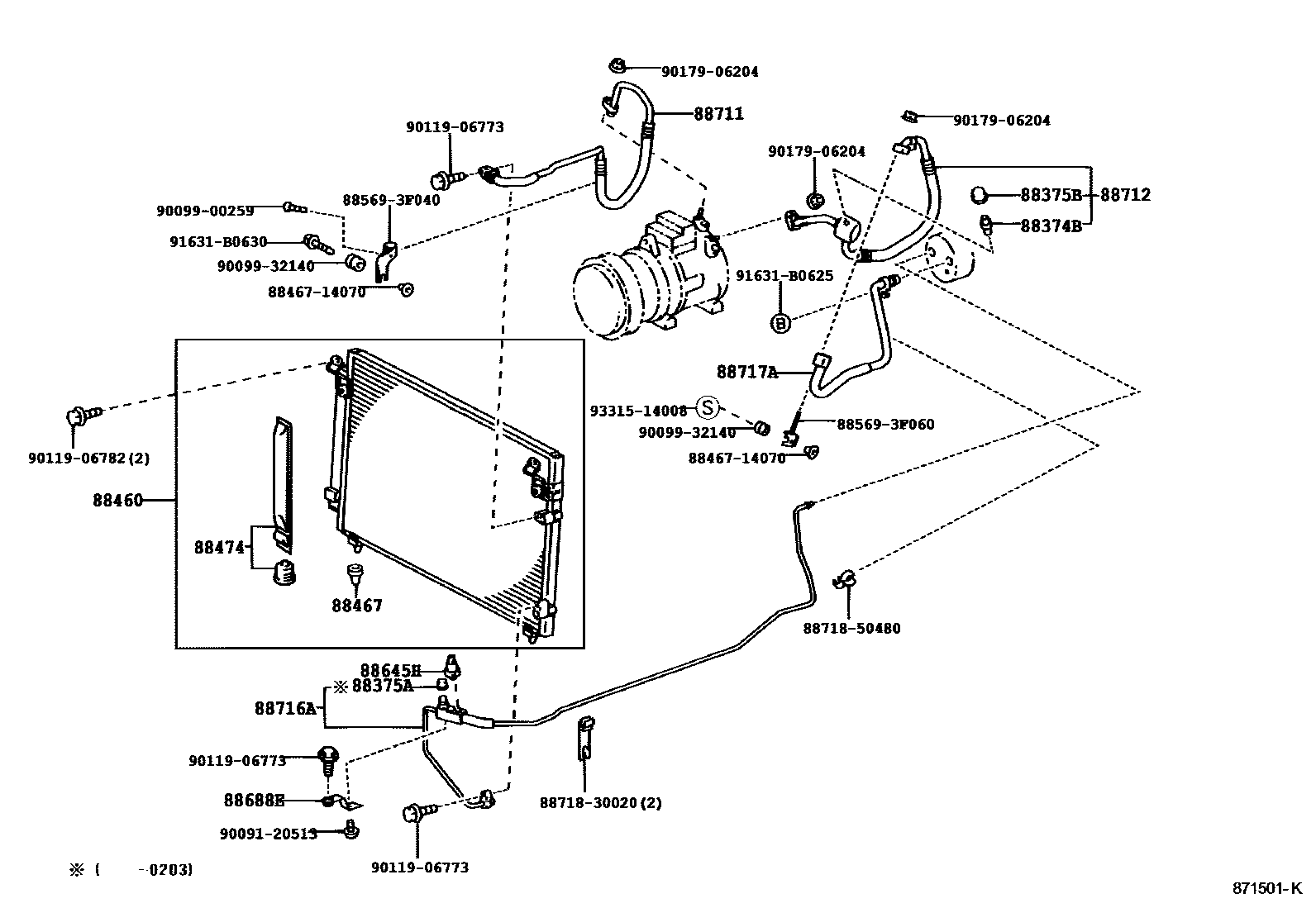

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1O RING

88374BVALVE, SERVICE, NO.1

main88374-30010iUZS161..LHD;JZS160..ARL,EUR199708

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iJZS160,UZS161199708-200203

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iJZS160,UZS161..ARL,EUR199708

88460CONDENSER ASSY, COOLER

main88460-30780iJZS160,UZS161..ARL,EUR199708

main88460-30800iJZS160..GCC199708

sub88460-30790

88467CUSHION, COOLER CONDENSER, NO.1

main88467-20190iJZS160,UZS161200312

main88467-32020iJZS160,UZS161199708-200312

88474DRYER, COOLER

main88474-47010iJZS160,UZS161199708

88645HSWITCH, PRESSURE NO.1

main88645-22070iJZS160,UZS161199708

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-30220iJZS160,UZS161199708

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-3A410iJZS160199708

main88711-3A500iUZS161..RHD200007

main88711-3A510iUZS161..LHD200007

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-30030iJZS160..ARL,EUR199708

main88712-30051iJZS160..GCC199708

main88712-3F041iUZS161200007

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-3K430iJZS160,UZS161199708

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88727-3F080iUZS161..LHD200007

main88727-3F090iJZS160199708

sub88707-30580

main88727-3F160iUZS161..RHD200007

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

885693F040CLAMP (FOR COOLER RELAY)

main88569-3F040

885693F060CLAMP (FOR COOLER RELAY)

main88569-3F060

8871830020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30020

8871850480PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50480

9009120513

main90091-20513

9009900259

main90099-00259

9009932140

main90099-32140

9011906773

main90119-06773

9011906782

main90119-06782

9017906204

main90179-06204

91631B0625

main91631-B0625

91631B0630

main91631-B0630

9331514008

main93315-14008

26 parts on this diagram · 4 diagrams in section
