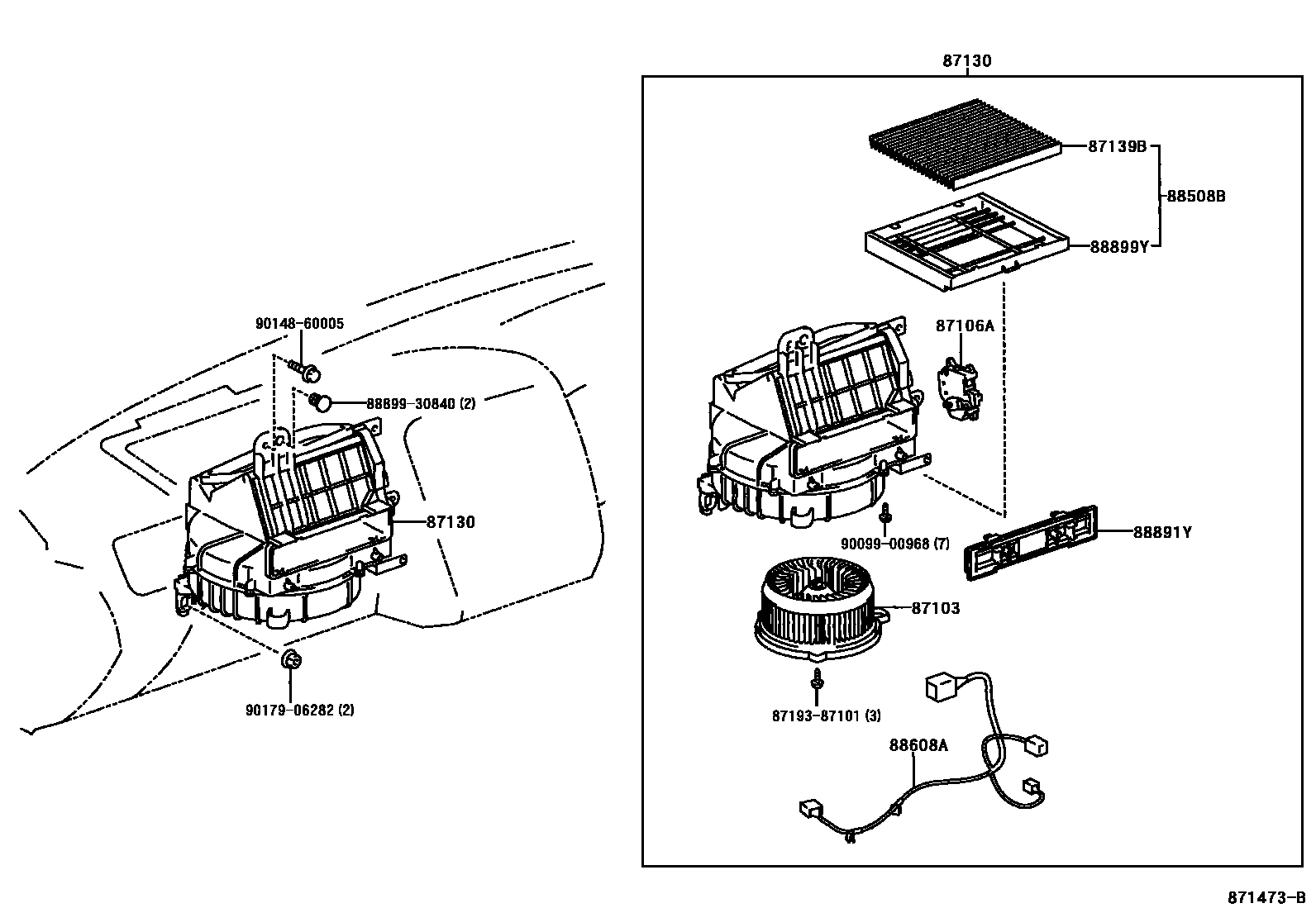

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-30370iJZS160..LHD199708-199808

sub87103-30390

main87103-30380iJZS160..RHD199708-199809

sub87103-51010

main87103-30390iJZS160,UZS161..LHD199808

main87103-51010iJZS160,UZS161..RHD199809

87106ASERVO SUB-ASSY, DAMPER

main87106-30390iJZS160,UZS161..LHD..EUR199708

main87106-30400iJZS160,UZS161..RHD199708

main87106-30410iJZS160..GCC199708

87130BLOWER ASSY, HEATER, FRONT

main87130-30660iJZS160..LHD..EUR199708-200007

main87130-30670iJZS160..RHD199708-200007

main87130-30680iJZS160..GCC199708-200007

sub87130-30660

main87130-30690iJZS160,UZS161..LHD..EUR200007-200208

sub87130-30691

main87130-30691iJZS160,UZS161..LHD..EUR200208

main87130-30700iJZS160..GCC200007-200208

sub87130-30701

main87130-30701iJZS160..GCC200208

main87130-30750iJZS160,UZS161..RHD200007-200208

sub87130-30751

main87130-30751iJZS160,UZS161..RHD200208

87139BFILTER, CLEAN AIR

main87139-30010iJZS160¥3,500199708-200007

sub87139-48030¥2,000

main87139-50030iJZS160,UZS161..RHD¥5,800200007

88508BFILTER SUB-ASSY, CLEAN AIR

main88508-22050iJZS160,UZS161..LHD¥6,100200208-200501

main88508-30100iJZS160199708-200007

main88508-50060iJZS160,UZS161¥6,100200007-200501

88608AHARNESS SUB-ASSY, WIRING AIR CONDITIONER, NO.2

main88608-3A030iJZS160,UZS161199708

88891YCOVER, COOLER,NO.1

main88891-30680iJZS160,UZS161199708

88899YPLATE, COVER(FOR AIR FILTER)

main88899-22380iJZS160,UZS161..LHD200208

main88899-30870iJZS160199708-200007

main88899-50110iJZS160,UZS161..LHD200007-200208

8719387101

main87193-87101¥0

8889930840COVER, EVAPORATOR

main88899-30840

9009900968

main90099-00968

9014860005

main90148-60005¥160

9017906282

main90179-06282¥90

13 parts on this diagram · 2 diagrams in section
