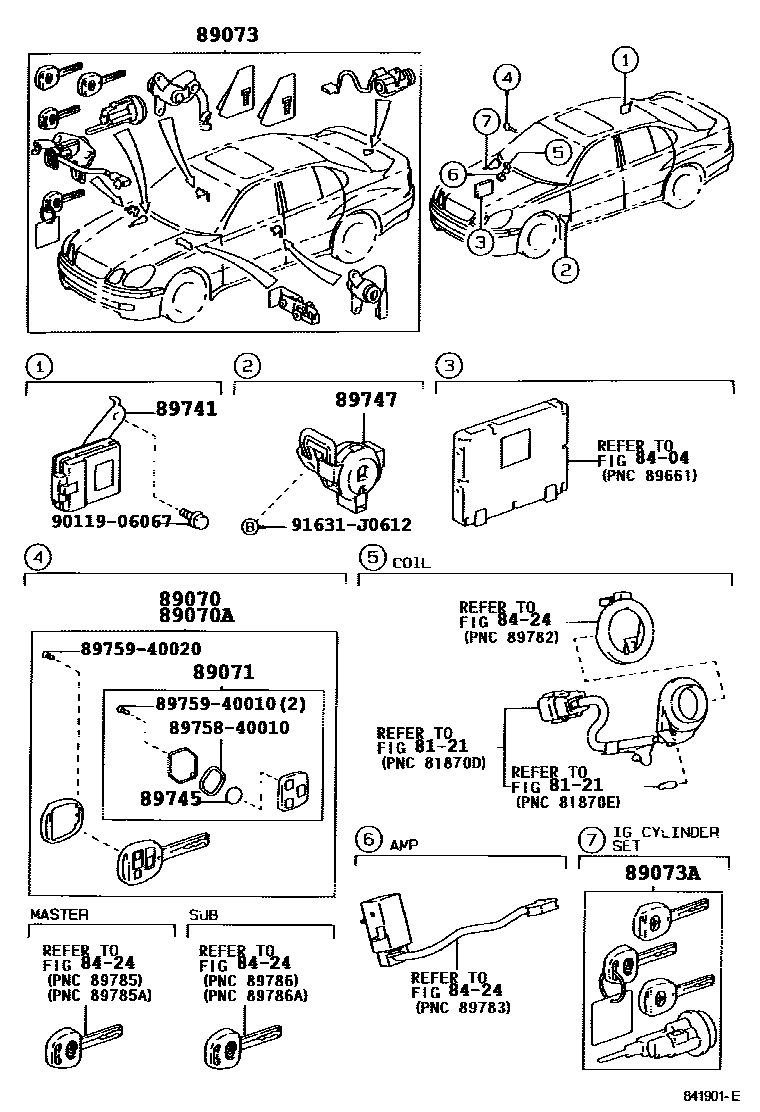

WIRELESS DOOR LOCK
8121
8404
8424
89070TRANSMITTER ASSY, DOOR CONTROL
KOREA SPEC
sub89070-50191
sub89070-50191
SINGAPORE SPEC
HONG KONG SPEC
89070ATRANSMITTER, DOOR CONTROL (CUT KEY)
KOREA SPEC
sub89070-50311
sub89070-50311
SINGAPORE SPEC
HONG KONG SPEC
89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
KOREA SPEC
sub89071-50031
sub89071-50032
sub89071-50041
SINGAPORE SPEC
HONG KONG SPEC
sub89071-50091
CHINA SPEC
89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
sub89073-30440
sub89073-30122
sub89073-30440
sub89073-30122
HONG KONG SPEC
SINGAPORE SPEC
KOREA SPEC
89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)
sub89073-30430
sub89073-30012
sub89073-30430
sub89073-30012
HONG KONG SPEC
SINGAPORE SPEC
KOREA SPEC
89741RECEIVER, DOOR CONTROL
sub89741-30191
sub89741-30231
HONG KONG SPEC
KOREA SPEC
SINGAPORE SPEC
CHINA SPEC
89745BATTERY, TRANSMITTER
89747BUZZER, WIRELESS DOOR LOCK
8975840010PACKING, DOOR CONTROL TRANSMITTER
main89758-40010
8975940010SCREW, DOOR CONTROL TRANSMITTER
main89759-40010
8975940020SCREW, DOOR CONTROL TRANSMITTER
main89759-40020
9011906067
main90119-06067
91631J0612
main91631-J0612
16 parts on this diagram · 4 diagrams in section
