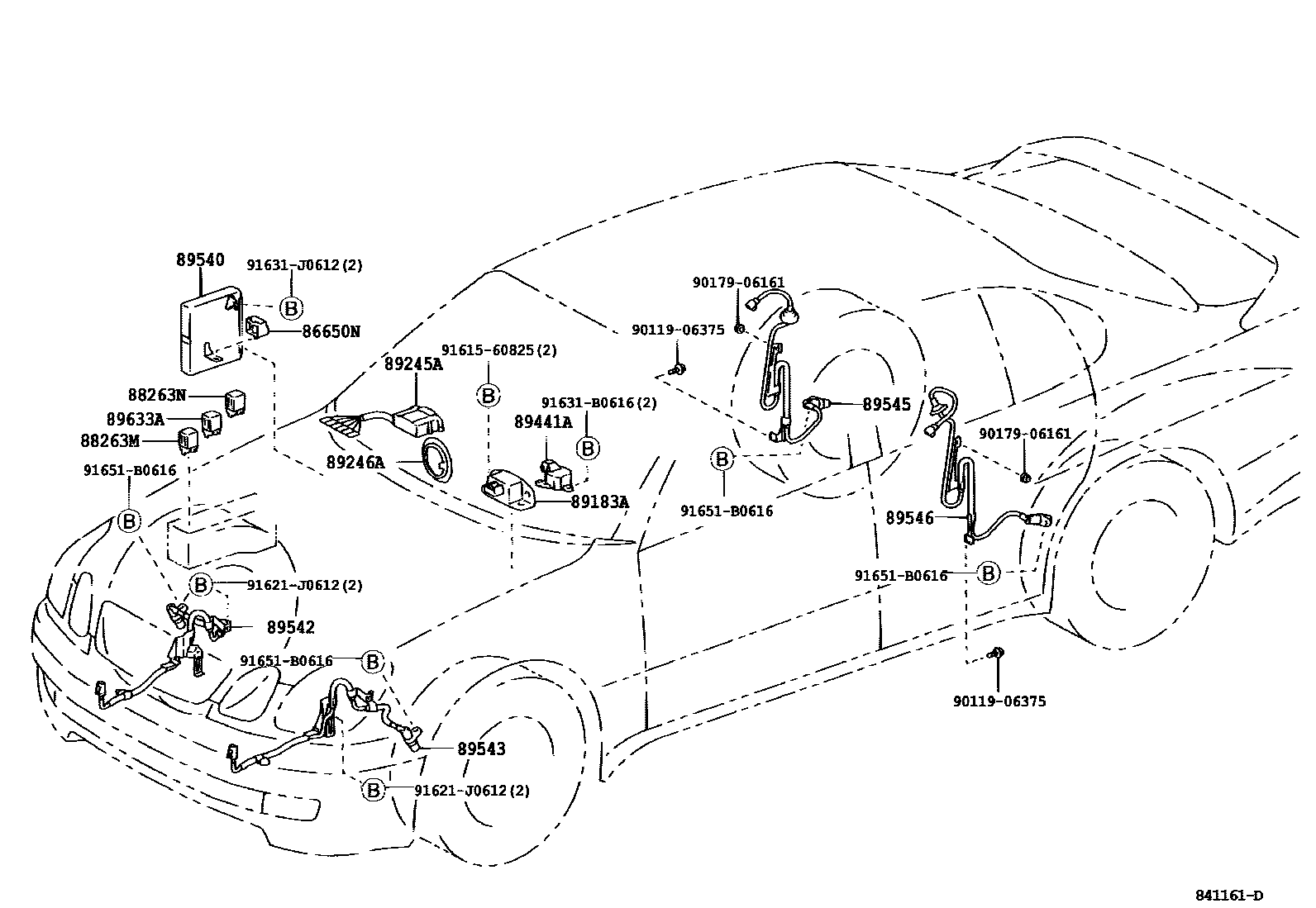

ABS & VSC

0001 1 0002 1

86650NBUZZER ASSY

main86650-30180iJZS160,UZS161199708-200311

sub86652-51010

main86652-51010iJZS160,UZS161200311

88263MRELAY, ABS SOLENOID

main88263-24030iJZS160,UZS161199708

88263NRELAY, ABS MOTOR

main88263-24020iJZS160,UZS161199708

89183ASENSOR, YAWRATE

main89183-30050iJZS160,UZS161199708

89245ASENSOR, STEERING

main89245-30020iJZS160..ARL199708-199905

main89245-30030iJZS160..EUR,GCC199708-199905

main89245-50010iJZS160..ARL199905-200501

main89245-50020iJZS160,UZS161..EUR,GCC199905-200501

89246ADISC, SENSOR STEERING

main89246-30010iJZS160..ARL199708-199905

main89246-30020iJZS160..EUR,GCC199708-199905

main89246-50010iJZS160..ARL199905-200501

main89246-50020iJZS160,UZS161..EUR,GCC199905-200501

89441ASENSOR, DECELERATION

main89441-30050iJZS160,UZS161199708

89540COMPUTER ASSY, SKID CONTROL

main89540-30380iJZS160..RHD199708-199908

main89540-30381iJZS160..RHD199908-200007

main89540-30382iJZS160,UZS161..RHD200007

main89540-30390iJZS160..LHD199708-199908

main89540-30391iJZS160..LHD199908-200007

main89540-30392iJZS160,UZS161..LHD200007

89542SENSOR, SPEED, FRONT RH

main89542-30160iJZS160,UZS161199708-200501

89543SENSOR, SPEED, FRONT LH

main89543-30160iJZS160,UZS161199708-200501

89545SENSOR, SPEED, REAR RH

main89545-30010iJZS160,UZS161199708

89546SENSOR, SPEED, REAR LH

main89546-30010iJZS160,UZS161199708

89633ARELAY, TRACTION CONTROL OR VSC

main89633-24010iJZS160,UZS161199708

9011906375

main90119-06375

9017906161

main90179-06161

9161560825

main91615-60825

91621J0612

main91621-J0612

91631B0616

main91631-B0616

91631J0612

main91631-J0612

91651B0616

main91651-B0616

20 parts on this diagram · 2 diagrams in section
