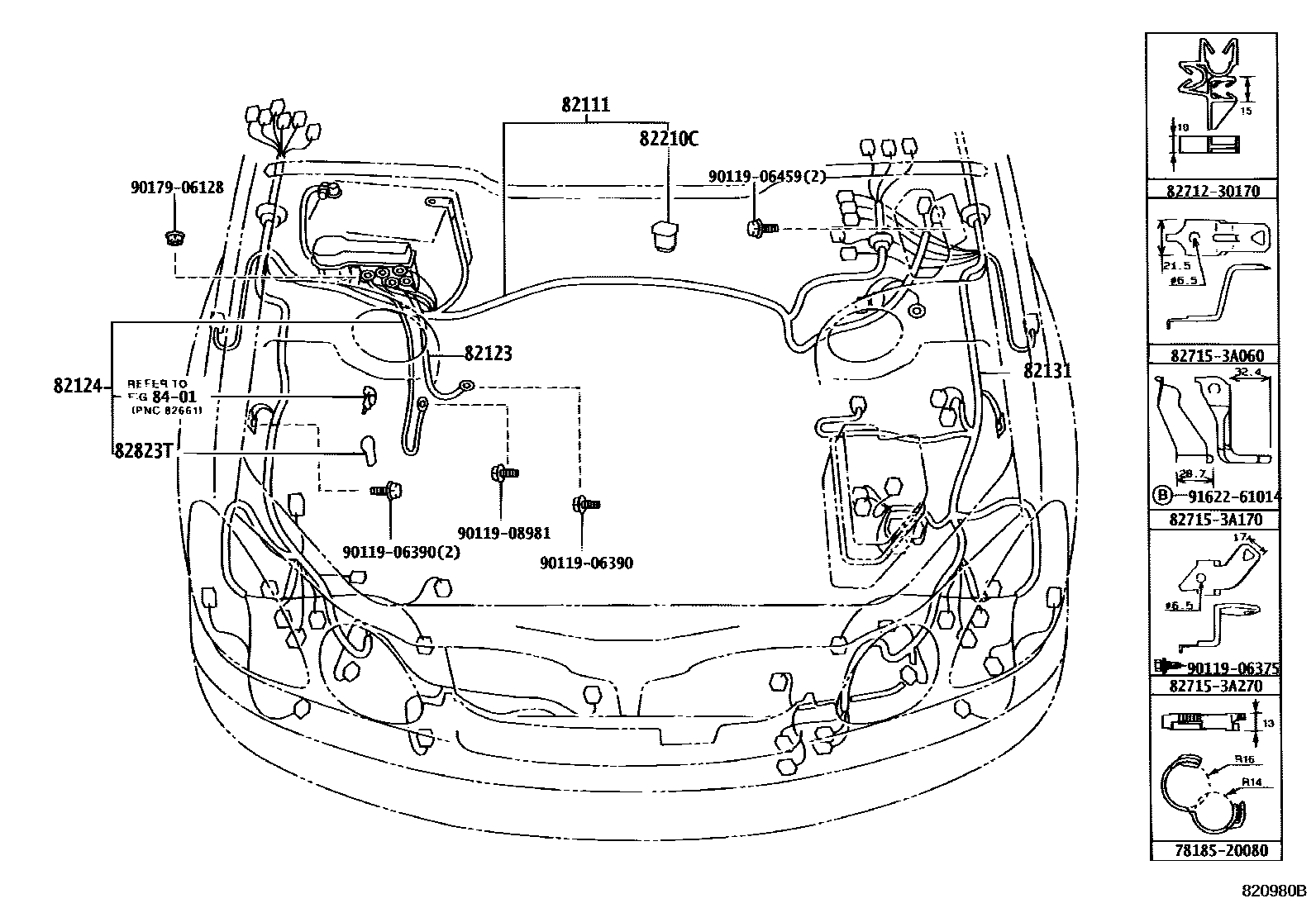

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-3K520i199708-200007
main82111-3K521i200007-200107
main82111-3K522i200107
main82111-3K530i199708-200007
W(DISCHARGE HEADLAMP)
main82111-3K531i200007-200107
W(DISCHARGE HEADLAMP)
main82111-3K532i200107-200208
W(DISCHARGE HEADLAMP)
main82111-3K532i200107
main82111-3K570i199708-200007
main82111-3K571i200007-200107
main82111-3K572i200107
main82111-3K580i199708-200007
W(DISCHARGE HEADLAMP)
main82111-3K581i200007-200107
W(DISCHARGE HEADLAMP)
main82111-3K582i200107
W(DISCHARGE HEADLAMP)
main82111-3K590i199708-200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82111-3K591i200007-200107
W(DAY TIME RUNNING LIGHT SYSTEM)
main82111-3K592i200107
W(DAY TIME RUNNING LIGHT SYSTEM)
main82111-3K600i199708-200007
W(DAY TIME RUNNING LIGHT SYSTEM & DISCHARGE HEADLAMP)
main82111-3K601i200007-200107
W(DAY TIME RUNNING LIGHT SYSTEM & DISCHARGE HEADLAMP)
main82111-3K601i200007-200107
W(DAY TIME RUNNING LIGHT SYSTEM)
main82111-3K602i200107
W(DAY TIME RUNNING LIGHT SYSTEM & DISCHARGE HEADLAMP)
main82111-3K602i200107
W(DAY TIME RUNNING LIGHT SYSTEM)
main82111-3K610i199708-199808
sub82111-3K611
main82111-3K611i199808-200007
main82111-3K620i199708-199808
W(DISCHARGE HEADLAMP)
sub82111-3K621
main82111-3K621i199808-200007
W(DISCHARGE HEADLAMP)
main82111-3K622i200007-200107
main82111-3K623i200107
main82111-3K670i199708-200007
main82111-3K671i200007-200107
main82111-3K672i200107-200208
main82111-3K680i199708-200007
W(DISCHARGE HEADLAMP)
main82111-3K681i200007-200107
W(DISCHARGE HEADLAMP)
main82111-3K682i200107
W(DISCHARGE HEADLAMP)
82123WIRE, ENGINE, NO.3
main82123-30300i199708-199808
sub82123-30301
main82123-30301i199808-200007
main82123-30302i200007
main82123-30310i199708-199808
sub82123-30311
main82123-30311i199808-200007
main82123-30312i200007
main82123-30322i200007
main82123-30340i200007
82124WIRE, ENGINE, NO.4
main82124-30190i199708
main82124-30200i199708
main82124-30210i200007
main82124-30250i200007
82131WIRE, COWL
main82132-30180i199708-199808
main82132-30190i199708-199808
W(DISCHARGE HEADLAMP)
main82132-30200i199708-199808
main82132-30210i199708-199808
W(DISCHARGE HEADLAMP)
main82132-30290i199708-199808
main82132-30300i199708-199808
W(DISCHARGE HEADLAMP)
main82132-30310i199708-199808
W(DAY TIME RUNNING LIGHT SYSTEM)
main82132-30320i199708-199808
W(DAY TIME RUNNING LIGHT SYSTEM & DISCHARGE HEADLAMP)
main82132-30330i199708-199808
main82132-30340i199708-199808
W(DISCHARGE HEADLAMP)
main82132-30390i199808-200007
main82132-30391i200007-200107
main82132-30392i200107-200208
main82132-30393i200208
main82132-30400i199808-200007
W(DISCHARGE HEADLAMP)
main82132-30401i200007-200107
W(DISCHARGE HEADLAMP)
main82132-30402i200107-200208
W(DISCHARGE HEADLAMP)
main82132-30410i199808-200007
main82132-30411i200007-200107
main82132-30412i200107-200208
main82132-30420i199808-200007
W(DISCHARGE HEADLAMP)
main82132-30421i200007-200107
W(DISCHARGE HEADLAMP)
main82132-30422i200107-200208
W(DISCHARGE HEADLAMP)
main82132-30423i200208
main82132-30480i199808-200007
main82132-30481i200007-200107
main82132-30482i200107-200208
main82132-30483i200208
main82132-30490i199808-200007
W(DISCHARGE HEADLAMP)
main82132-30491i200007-200107
W(DISCHARGE HEADLAMP)
main82132-30492i200107-200208
W(DISCHARGE HEADLAMP)
main82132-30493i200208
W(DISCHARGE HEADLAMP)
main82132-30500i199808-200007
W(DAY TIME RUNNING LIGHT SYSTEM)
main82132-30501i200007-200107
W(DAY TIME RUNNING LIGHT SYSTEM)
main82132-30502i200107-200208
W(DAY TIME RUNNING LIGHT SYSTEM)
main82132-30503i200208
W(DAY TIME RUNNING LIGHT SYSTEM)
main82132-30510i199808-200007
W(DAY TIME RUNNING LIGHT SYSTEM & DISCHARGE HEADLAMP)
main82132-30511i200007-200107
W(DAY TIME RUNNING LIGHT SYSTEM & DISCHARGE HEADLAMP)
main82132-30512i200107-200208
W(DAY TIME RUNNING LIGHT SYSTEM & DISCHARGE HEADLAMP)
main82132-30513i200208
W(DAY TIME RUNNING LIGHT SYSTEM & DISCHARGE HEADLAMP)
main82132-30520i199808-200007
main82132-30530i199808-200007
W(DISCHARGE HEADLAMP)
main82132-30531i200007-200107
main82132-30532i200107-200208
main82132-30533i200208
main82132-30590i200007-200107
W(DAY TIME RUNNING LIGHT SYSTEM)
main82132-30591i200107-200208
W(DAY TIME RUNNING LIGHT SYSTEM)
main82132-30592i200208
W(DAY TIME RUNNING LIGHT SYSTEM)
main82132-30600i200007-200107
main82132-30601i200107-200208
main82132-30602i200208
main82132-30610i200007-200107
main82132-30611i200107-200208
main82132-30612i200208
82210CFUSIBLE LINK
main90982-08202i199708-200501
60A,TERM.:MALE,YEL
main90982-08274i199708-200501
120A,TERM.:MALE,WHT
main90982-08280i199708-200501
30A,TERM.:FEMALE,PNK
main90982-08281i199708-200501
40A,TERM.:FEMALE,GRN
main90982-08282i199708-200501
50A,TERM.:FEMALE,RED
82823TCAP, ALTERNATOR TERMINAL
main82823-22070i199708-200501
8401
7818520080SHAFT, ACCELERATOR PEDAL SUPPORT
main78185-20080
8271230170CLAMP, WIRING HARNESS
main82712-30170
827153A060BRACKET,WIRING HARNESS CLAMP
main82715-3A060
827153A170BRACKET,WIRING HARNESS CLAMP
main82715-3A170
827153A270BRACKET,WIRING HARNESS CLAMP
main82715-3A270
9011906375
main90119-06375
9011906390
main90119-06390
9011906459
main90119-06459
9011908981
main90119-08981
9017906128
main90179-06128
9162261014
main91622-61014
