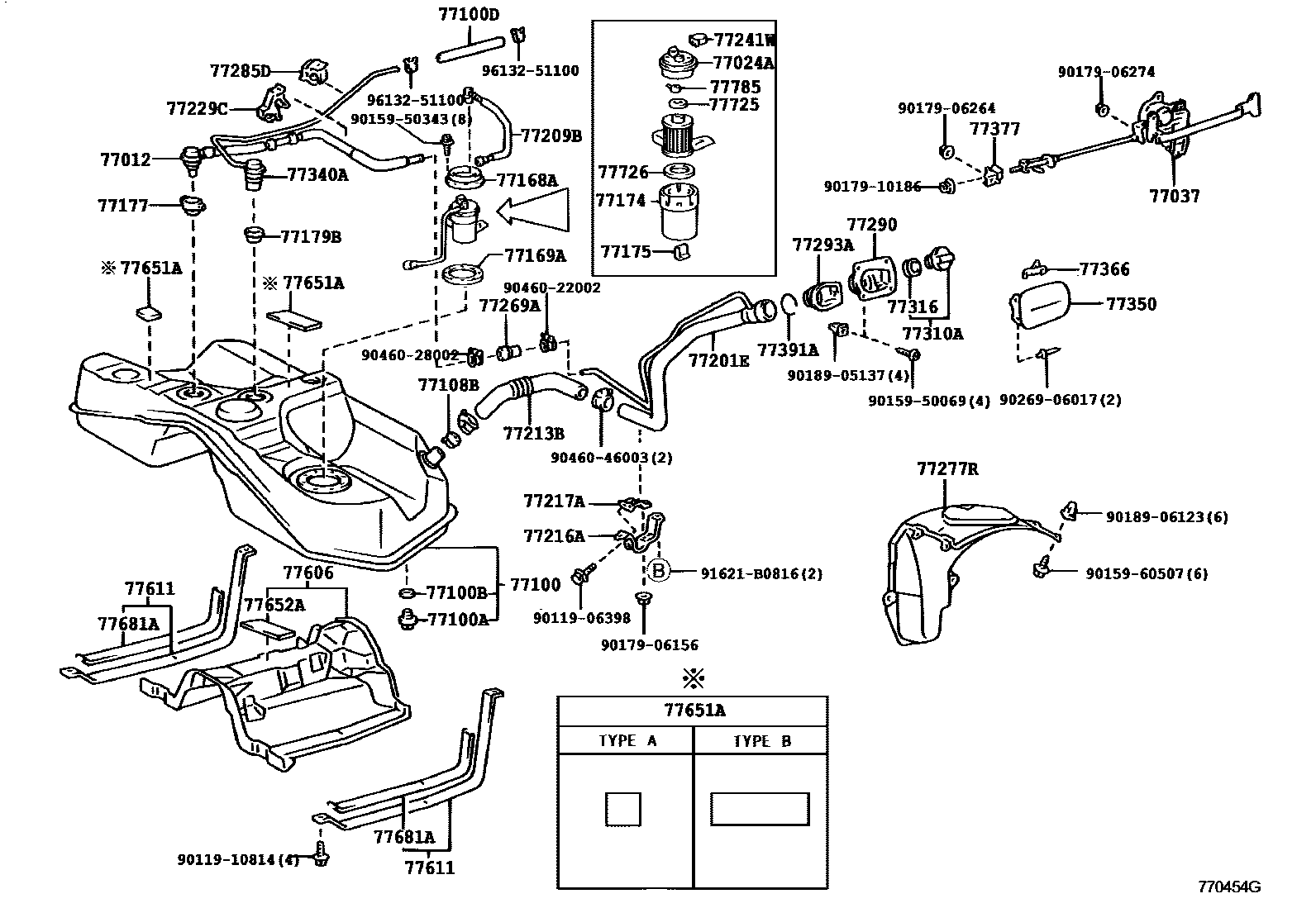

FUEL TANK & TUBE
77024APLATE SUB-ASSY, FUEL SUCTION
77037LOCK SUB-ASSY, FUEL FILLER OPENING LID
77100APLUG(FOR FUEL TANK)
77100BGASKET(FOR FUEL TANK)
77100DHOSE, FUEL, NO.1(FOR FUEL TANK)
77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77175SUPPORT, FUEL SUCTION, NO.2
77177GASKET, CHECK VALVE
77179BGASKET, FUEL TANK EVAPORATION VENT TUBE
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209BTUBE SUB-ASSY, FUEL PUMP
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77229CCLAMP, BREATHER TUBE
77269AHOSE, FUEL TANK BREATHER
77277RPROTECTOR, FUEL TANK FILLER PIPE
77285DCLAMP, FUEL TUBE, NO.1
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77316GASKET, FUEL TANK CAP
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391ARING, FUEL INLET BOX
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77611BAND, FUEL TANK
77651ACUSHION, FUEL TANK, NO.1
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
77652ACUSHION, FUEL TANK, NO.2
77681ASEAT, FUEL TANK BAND
77725CUSHION, FUEL FILTER, NO.1
77726CUSHION, FUEL FILTER, NO.2
9011906398
main90119-06398
9011910814
main90119-10814
9015950069
main90159-50069
9015950343
main90159-50343
9015960507
main90159-60507
9017906156
main90179-06156
9017906264
main90179-06264
9017906274
main90179-06274
9017910186
main90179-10186
9018905137
main90189-05137
9018906123
main90189-06123
9026906017
main90269-06017
9046022002
main90460-22002
9046028002
main90460-28002
9046046003
main90460-46003
91621B0816
main91621-B0816
9613251100
main96132-51100
58 parts on this diagram · 7 diagrams in section
