PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

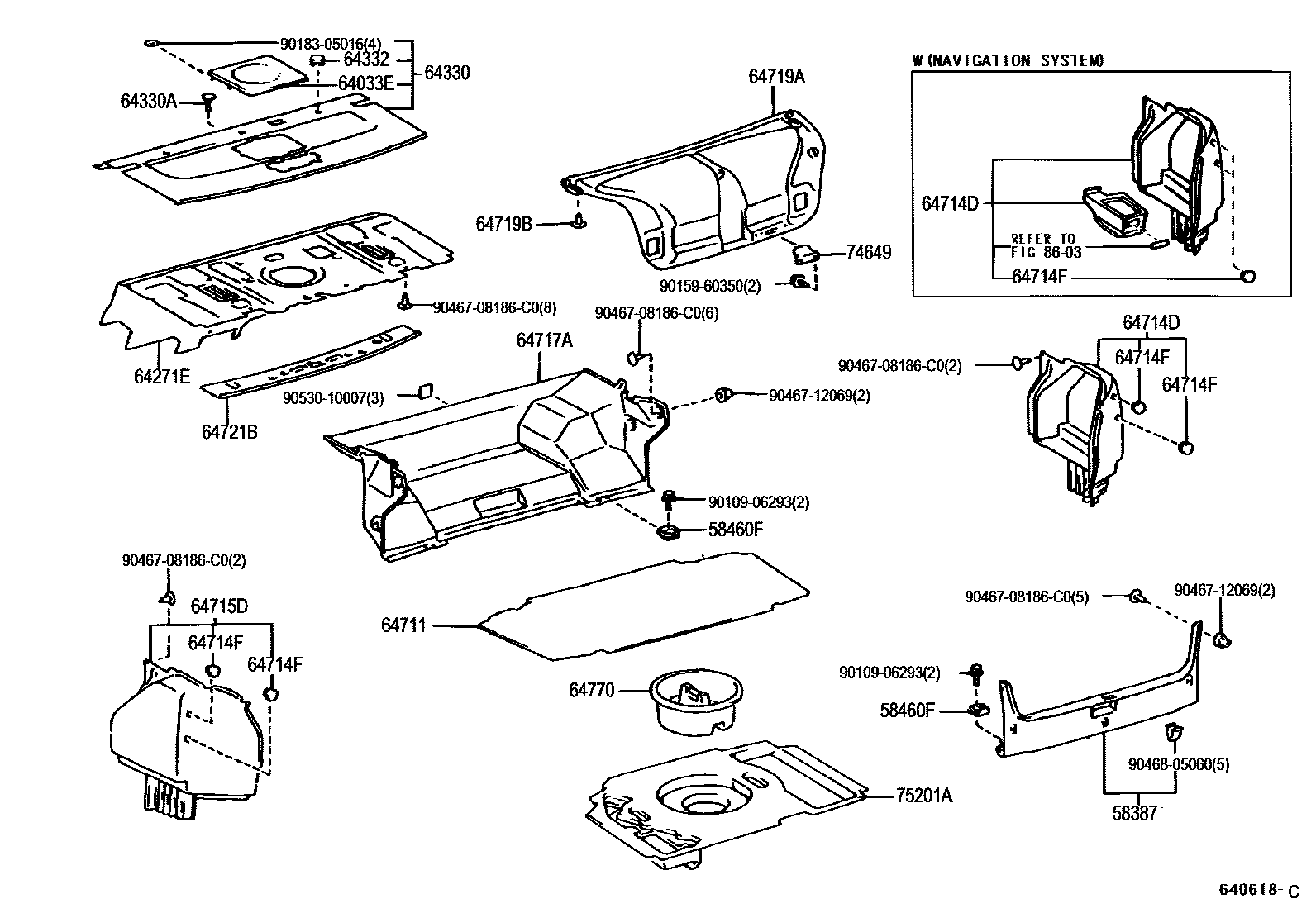

Parts diagram
58387PLATE, REAR FLOOR FINISH
main58387-30110-C0i199708-199904
BLACK,TRIM0#,1#,2#
sub58387-30111
main58387-30110-C0i199708-199904
BLACK,TRIM0#,1#,22,23,24,25,26
sub58387-30111
main58387-30111-C0i199904-200501
BLACK,TRIM0#,1#,2#
main58387-30111-C0i199904-200007
BLACK,TRIM0#,1#,22,23,24,25,26
58460FSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33010i199708-200309
64033EGRILLE SUB-ASSY, REAR SPEAKER
main64033-30070-A0i199708-200501
IVORY,TRIM0#
main64033-30070-B0i199708-200501
MEDIUM CHARCOAL,TRIM1#
main64033-30070-C0i199708-200007
BLACK,TRIM22,23,24,25,26
main64033-30070-C0i199708-200501
BLACK,TRIM2#
64271EPANEL, ROOM PARTITION
main64271-30210i199708-200501
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-3A350-A0i199708-200501
IVORY,TRIM0#
main64330-3A350-B0i199708-200501
MEDIUM CHARCOAL,TRIM1#
main64330-3A350-C0i199708-200007
BLACK,TRIM22,23,24,25,26
main64330-3A350-C0i199708-200501
BLACK,TRIM2#
main64330-3A370-A0i199708-200501
W(REAR SPOILER),IVORY,TRIM0#
main64330-3A370-B0i199708-200501
W(REAR SPOILER),MEDIUM CHARCOAL,TRIM1#
main64330-3A370-C0i199708-200501
W(REAR SPOILER),BLACK,TRIM2#
main64330-3A370-C0i199708-200007
W(REAR SPOILER),BLACK,TRIM22,23,24,25,26
main64330-3A380-A0i199708-199808
IVORY,TRIM0#
sub64330-3A381
main64330-3A380-B0i199708-199808
MEDIUM CHARCOAL,TRIM1#
sub64330-3A381
main64330-3A380-C0i199708-199808
BLACK,TRIM2#
sub64330-3A381
main64330-3A381-A0i199808-199908
IVORY,TRIM0#
sub64330-3A382
sub64332-30220
main64330-3A381-B0i199808-199908
MEDIUM CHARCOAL,TRIM1#
sub64330-3A382
sub64332-30220
main64330-3A381-C0i199808-199908
BLACK,TRIM2#
sub64330-3A382
sub64332-30220
main64330-3A382-A0i199908-200501
IVORY,TRIM0#
sub64330-3A350
main64330-3A382-B0i199908-200501
MEDIUM CHACOAL,TRIM1#
sub64330-3A350
main64330-3A382-C0i199908-200501
BLACK,TRIM2#
sub64330-3A350
main64330-3A390-A0i199708-199808
W(REAR SPOILER),IVORY,TRIM0#
sub64330-3A391
main64330-3A390-B0i199708-199808
W(REAR SPOILER),MEDIUM CHARCOAL,TRIM1#
sub64330-3A391
main64330-3A390-C0i199708-199808
W(REAR SPOILER),BLACK,TRIM2#
sub64330-3A391
main64330-3A391-A0i199808-199908
W(REAR SPOILER),IVORY,TRIM0#
sub64330-3A392
sub64332-30220
main64330-3A391-B0i199808-199908
W(REAR SPOILER),MEDIUM CHARCOAL,TRIM1#
sub64330-3A392
sub64332-30220
main64330-3A391-C0i199808-199908
W(REAR SPOILER),BLACK,TRIM2#
sub64330-3A392
sub64332-30220
main64330-3A392-A0i199908-200501
W(REAR SPOILER),IVORY,TRIM0#
sub64330-3A370
main64330-3A392-B0i199908-200501
W(REAR SPOILER),MEDIUM CHACOAL,TRIM1#
sub64330-3A370
main64330-3A392-C0i199908-200501
W(REAR SPOILER),BLACK,TRIM2#
sub64330-3A370
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-06049-22i199708-200007
BLACK,TRIM0#,1#,22,23,24,25,26
sub90467-06049
main90467-06049-22i199708-200007
BLACK,TRIM0#,1#,2#
sub90467-06049
64332COVER, PACKAGE TRAY TRIM
main64332-30220-A0i199808-199908
IVORY,TRIM0#
sub64332-30220
main64332-30220-B0i199808-199908
MD.CHARCOAL,TRIM1#
sub64332-30220
main64332-30220-C0i199808-199908
BLACK,TRIM2#
sub64332-30220
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-30500-C0i199708-200501
BLACK,TRIM0#,1#,2#
main64711-30510-C0i200208-200501
W(NAVIGATION SYSTEM),BLACK,TRIM0#,1#,2#
main64711-30520-C0i199708-200007
BLACK,TRIM0#,1#,22,23,24,25,26
main64711-30520-C0i200007-200501
BLACK,TRIM0#,1#,2#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
main64071-30100-C0i199708-200501
BLACK,TRIM0#,1#,2#
main64071-30120-C0i200007-200501
BLACK,TRIM0#,1#,2#
main64071-30120-C0i199708-200007
BLACK,TRIM0#,1#,22,23,24,25,26
main64071-30150-C0i200208-200501
W(NAVIGATION SYSTEM),BLACK,TRIM0#,1#,2#
64714FPLUG, HOLE(FOR LUGGAGE COMPARTMENT SIDE COVER)
main90950-01846i199708
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
main64715-30250-C0i199708-200007
BLACK,TRIM0#,1#,22,23,24,25,26
main64715-30250-C0i199708-200501
BLACK,TRIM0#,1#,2#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64075-30010-C0i199708-199712
BLACK,TRIM0#,1#,2#
main64075-30010-C0i199708-199712
BLACK,TRIM0#,1#,22,23,24,25,26
main64075-30011-C0i199712-200308
BLACK,TRIM0#,1#,2#
sub64075-30012
main64075-30011-C0i199712-200007
BLACK,TRIM0#,1#,22,23,24,25,26
sub64075-30012
main64075-30012-C0i200308-200501
BLACK,TRIM0#,1#,2#
main64075-30021-C0i200208-200308
W(NAVIGATION SYSTEM),BLACK,TRIM0#,1#,2#
sub64075-30022
main64075-30022-C0i200308-200501
W(NAVIGATION SYSTEM),BLACK,TRIM0#,1#,2#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-30120-C0i199708-199908
BLACK,TRIM0#,1#,22,23,24,25,26
sub64719-30122
sub90467-08186
main64719-30120-C0i199708-199908
BLACK,TRIM0#,1#,2#
sub64719-30122
sub90467-08186
main64719-30121-C0i199908-200003
BLACK,TRIM0#,1#,2#
sub64719-30122
main64719-30121-C0i199908-200003
BLACK,TRIM0#,1#,22,23,24,25,26
sub64719-30122
main64719-30122-C0i200003-200007
BLACK,TRIM0#,1#,22,23
main64719-30122-C0i200003-200501
BLACK,TRIM0#,1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
main90467-05125-C0i199708-199908
BLACK,TRIM0#,1#,2#
sub90467-05125
main90467-05125-C0i199708-199908
BLACK,TRIM0#,1#,22,23,24,25,26
sub90467-05125
main90467-08186-C0i199908-200501
BLACK,TRIM0#,1#,2#
sub90467-08186
main90467-08186-C0i200007-200208
BLACK,TRIM2#
sub90467-08186
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
main64721-30100-C0i199708-199803
BLACK,TRIM0#,1#,2#
main64721-30100-C0i199708-199803
BLACK,TRIM0#,1#,22,23,24,25,26
main64721-30101-C0i199803-200007
BLACK,TRIM0#,1#,22,23,24,25,26
main64721-30101-C0i199803-200501
BLACK,TRIM0#,1#,2#
64770COVER ASSY, SPARE WHEEL
main64771-24020i199708-199908
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
main74649-30010i199708-200309
75201ABOX, TOOL
main75201-30040i199908-200501
8603
9010906293
main90109-06293
9015960350
main90159-60350
9018305016
main90183-05016
9046708186C0
main90467-08186C0
9046712069
main90467-12069
9046805060
main90468-05060
9053010007
main90530-10007

26 parts on this diagram · 1 diagram in section
