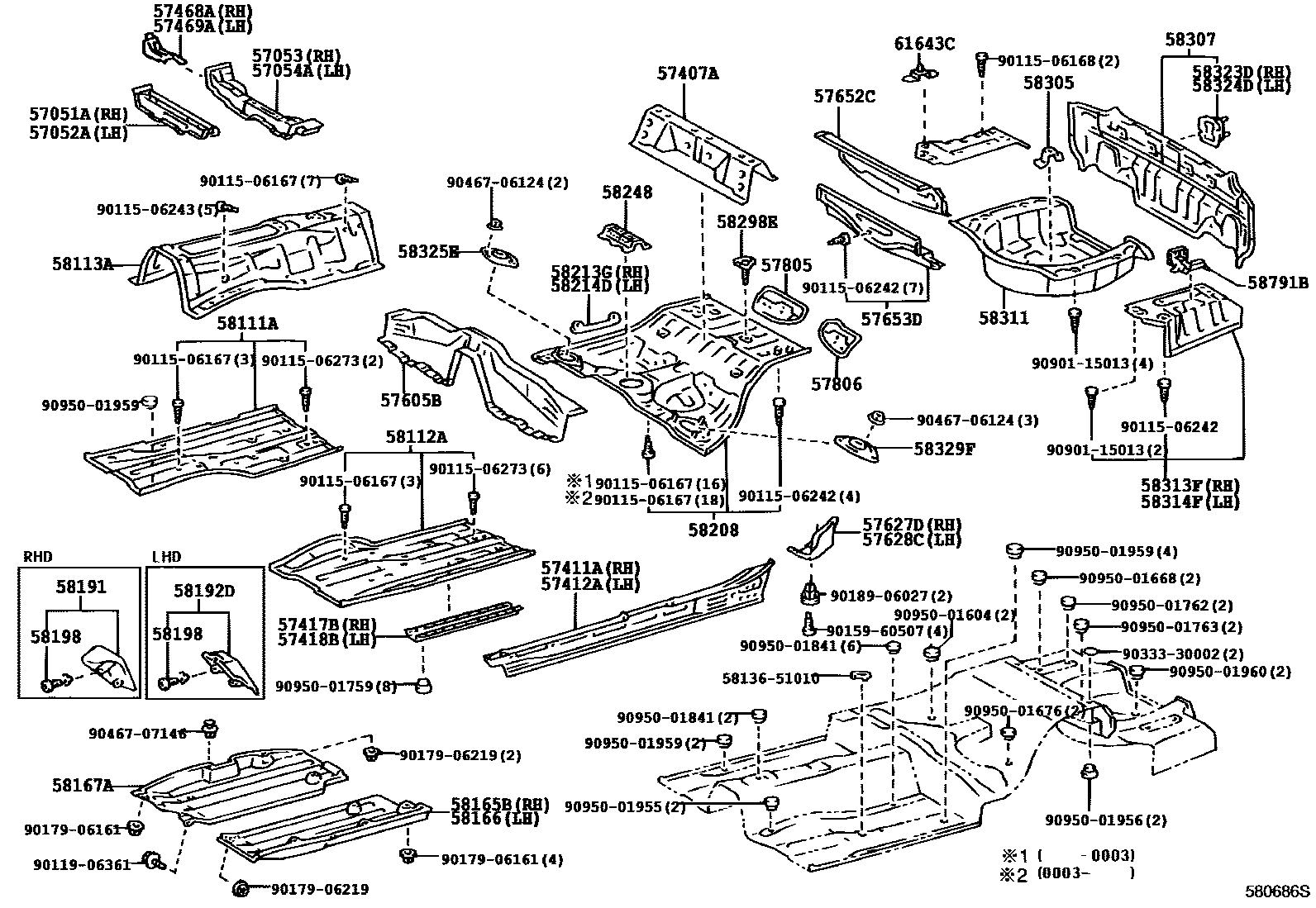

FLOOR PAN & LOWER BACK PANEL

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-30030iJZS160199708-199905

sub57051-30031

main57051-30031iJZS160,UZS161199905

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-30030iJZS160199708-199905

sub57052-30031

main57052-30031iJZS160,UZS161199905

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-30010iJZS160199708-200002

sub57053-30011

main57053-30011iJZS160200002-200004

sub57053-30012

main57053-30012iJZS160,UZS161200004

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-30010iJZS160199708-200002

sub57054-30011

main57054-30011iJZS160200002-200004

sub57054-30012

main57054-30012iJZS160,UZS161200004

57407AMEMBER SUB-ASSY, CENTER FLOOR CROSS

main57407-30120iJZS160199708-199905

sub57407-30121

main57407-30121iJZS160,UZS161199905

57411AMEMBER, FLOOR SIDE, INNER RH

main57411-30110iJZS160,UZS161199708

57412AMEMBER, FLOOR SIDE, INNER LH

main57412-30110iJZS160,UZS161199708

57417BREINFORCEMENT, FRONT FLOOR UNDER

main57417-30050iJZS160199708-199902

sub57417-30051

main57417-30051iJZS160,UZS161199902

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-30020iJZS160199708-199902

sub57418-30021

main57418-30021iJZS160,UZS161199902

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-30070iJZS160199810-200002

sub57468-30071

main57468-30071iJZS160200002-200004

sub57468-30072

main57468-30072iJZS160,UZS161200004

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-30070iJZS160199810-200002

sub57469-30071

main57469-30071iJZS160200002-200004

sub57469-30072

main57469-30072iJZS160,UZS161200004

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-30906iJZS160,UZS161199708-200501

57627DCOVER, REAR FLOOR SIDE MEMBER

main57627-30020iJZS160,UZS161199708

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-30020iJZS160,UZS161199708

57652CMEMBER, REAR FLOOR CROSS, NO.1

main57652-30090iJZS160199708-199905

sub57652-30091

sub90333-30002

main57652-30091iJZS160,UZS161199905-200501

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57653-30901iJZS160,UZS161199708-200501

57805REINFORCEMENT SUB-ASSY, BELT ANCHOR

main57805-30040iJZS160199708-200003

main57805-30041iJZS160200003-200007

sub57805-30042

main57805-30042iJZS160,UZS161200007-200108

sub57805-30043

main57805-30043iJZS160,UZS161200108

57806REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH

main57806-30030iJZS160199708-200003

main57806-30031iJZS160200003-200007

sub57806-30032

main57806-30032iJZS160,UZS161200007-200108

sub57806-30033

main57806-30033iJZS160,UZS161200108

58111APAN, FRONT FLOOR, RH

main58111-30903iJZS160199708-199902

sub58111-30908

main58111-30908iUZS161199708

58112APANEL, FRONT FLOOR, LH

main58112-30903iJZS160199708-199902

sub58112-30908

main58112-30908iUZS161199708

58113APANEL, FRONT FLOOR, CENTER

main58013-30900iJZS160,UZS161..RHD199708

main58013-30901iJZS160,UZS161..LHD199708

58165BCOVER, FRONT FLOOR, RH

main58165-30050iJZS160..EUR,GCC199708

58166COVER, FRONT FLOOR, LH

main58166-30020iJZS160..EUR,GCC199708

58167ACOVER, FRONT FLOOR, CENTER

main58167-30010iJZS160..EUR,GCC199708

58191FOOTREST, FRONT FLOOR

main58191-30050iJZS160,UZS161..RHD199708

58192DFOOTREST, FRONT FLOOR, LH

main58192-30040iJZS160..LHD199708-200007

main58192-30041iJZS160,UZS161..LHD200007

58198CLIP, FOOTREST

main58198-33010iJZS160,UZS161199708

58208PAN, CENTER FLOOR

main58211-30902iJZS160199708-199804

sub58211-30905

main58211-30905iJZS160199804-200003

sub58211-30909

sub90333-25003

main58211-30909iJZS160,UZS161200003

58213GREINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH

main58213-30060iJZS160199708-199909

sub58213-30070

main58213-30070iJZS160,UZS161199909

58214DREINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH

main58214-30030iJZS160199708-199909

sub58214-30040

main58214-30040iJZS160,UZS161199909

58248REINFORCEMENT, REAR SEAT CUSHION LOCK

main58248-30010iJZS160,UZS161199708

58298EBRACKET, HOT AIR INTAKE, NO.1

main58298-30020iJZS160199708-199904

sub58298-30021

main58298-30021iJZS160,UZS161199904

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010iJZS160,UZS161199708-200208

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-30700iJZS160,UZS161199708-200501

58311PAN, REAR FLOOR

main58311-30902iJZS160..ARL,EUR199708-200208

main58311-30903iUZS161;JZS160..ARL,GCC;JZS160..LHD..EUR199708-200208

W(DISCHARGE HEADLAMP)

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-30900iJZS160,UZS161199708

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-30900iJZS160,UZS161199708

58323DREINFORCEMENT, REAR BUMPER ARM SUPPORT

main58323-30030iJZS160,UZS161199708

58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-30010iJZS160,UZS161199708

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-30010iJZS160,UZS161199708

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-30020iJZS160,UZS161199708

58791BCARRIER, JACK

main58791-30030iJZS160,UZS161199708

61643CPATCH, QUARTER WHEEL HOUSE, NO.1

main61643-24010iJZS160,UZS161199708

5813651010COVER, FRONT FLOOR HOLE

main58136-51010

9011506167

main90115-06167

9011506168

main90115-06168

9011506242

main90115-06242

9011506243

main90115-06243

9011506273

main90115-06273

9011906361

main90119-06361

9015960507

main90159-60507

9017906161

main90179-06161

9017906219

main90179-06219

9018906027

main90189-06027

9033330002

main90333-30002

9046706124

main90467-06124

9046707146

main90467-07146

9090115013

main90901-15013

9095001604

main90950-01604

9095001668

main90950-01668

9095001676

main90950-01676

9095001759

main90950-01759

9095001762

main90950-01762

9095001763

main90950-01763

9095001841

main90950-01841

9095001955

main90950-01955

9095001956

main90950-01956

9095001959

main90950-01959

9095001960

main90950-01960

69 parts on this diagram · 1 diagram in section
