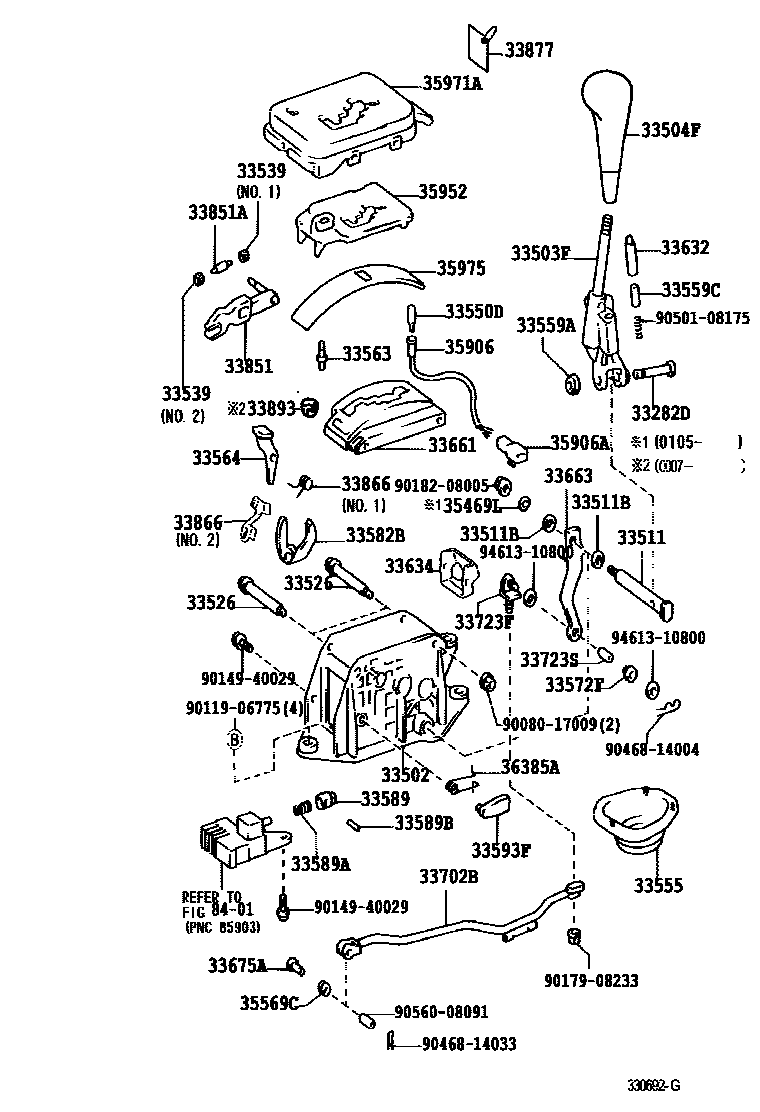

SHIFT LEVER & RETAINER

0001 1 0002 1

33282DPIN, LEVER LOCK, NO.2

main90241-05025iJZS160,UZS161199708

33502PLATE SUB-ASSY, SHIFT LEVER

main33521-30280iJZS160,UZS161..RHD199708

main33521-30290iJZS160,UZS161..LHD199708

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-30160iJZS160..RHD199708-200007

main33055-30161iJZS160,UZS161..RHD200007

main33055-30170iJZS160..LHD199708-200007

main33055-30171iJZS160,UZS161..LHD200007

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-30281-B0iJZS160..EUR200007-200501

LEATHER,DK.CHARCOAL,TRIM1#

sub33504-52090

sub33504-30281

sub33504-22170

main33504-30281-C0iJZS160..EUR200007-200501

LEATHER,BLACK,TRIM2#

sub33504-52090

sub33504-30281

sub33504-22170

main33504-30281-E0iJZS160..EUR200007-200501

LEATHER,SANDAL WOOD,TRIM0#

sub33504-52090

sub33504-30281

sub33504-22170

main33504-30291-B0iJZS160..LHD..EUR199708-200501

WOOD KNOB,DK.CHARCOAL,TRIM1#

sub33504-50050

main33504-30291-C0iJZS160..EUR199708-200007

WOOD KNOB,BLACK,TRIM22,23,24,25,26

sub33504-50050

main33504-30291-C0iUZS161;JZS160..ARL,GCC199708-200501

WOOD KNOB,BLACK,TRIM2#

sub33504-50050

main33504-30291-E0iJZS160..LHD..EUR199708-200501

WOOD KNOB,SANDAL WOOD,TRIM0#

sub33504-50050

main33504-30301-B0iUZS161..RHD200007-200501

BLACK WOOD PACKAGE,DK.CHARCOAL,TRIM1#

sub33504-50050

main33504-30301-C0iUZS161..RHD200007-200501

BLACK WOOD PACKAGE,BLACK,TRIM2#

sub33504-50050

main33504-30301-C0iJZS160..RHD..EUR199810-199912

SPORT PACKAGE(UK),BLACK,TRIM22

sub33504-50050

main33504-30301-C0iJZS160..EUR200001-200006

SPORT PACKAGE(UK/GERMANY),BLACK,TRIM22

sub33504-50050

main33504-30320-B0iJZS160..GCC200001-200007

LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),DK.CHARCOAL,TRIM14

sub33504-30310

main33504-30320-C0iJZS160..LHD..EUR200001-200007

LEXUS 10TH ANNIVERSARY EDITION(EUROPE),BLACK,TRIM22

sub33504-30310

main33504-30320-C0iJZS160..LHD..EUR200001-200007

LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),BLACK,TRIM22

sub33504-30310

main33504-30320-E0iJZS160..GCC200001-200007

LEXUS 10TH ANNIVERSARY EDITION(G.C.C.),SANDAL WOOD,TRIM02

sub33504-30310

33511SHAFT, CONTROL (FOR FLOOR SHIFT)

main33511-30410iJZS160,UZS161199708

33511BBUSH (FOR CONTROL SHAFT)

main35469-30030iJZS160,UZS161199708

33526PLATE, SHIFT LEVER SUPPORT, NO.1

main33526-30020iJZS160,UZS161199708

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-30010iJZS160,UZS161199708

NO.1

main33539-30020iJZS160,UZS161199708

NO.2

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iJZS160,UZS161199708

14V 1.4W

33555BOOT, SHIFT LEVER

main33555-30330iJZS160,UZS161199708

33559ANUT, SHIFT LEVER, NO.1

main33559-30010iJZS160,UZS161199708

33559CDAMPER, SHIFT LEVER SPRING

main33559-30020iJZS160,UZS161199708

33563BUTTON, SHIFT LOCK RELEASE

main33563-30130iJZS160,UZS161199708

33564LINK, SHIFT LOCK RELEASE, NO.1

main33564-30020iJZS160,UZS161199708

33572FBUSH, CONTROL SHAFT LOWER

main33572-30060iJZS160199708-199905

main33572-30070iJZS160199905

33582BSTOPPER, SHIFT LOCK PLATE (FOR FLOOR SHIFT)

main33582-30060iJZS160..RHD199708-200007

sub33582-30061

main33582-30061iJZS160,UZS161..RHD200007

main33582-30070iJZS160..LHD199708-200007

sub33582-30071

main33582-30071iJZS160,UZS161..LHD200007

33589LINK, SHIFT LOCK SOLENOID

main33589-16030iJZS160,UZS161199708

33589ASPRING, COMPRESSION (FOR SHIFT LOCK SOLENOID LINK)

main90501-06087iJZS160,UZS161199708

33589BPIN, SLOTTED SPRING (FOR SHIFT LOCK SOLENOID LINK)

main90254-02006iJZS160,UZS161199708

33593FHOLDER, SPRING (FOR FLOOR SHIFT)

main33593-30040iJZS160,UZS161199708

33632ROD, DETENT, NO.2

main33632-30020iJZS160,UZS161199708

33634PROTECTOR, WIRE

main33634-30060iJZS160,UZS161199708

33661HOUSING, SHIFT LEVER GUIDE

main33661-30040iJZS160,UZS161..LHD199708

main33661-30050iJZS160,UZS161..RHD199708

33663LEVER, CONTROL

main33663-30010iJZS160,UZS161199708

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-30020iJZS160,UZS161200407-200501

main33726-35010iJZS160,UZS161199708-200406

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-30470iUZS161200007

main33702-30480iJZS160199708-199905

main33702-30570iJZS160199905

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-30090iJZS160,UZS161199708-200103

sub33723-30100

main33723-30100iJZS160,UZS161200103

33723SBUSH (FOR CONNECTING ROD SWIVEL)

main33514-30090iJZS160,UZS161199708

33851PLATE, SHIFT LOCK SWITCH

main33851-30010iJZS160,UZS161..RHD199708

main33851-30020iJZS160,UZS161..LHD199708

33851AROLLER (FOR SHIFT LOCK SWITCH)

main90903-61002iJZS160..LHD199708-200007

33866SPRING, SHIFT LOCK RELEASE

main33866-30010iJZS160199708-200007

main33866-30010iJZS160,UZS161200007

NO.1

main33866-30030iJZS160,UZS161200007

NO.2

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-50030iJZS160,UZS161199708

33893CAP, SHIFT LOCK PLATE STOPPER

main33893-30010iJZS160,UZS161200007

35469LSPACER, SHIFT LEVER

main94623-10800iJZS160,UZS161200105

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iJZS160,UZS161199708-200501

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-30090iJZS160,UZS161199708

35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)

main90980-11211iJZS160,UZS161199708

35952LENS, POSITION INDICATOR

main35952-30030iJZS160,UZS161..LHD199708

main35952-30040iJZS160,UZS161..RHD199708

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-30340iJZS160..LHD199708-200007

sub35971-30341

main35971-30341iUZS161..LHD200007

main35971-30350iJZS160..RHD199708-200007

sub35971-30351

main35971-30351iUZS161..RHD200007

main35971-30410iJZS160..RHD200007

main35971-30420iJZS160..LHD200007

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-30240iJZS160,UZS161199708

36385ASPRING, FLOOR SHIFT LEVER TORSION, NO.1

main36385-30020iJZS160,UZS161199708

8401

9008017009

main90080-17009

9011906775

main90119-06775

9014940029

main90149-40029

9017908233

main90179-08233

9018208005

main90182-08005

9046814004

main90468-14004

9046814033

main90468-14033

9050108175

main90501-08175

9056008091

main90560-08091

9461310800

main94613-10800

52 parts on this diagram · 2 diagrams in section
