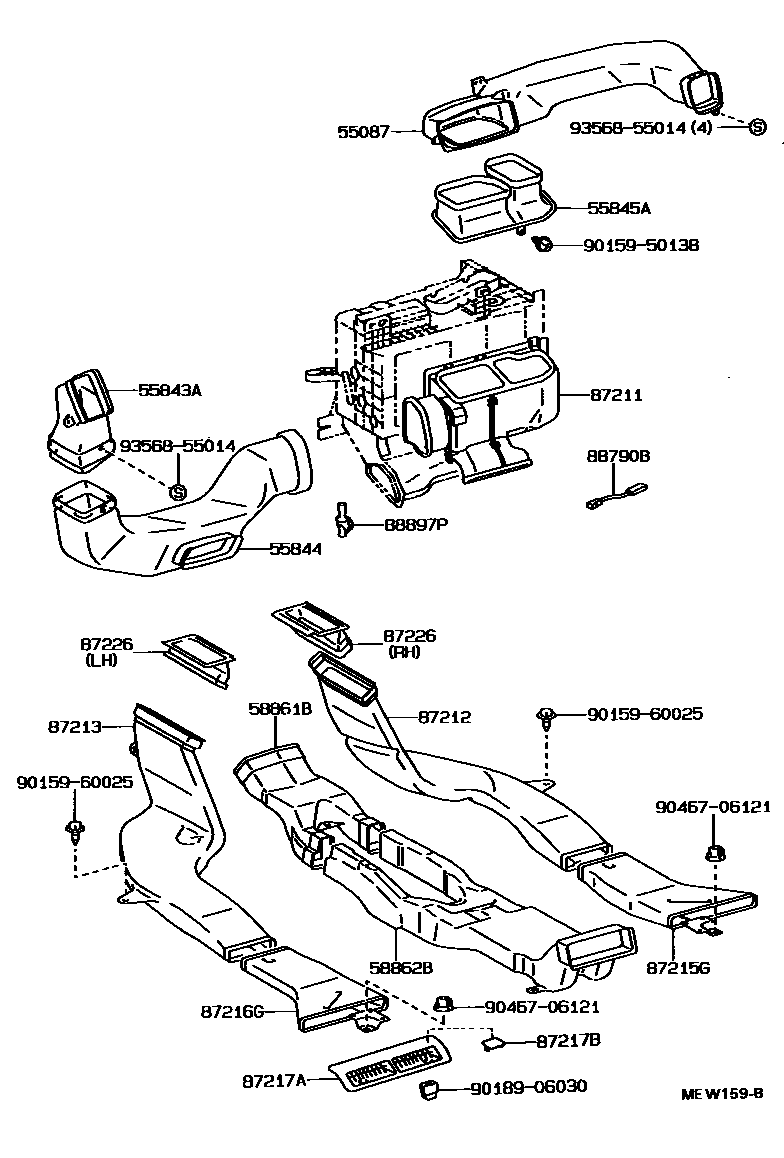

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
55087DUCT SUB-ASSY, HEATER TO REGISTER, NO.4
55843ADUCT, HEATER TO REGISTER, NO.1
55844DUCT, HEATER TO REGISTER, NO.2
55845ADUCT, HEATER TO REGISTER, NO.3
58861BDUCT, CONSOLE BOX, NO.1
58862BDUCT, CONSOLE BOX, NO.2
87211DUCT, AIR, NO.1
87212DUCT, AIR, REAR NO.1
87213DUCT, AIR, REAR NO.2
87215GGUIDE, AIR DUCT, REAR RH
87216GGUIDE, AIR DUCT, REAR LH
87217ADUCT, AIR, REAR NO.6
87217BPLUG, AIR DUCT
88790BTHERMISTOR ASSY
9015950138
main90159-50138
9015960025
main90159-60025
9018906030
main90189-06030
9046706121
main90467-06121
9356855014
main93568-55014
21 parts on this diagram · 4 diagrams in section
