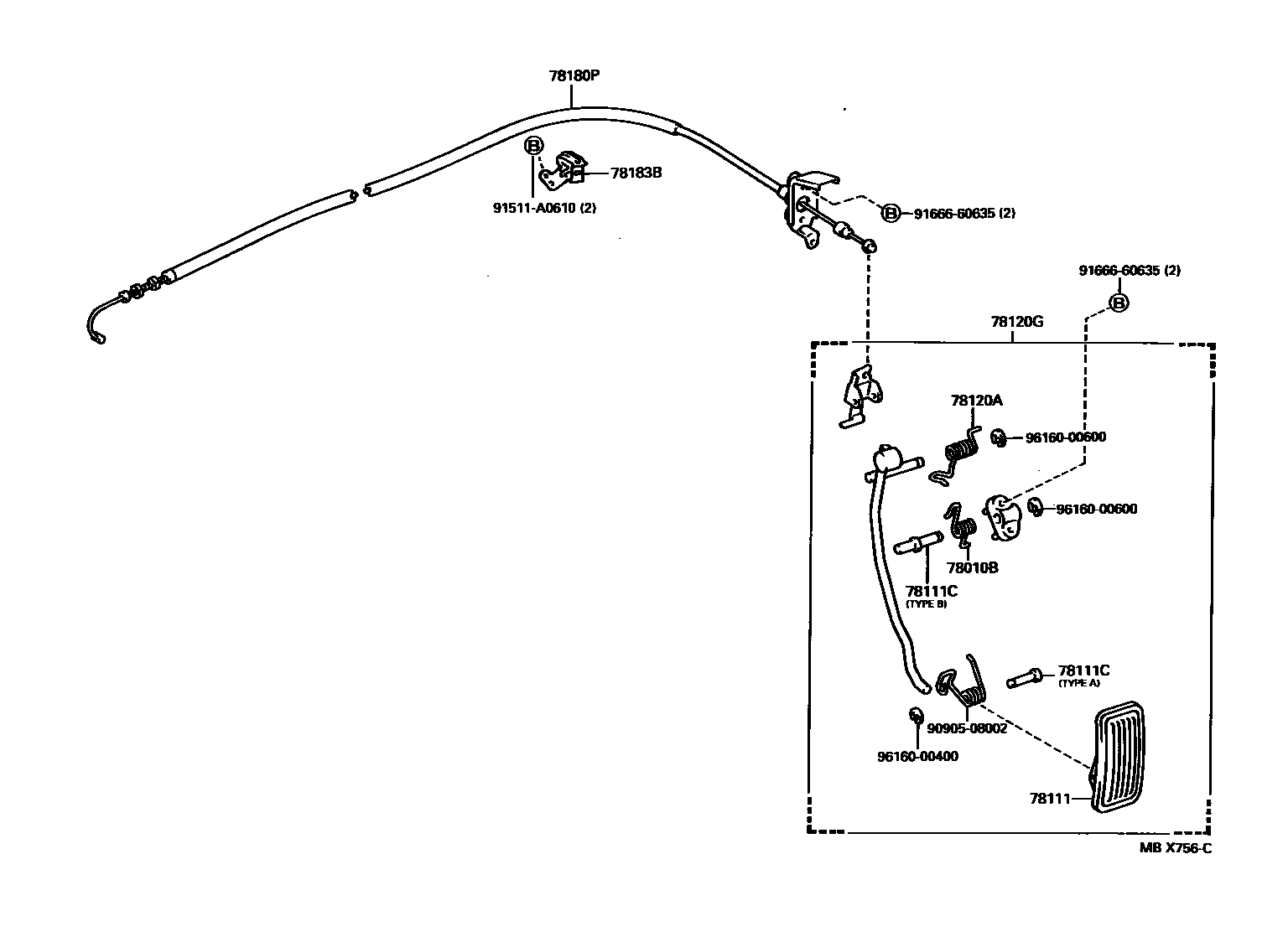

ACCELERATOR LINK

0001 1 0002 1

78010BSPRING, TORSION (FOR ACCELERATOR LINK)

main90508-18103iJZS147199303-199708

78111PEDAL, ACCELERATOR

main78111-12100iJZS147..GCC199303-199708

main78111-30100iJZS147..EUR199308-199708

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iJZS147..GCC199303-199708

TYPE A

main90249-05043iJZS147..EUR199308-199708

TYPE A

main90249-08116iJZS147199303-199708

TYPE B

78120ASPRING, COMPRESSION (FOR ACCELERATOR LINK ROD)

main90508-29022iJZS147..EUR199308-199708

78120GROD ASSY, ACCELERATOR PEDAL

main78120-30760iJZS147..RHD199308-199708

main78120-30780iJZS147..GCC199303-199408

sub78120-30800

main78120-30790iJZS147..LHD..EUR199308-199708

main78120-30800iJZS147..GCC199408-199708

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-3A320iJZS147..RHD199308-199708

main78180-3A470iJZS147..LHD199303-199708

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-24030iJZS147..LHD199303-199708

main78183-30110iJZS147..RHD199308-199708

9090508002

main90905-08002

91511A0610

main91511-A0610

9166660635

main91666-60635

9616000400

main96160-00400

9616000600

main96160-00600

12 parts on this diagram · 2 diagrams in section
