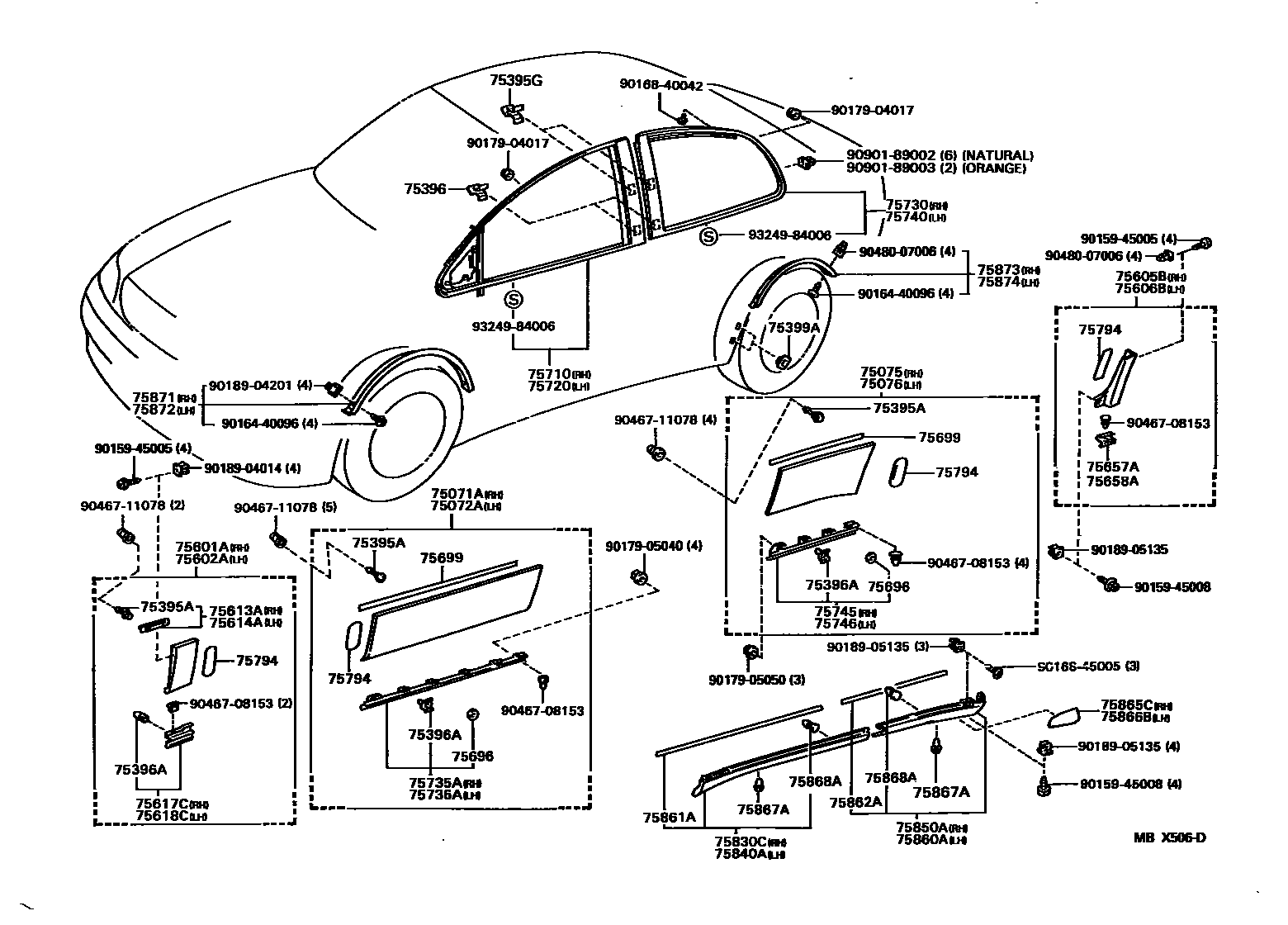

SIDE MOULDING
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SLVR M,046
SILVER ME,199
BLACK,202
SILVER M.,051
WINE RED MICA,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME.,4M9
BLUEISH GREEN MIO,6M2
GRAYISH GREEN M.M.,6N0
DK BLUE MICA FP,8J5
DK.BLUE MC.,8L1
DK.GRAY M.M.,6N9
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SLVR M,046
SILVER ME,199
BLACK,202
SILVER M.,051
WINE RED MICA,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME.,4M9
BLUEISH GREEN MIO,6M2
GRAYISH GREEN M.M.,6N0
DK BLUE MICA FP,8J5
DK. BLUE MC.,8L1
DK. GRAY M.M.,6N9
75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SLVR M,046
SILVER ME,199
BLAK,202
SILVER M.,051
WINE RED MICA,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME.,4M9
BLUEISH GRREN MIO,6M2
GRAYISH GREEN M.M.,6N0
DK BLUE MICA FP,8J5
DK. BLUE MC.,8L1
DK. GRAY M.M.,6N9
75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SLVR M,046
SILVER ME,199
BLACK,202
SILVER M.,051
WINE RED MICA,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME.,4M9
BLUEISH GREEN MIO,6M2
GRAYISH GREEN M.M.,6N0
DK BLUE MICA FP,8J5
DK. BLUE MC.,8L1
DK. GRAY M.M.,6N9
75395ACLIP, OUTSIDE MOULDING, NO.1
75395GCLIP, OUTSIDE MOULDING, NO.1
75396CLIP, OUTSIDE MOULDING, NO.2
75396ACLIP, OUTSIDE MOULDING, NO.2
75399AHOLDER, OUTSIDE MOULDING SEAL
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SLVR M,046
SILVER ME,199
BLACK,202
SILVER M.,051
WINE RED MICA,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME.,4M9
BLUEISH GREEN MIO,6M2
GRAYISH GREEN M.M.,6N0
DK BLUE MICA FP,8J5
DK. BLUE MC.,8L1
DK. GRAY M.M.,6N9
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SLVR M,046
SILVER ME,199
BLACK,202
SILVER M.,051
WINE RED MICA,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME.,4M9
BLUEISH GREEN MIO,6M2
GRAYISH GREEN M.M.,6N0
DK BLUE MICA FP,8J5
DK. BLUE MC.,8L1
DK. GRAY M.M.,6N9
75605BMOULDING SUB-ASSY, QUARTER OUTSIDE, RH
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SLVR M,046
SILVER ME,199
BLACK,202
SILVER M.,051
WINE RED MICA,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME.,4M9
BLUEISH GREEN MIO,6M2
GRAYISH GREEN M.M.,6N0
DK BLUE MICA FP,8J5
DK. BLUE MC.,8L1
DK. GRAY M.M.,6N9
75606BMOULDING SUB-ASSY, QUARTER OUTSIDE, LH
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SLVR M,046
SILVER ME,199
BLACK,202
SILVER M.,051
WINE RED MICA,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME.,4M9
BLUEISH GREEN MIO,6M2
GRAYISH GREEN M.M.,6N0
DK BLUE MICA FP,8J5
DK. BLUE MC.,8L1
DK. GRAY M.M.,6N9
75613AMOULDING, FRONT FENDER, FRONT RH
75614AMOULDING, FRONT FENDER, FRONT LH
75617CMOULDING, FRONT FENDER, LOWER REAR RH
75618CMOULDING, FRONT FENDER, LOWER REAR LH
75657AMOULDING, QUARTER PANEL, LOWER REAR RH
75658AMOULDING, QUARTER PANEL, LOWER REAR LH
75696PAD, BODY OUTSIDE MOULDING, NO.1
75699PAD, BODY OUTSIDE MOULDING, NO.4
FR
75730MOULDING ASSY, REAR DOOR BELT, RH
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
75740MOULDING ASSY, REAR DOOR BELT, LH
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
75794PAD, FRONT DOOR OUTSIDE MOULDING, REAR
75830CMOULDING ASSY, ROCKER PANEL, FRONT RH
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SLVR M,046
SILVER ME,199
BLACK,202
SILVER M.,051
WINE RED MICA,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME.,4M9
BLUEISH GREEN MIO,6M2
GRAYISH GREEN M.M.,6N0
DK BLUE MICA FP,8J5
DK. BLUE MC.,8L1
DK. GRAY M.M.,6N9
75840AMOULDING ASSY, ROCKER PANEL, FRONT LH
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SLVR M,046
SILVER ME,199
BLACK,202
SILVER M.,051
WINE RED MICA,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME.,4M9
BLUEISH GREEN MIO,6M2
GRAYISH GREEN M.M.,6N0
DK BLUE MICA FP,8J5
DK. BLUE MC.,8L1
DK. GRAY M.M.,6N9
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SLVR M,046
SILVER ME,199
BLACK,202
SILVER M.,051
WINE RED MICA,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME.,4M9
BLUEISH GREEN MIO,6M2
GRAYISH GREEN M.M.,6N0
DK BLUE MICA FP,8J5
DK. BLUE MC.,8L1
DK. GRAY M.M.,6N9
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
SUPER SILVER 3 M,176
DK.BL.GRAY ME,183
SLVR M,046
SILVER ME,199
BLACK,202
SILVER M.,051
WINE RED MICA,3J8
MAGENTA MC.,3L3
BEIGE ME,4K9
BEIGE ME.,4M9
BLUEISH GREEN MIO,6M2
GRAYISH GREEN M.M.,6N0
DK BLUE MICA FP,8J5
DK. BLUE MC.,8L1
DK. GRAY M.M.,6N9
75861APROTECTOR, ROCKER PANEL MOULDING, NO.1
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
75865CPROTECTOR, ROCKER PANEL MOULDING, NO.5
75866BPROTECTOR, ROCKER PANEL MOULDING, NO.6
75867ACLIP, ROCKER PANEL MOULDING
75868AMOULDING, FRONT FENDER WHEEL OPENING, NO.2 RH
75871MOULDING, FRONT FENDER WHEEL OPENING, RH
75872MOULDING, FRONT FENDER WHEEL OPENING, LH
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
9015945005
main90159-45005
9015945008
main90159-45008
9016440096
main90164-40096
9016840042
main90168-40042
9016845005
main90168-45005
9017904017
main90179-04017
9017905040
main90179-05040
9017905050
main90179-05050
9018904014
main90189-04014
9018904201
main90189-04201
9018905135
main90189-05135
9046708153
main90467-08153
9046711078
main90467-11078
9048007006
main90480-07006
9090189002
main90901-89002
9090189003
main90901-89003
9324984006
main93249-84006
61 parts on this diagram · 1 diagram in section
