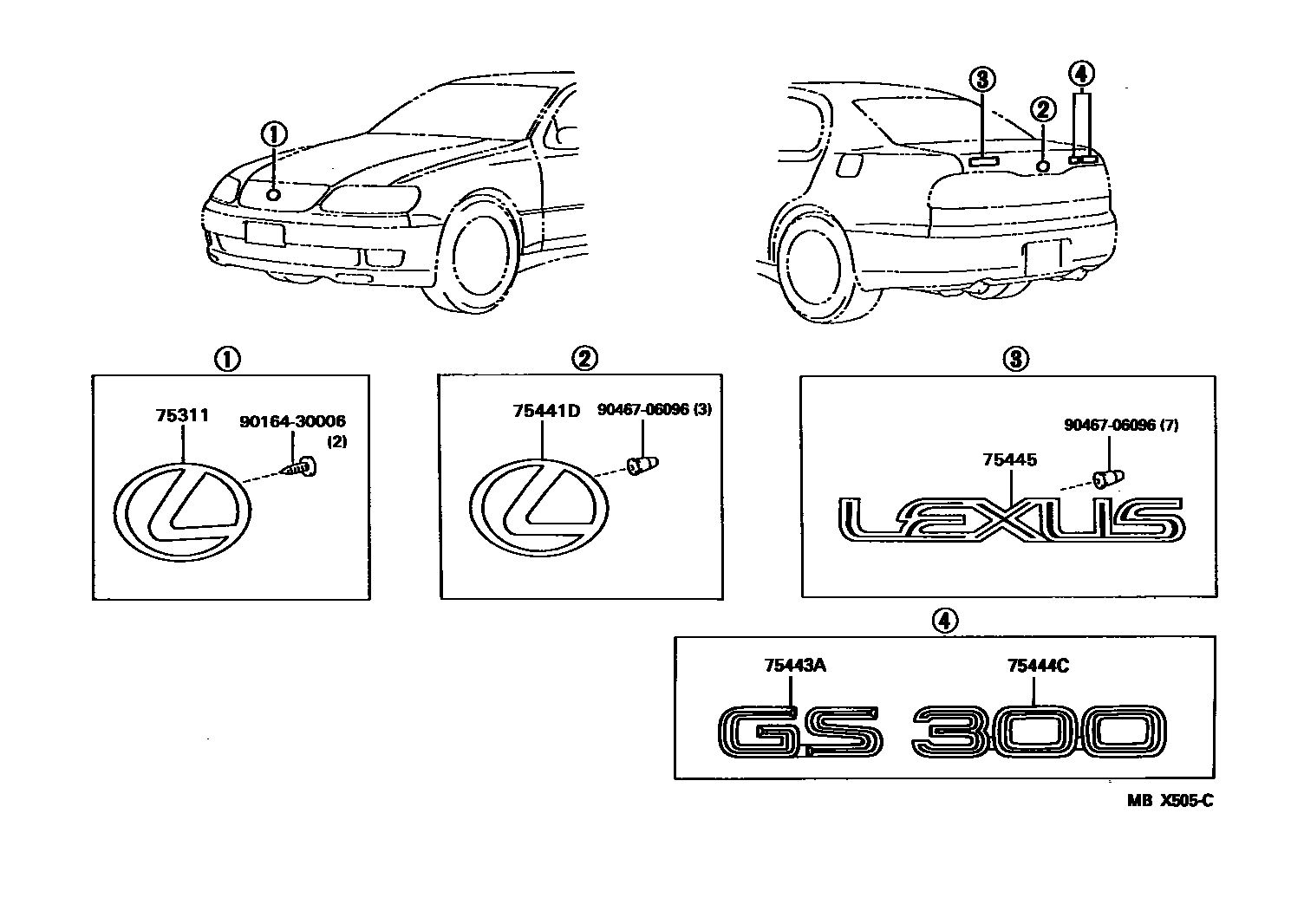

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-30270iJZS147199303-199708

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75314-24020iJZS147199308-199708

sub75431-30220

main75442-30160iJZS147199303-199308

sub75314-24020

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-30240iJZS147..GCC199508-199708

GS

75444CPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.4

main75443-30250iJZS147..GCC199508-199708

300

sub75443-30300

75445PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5

main75441-30360iJZS147199303-199708

LEXUS

9016430006

main90164-30006

9046706096

main90467-06096

7 parts on this diagram · 1 diagram in section
