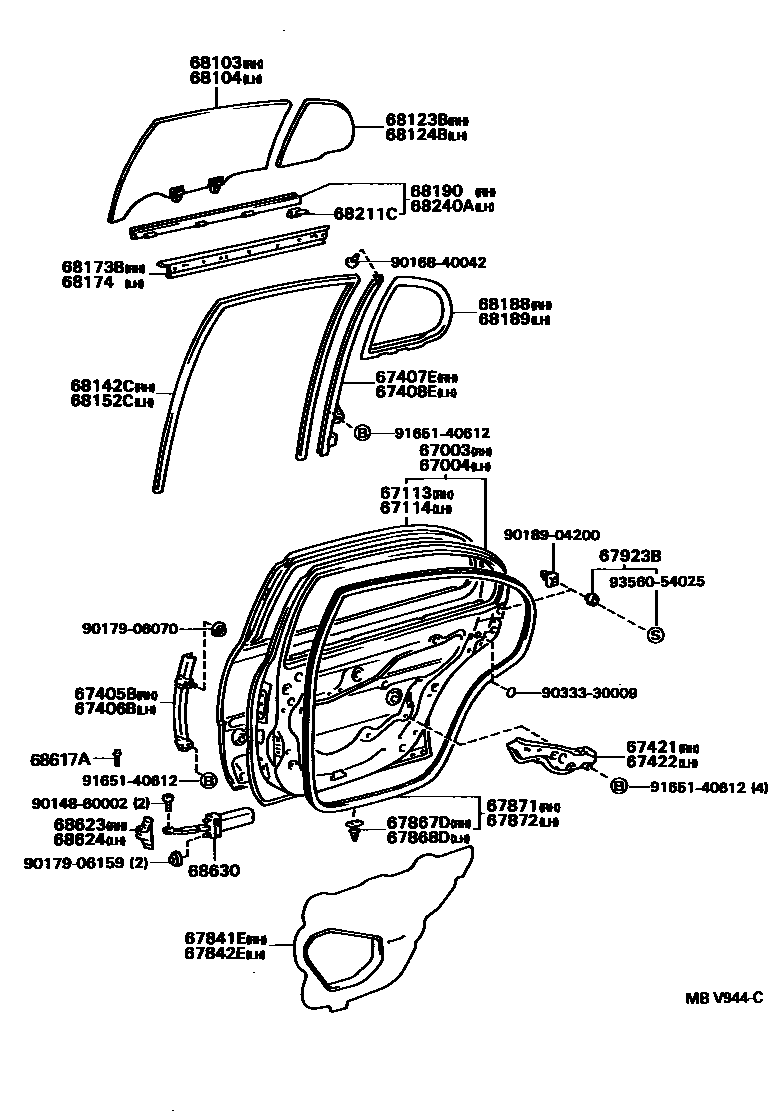

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
67004PANEL SUB-ASSY, REAR DOOR, LH
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67405BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH
67406BGUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67421FRAME, REAR DOOR WINDOW, FRONT UPPER RH
67422FRAME, REAR DOOR WINDOW, FRONT UPPER LH
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
sub67867-30060
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67923BCUSHION, REAR DOOR STIFFENER, NO.1
sub67923-24030
68103GLASS SUB-ASSY, REAR DOOR, RH
*TEM,T=3.5,GRAY
*TEM,T=3.5,BRONZE
68104GLASS SUB-ASSY, REAR DOOR, LH
*TEM,T=3.5,GRAY
*TEM,T=3.5,BRONZE
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
*TEM,T=3.5,GRAY
*TEM,T=3.5,BRONZE
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
*TEM,T=3.5,GRAY
*TEM,T=3.5,BRONZE
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH
68174WEATHERSTRIP, REAR DOOR GLASS, INNER LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68211CCLIP(FOR REAR DOOR GLASS WEATHERSTRIP)
68240AWEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH
68617APIN, REAR DOOR CHECK
68623COVER, DOOR CHECK, RH
68624COVER, DOOR CHECK, LH
68630CHECK ASSY, REAR DOOR
RH
LH
9014860002
main90148-60002
9016840042
main90168-40042
9017906070
main90179-06070
9017906159
main90179-06159
9018904200
main90189-04200
9033330009
main90333-30009
9165140612
main91651-40612
9356054025
main93560-54025
42 parts on this diagram · 4 diagrams in section
