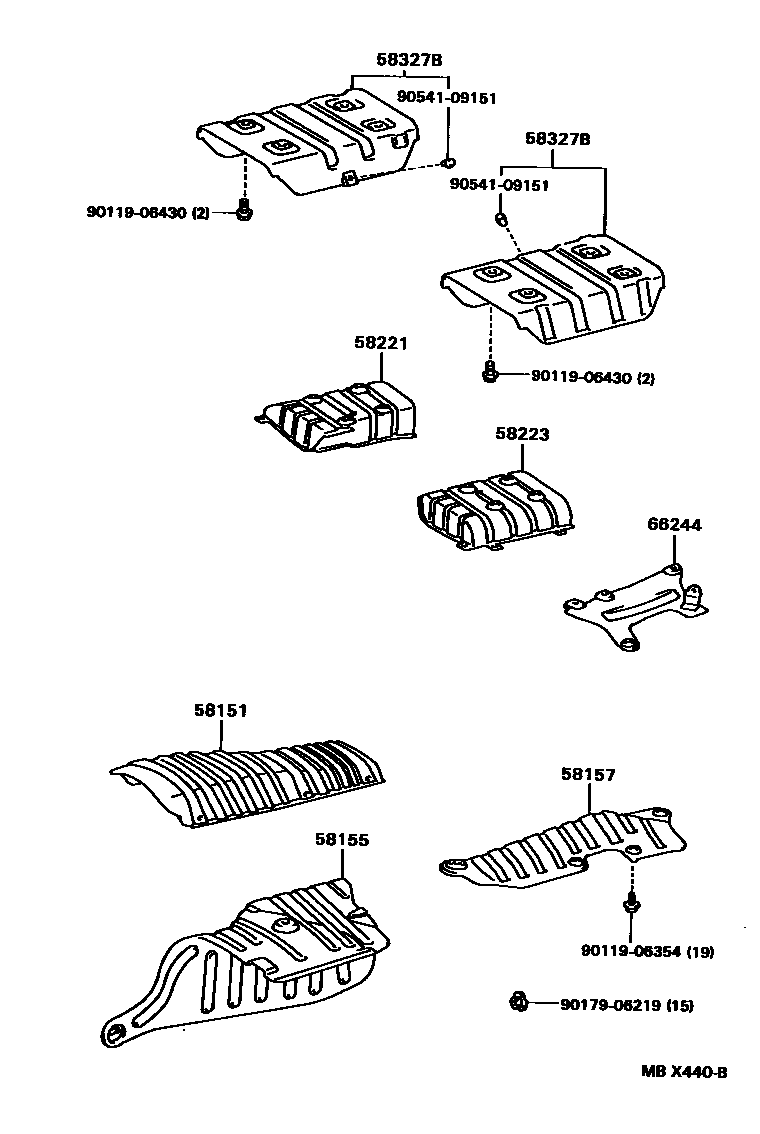

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-30050iJZS147199303-199708

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-30020iJZS147199303-199708

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-30030iJZS147199303-199708

58221INSULATOR, CENTER FLOOR HEAT, NO.1

main58221-30040iJZS147199303-199708

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-30070iJZS147199303-199708

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-30010iJZS147199303-199708

RH

main58328-30010iJZS147199303-199708

LH

66244PROTECTOR, REAR BODY, NO.2

main66244-30010iJZS147199303-199708

9011906354

main90119-06354

9011906430

main90119-06430

9017906219

main90179-06219

9054109151

main90541-09151

11 parts on this diagram · 1 diagram in section
