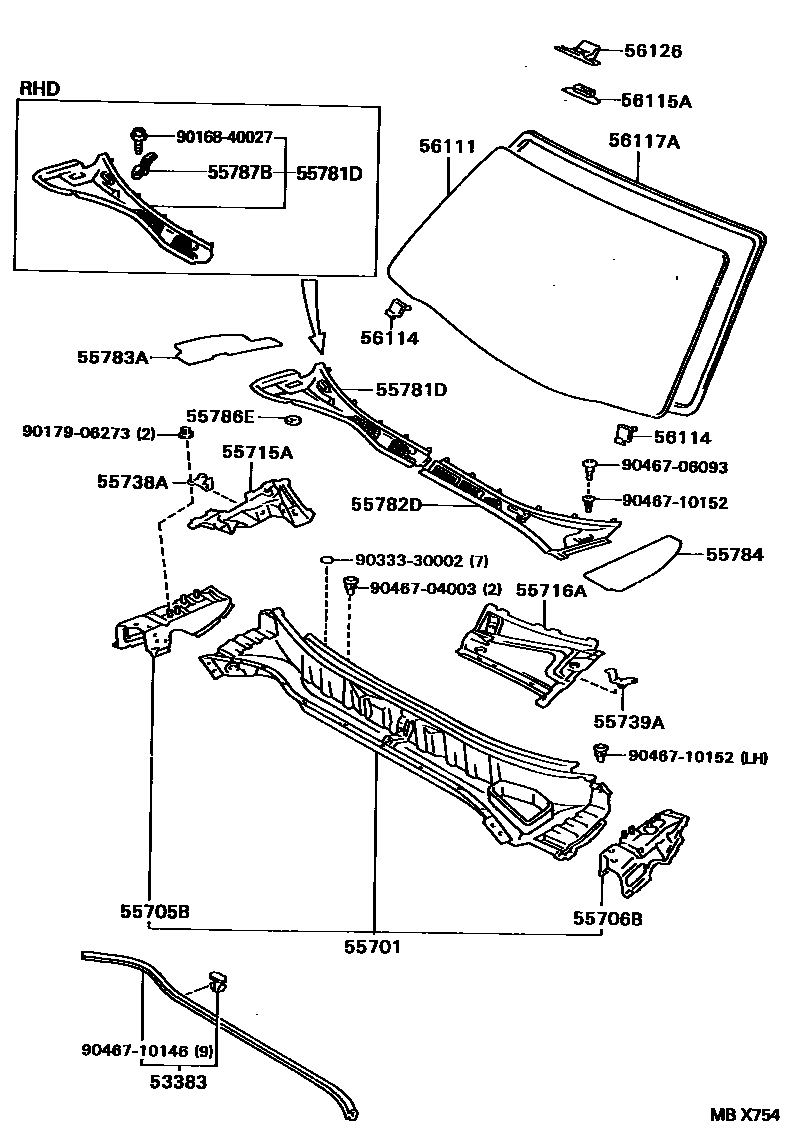

COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55738ASTOPPER, HOOD, RH
55739ASTOPPER, HOOD, LH
55781DLOUVER, COWL TOP VENTILATOR, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
55783APAD, COWL TOP SILENCER
55784PAD, COWL OUTER PANEL, NO.1
55786EPLATE, COWL TOP VENTILATOR LOUVER
55787BARM, SIDE VENTILATOR MALE
56111GLASS, WINDSHIELD
*TL,T=4.7,BRONZE
*TL,T=4.7,BRONZE
56114RETAINER, WINDSHIELD GLASS
sub56114-50020
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56117ADAM, WINDOW GLASS ADHESIVE
56126SPACER, WINDSHIELD GLASS, NO.2
9016840027
main90168-40027
9017906273
main90179-06273
9033330002
main90333-30002
9046704003
main90467-04003
9046706093
main90467-06093
9046710146
main90467-10146
9046710152
main90467-10152
26 parts on this diagram · 1 diagram in section
