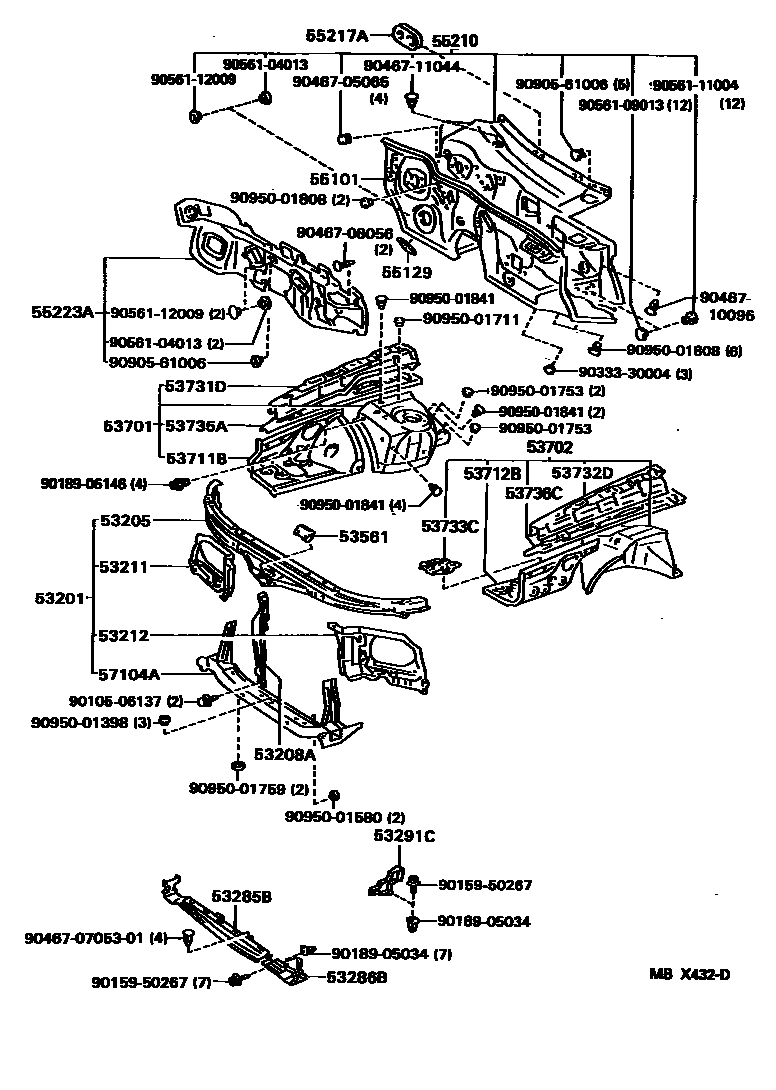

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
53286BSEAL, RADIATOR SIDE AIR, NO.2
53291CSEAL, RADIATOR SUPPORT TO FRAME
RH
LH
53561GUIDE, HOOD AUXILIARY CATCH HOOK
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
sub53712-30913
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733CPATCH, FRONT FENDER APRON
53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH
55101PANEL SUB-ASSY, DASH
55129COVER, DASH PANEL HOLE
RH
LH
55217ARETAINER, DASH PANEL SILENCER
55223AINSULATOR, DASH PANEL, OUTER
57104AMEMBER SUB-ASSY, FRONT CROSS
9010506137
main90105-06137
9015950267
main90159-50267
9018905034
main90189-05034
9018906146
main90189-06146
9033330004
main90333-30004
9046705065
main90467-05065
904670705301
main90467-0705301
9046708056
main90467-08056
9046710096
main90467-10096
9046711044
main90467-11044
9056104013
main90561-04013
9056109013
main90561-09013
9056111004
main90561-11004
9056112009
main90561-12009
9090561006
main90905-61006
9095001398
main90950-01398
9095001580
main90950-01580
9095001711
main90950-01711
9095001753
main90950-01753
9095001759
main90950-01759
9095001808
main90950-01808
9095001841
main90950-01841
46 parts on this diagram · 1 diagram in section
