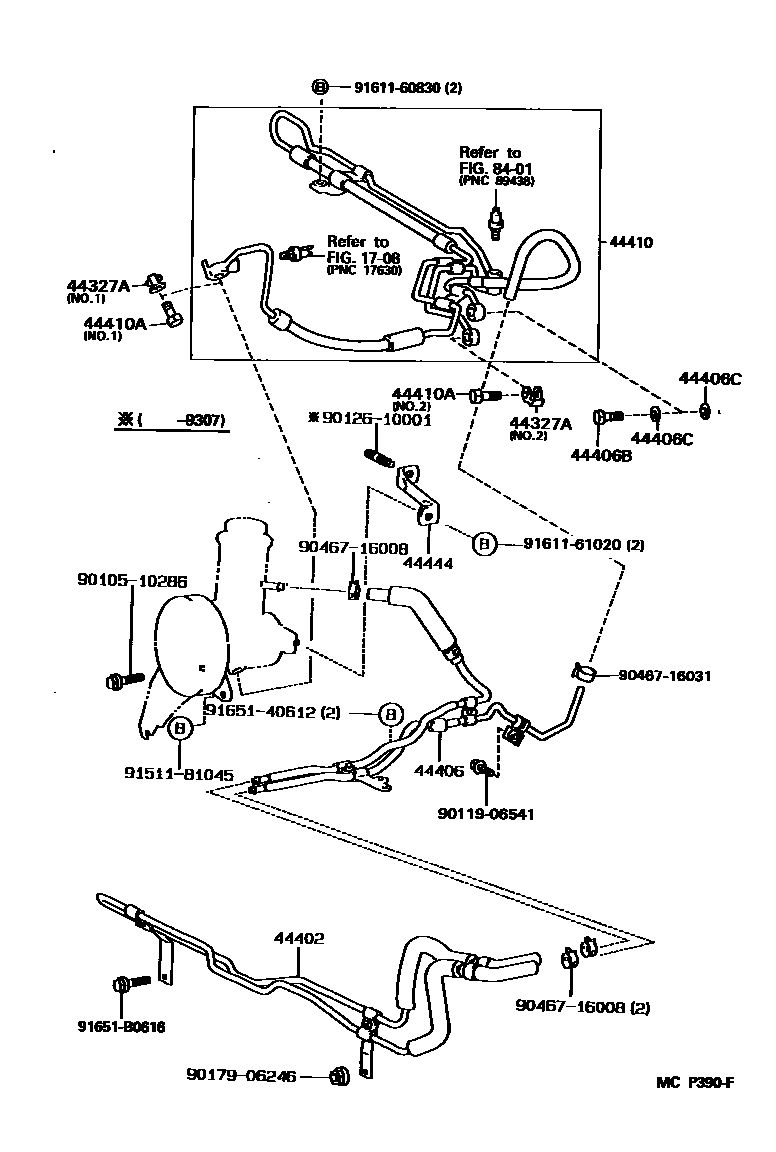

POWER STEERING TUBE

0001 1 0002 1

1708

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iJZS147199303-199308

NO.2

main44327-26020iJZS147199303-199308

NO.1

main44327-30030iJZS147199308-199708

NO.2

main44327-30040iJZS147199308-199708

NO.1

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-30151iJZS147..RHD199308-199708

main44402-30190iJZS147..LHD199303-199708

44406TUBE SUB-ASSY, RETURN

main44406-30081iJZS147..RHD199308-199508

main44406-30082iJZS147..RHD199508-199708

main44406-30130iJZS147..LHD199303-199508

main44406-30131iJZS147..LHD199508-199708

44406BBOLT, UNION(FOR RETURN TUBE)

main90401-17002iJZS147199303-199308

sub96341-11703

main96341-11703iJZS147199308-199708

sub90401-17005

44406CGASKET(FOR RETURN TUBE)

main90430-17005iJZS147199303-199308

main90430-17006iJZS147199308-199708

44410TUBE ASSY, PRESSURE FEED

main44410-30221iJZS147..RHD199308-199708

main44410-30320iJZS147..LHD199303-199708

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16013iJZS147199303-199308

NO.2

main90401-16014iJZS147199303-199708

NO.1

main96341-41603iJZS147199308-199708

NO.2

44444STAY, PUMP, REAR

main44444-30100iJZS147199303-199708

8401

9010510286

main90105-10286

9011906541

main90119-06541

9012610001

main90126-10001

9017906246

main90179-06246

9046716008

main90467-16008

9046716031

main90467-16031

9151181045

main91511-81045

9161160830

main91611-60830

9161161020

main91611-61020

9165140612

main91651-40612

91651B0616

main91651-B0616

21 parts on this diagram · 2 diagrams in section
