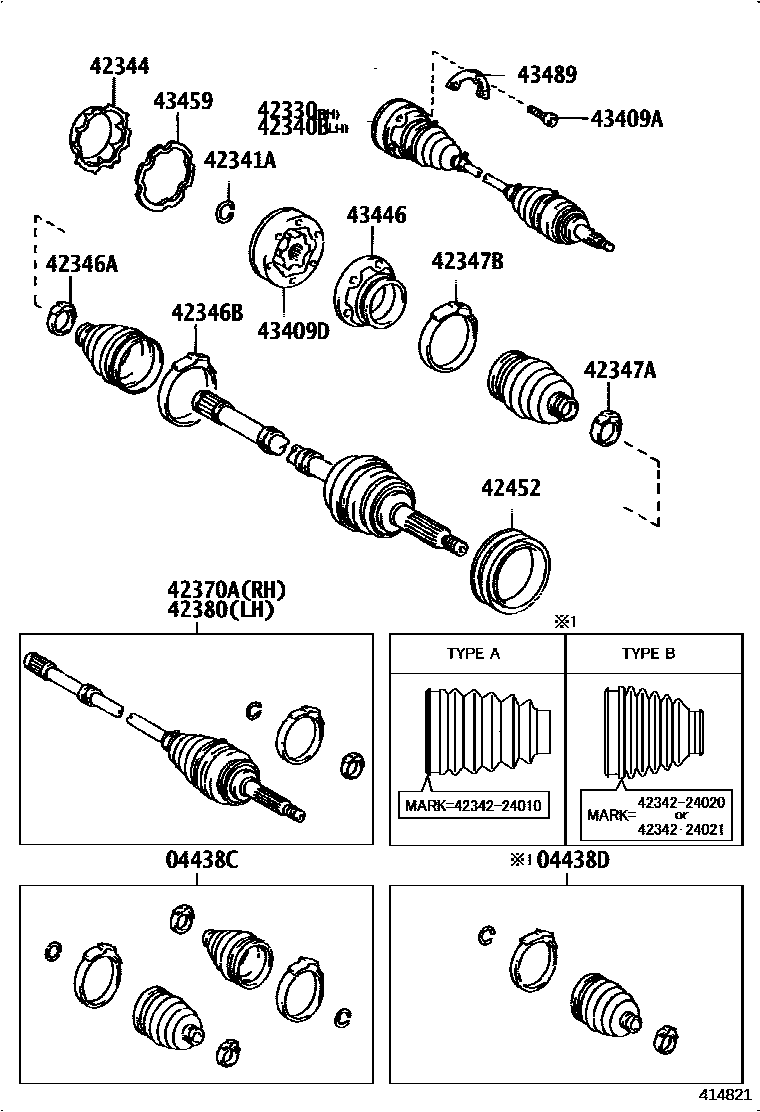

REAR AXLE SHAFT & HUB

0001 1 0002 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-24020iJZS147199303-199308

sub04437-24021

main04437-24021iJZS147199308-199404

sub04437-24040

main04437-24040iJZS147199404-199708

sub04437-24041

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-24010iJZS147199303-199308

TYPE A:REFER ILLUST.

sub04437-24011

main04437-24011iJZS147199308-199404

TYPE A:REFER ILLUST.

sub04437-24030

main04437-24030iJZS147199404-199708

sub04437-24031

main04437-24050iJZS147199303-199404

TYPE B:REFER ILLUST.

42330SHAFT ASSY, REAR DRIVE, RH

main42330-24020iJZS147..RHD;JZS147..GCC199303-199708

main42330-24020iJZS147..LHD..EUR199508-199708

W/O(*TRC)

main42330-24030iJZS147..LHD..EUR199308-199708

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-24050iJZS147..RHD;JZS147..GCC199303-199708

main42340-24050iJZS147..LHD..EUR199508-199708

W/O(*TRC)

main42340-24060iJZS147..LHD..EUR199308-199708

42341ARING, SNAP (FOR REAR DRIVE SHAFT)

main90520-26028iJZS147199305-199708

main90520-27052iJZS147199303-199305

42344COVER, REAR AXLE INBOARD JOINT END

main42344-50011iJZS147199303-199708

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01837iJZS147199303-199708

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01838iJZS147199303-199708

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main90949-01837iJZS147199303-199708

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main90949-01838iJZS147199303-199708

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-29106iJZS147199303-199308

sub42370-29107

main42370-29107iJZS147..RHD;JZS147..GCC199308-199404

main42370-29108iJZS147..RHD;JZS147..GCC199404-199708

sub42370-29725

main42370-29108iJZS147..LHD..EUR199508-199708

W/O(*TRC)

sub42370-29725

main42370-29117iJZS147..LHD..EUR199308-199404

main42370-29118iJZS147..LHD..EUR199404-199708

sub42370-29119

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42380-29026iJZS147199303-199308

sub42380-29027

main42380-29027iJZS147..RHD;JZS147..GCC199308-199404

main42380-29028iJZS147..RHD;JZS147..GCC199404-199708

sub42380-29245

main42380-29028iJZS147..LHD..EUR199508-199708

W/O(*TRC)

sub42380-29245

main42380-29037iJZS147..LHD..EUR199308-199404

main42380-29038iJZS147..LHD..EUR199404-199708

sub42380-29039

42452DEFLECTOR, REAR WHEEL BEARING DUST, NO.2

main42453-50010iJZS147199303-199708

43409ABOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)

main90110-12003iJZS147199303-199708

43409DJOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE

main43409-24010iJZS147199303-199708

43446COVER, REAR AXLE INBOARD JOINT

main43446-24020iJZS147199303-199708

43459GASKET, REAR AXLE INBOARD JOINT END COVER

main43459-50011iJZS147199303-199708

43489WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT

main43489-50010iJZS147199303-199708

18 parts on this diagram · 2 diagrams in section
