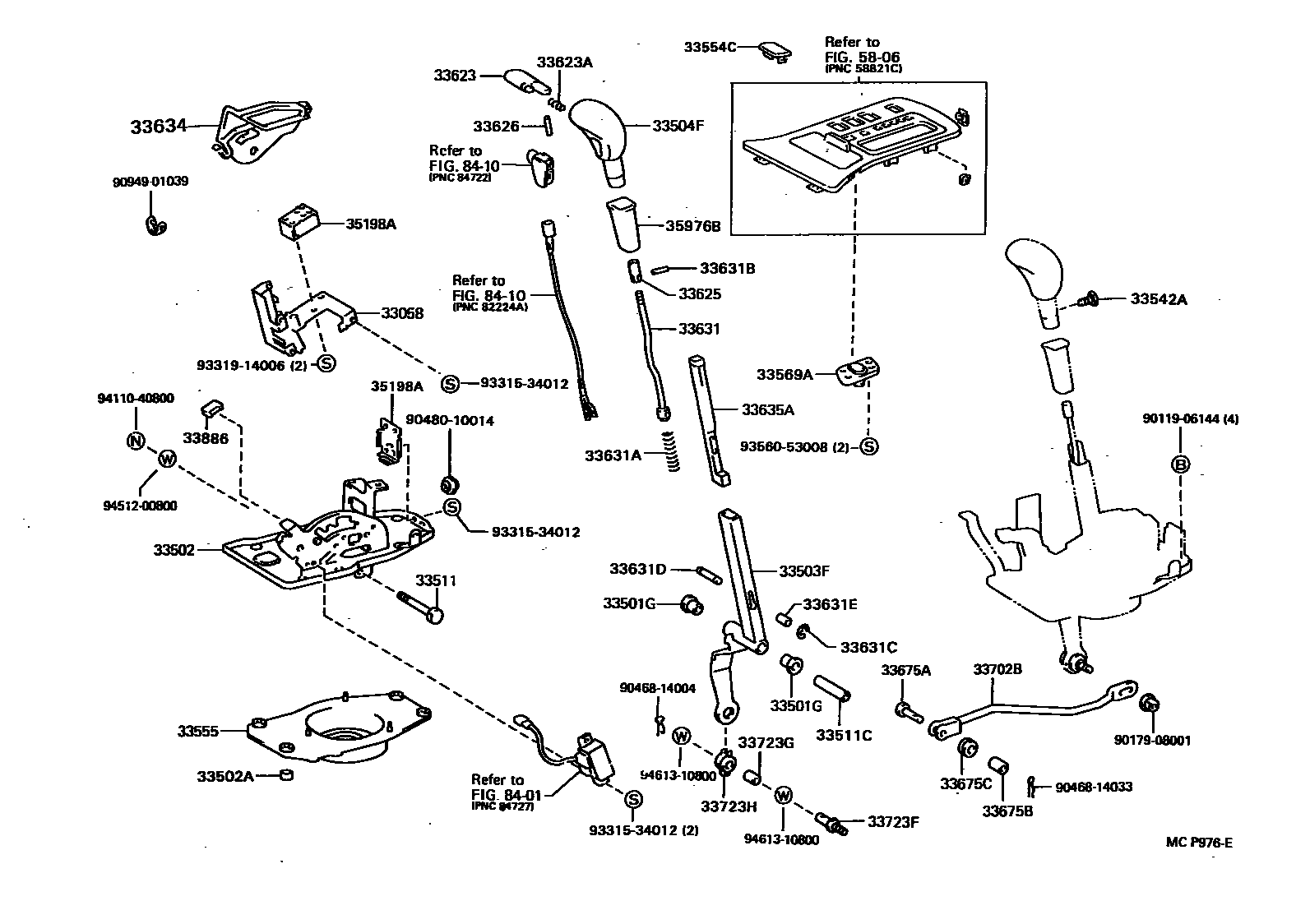

SHIFT LEVER & RETAINER
33058BRACKET SUB-ASSY, SHIFT LOCK SOLENOID
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33502PLATE SUB-ASSY, SHIFT LEVER
33502ACOLLAR (FOR FLOOR SHIFT SETTING)
OD=10.8,ID=6.8
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33511CCOLLAR (FOR CONTROL SHAFT)
33542ASCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB)
33554CCOVER, SHIFT LOCK RELEASE BUTTON
33569AGUIDE, SHIFT LOCK RELEASE BUTTON
33623BUTTON, SHIFT LEVER KNOB
33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)
33625SLEEVE, SHIFT LEVER KNOB
33626STOPPER, SHIFT LEVER BUTTON
33631ASPRING, COMPRESSION (FOR DETENT ROD)
33631BPIN, SLOTTED SPRING (FOR DETENT ROD)
33631CRING, E (FOR DETENT ROD)
33631DPIN, GROOVED (FOR DETENT ROD)
33631EROLLER (FOR DETENT ROD)
L=11.7,OD=6
33634PROTECTOR, WIRE
33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33675BBUSH (FOR TRANSMISSION CONTROL ROD)
33675CGROMMET (FOR TRANSMISSION CONTROL ROD)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
33886STOPPER, SHIFT LEVER
35198ABRACKET, WIRE HARNESS CLAMP, NO.4
RR
FR
35976BCOVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT)
5806
8401
8410
9011906144
main90119-06144
9017908001
main90179-08001
9046814004
main90468-14004
9046814033
main90468-14033
9048010014
main90480-10014
9094901039
main90949-01039
9331534012
main93315-34012
9331914006
main93319-14006
9356053008
main93560-53008
9411040800
main94110-40800
9451200800
main94512-00800
9461310800
main94613-10800
49 parts on this diagram · 1 diagram in section
