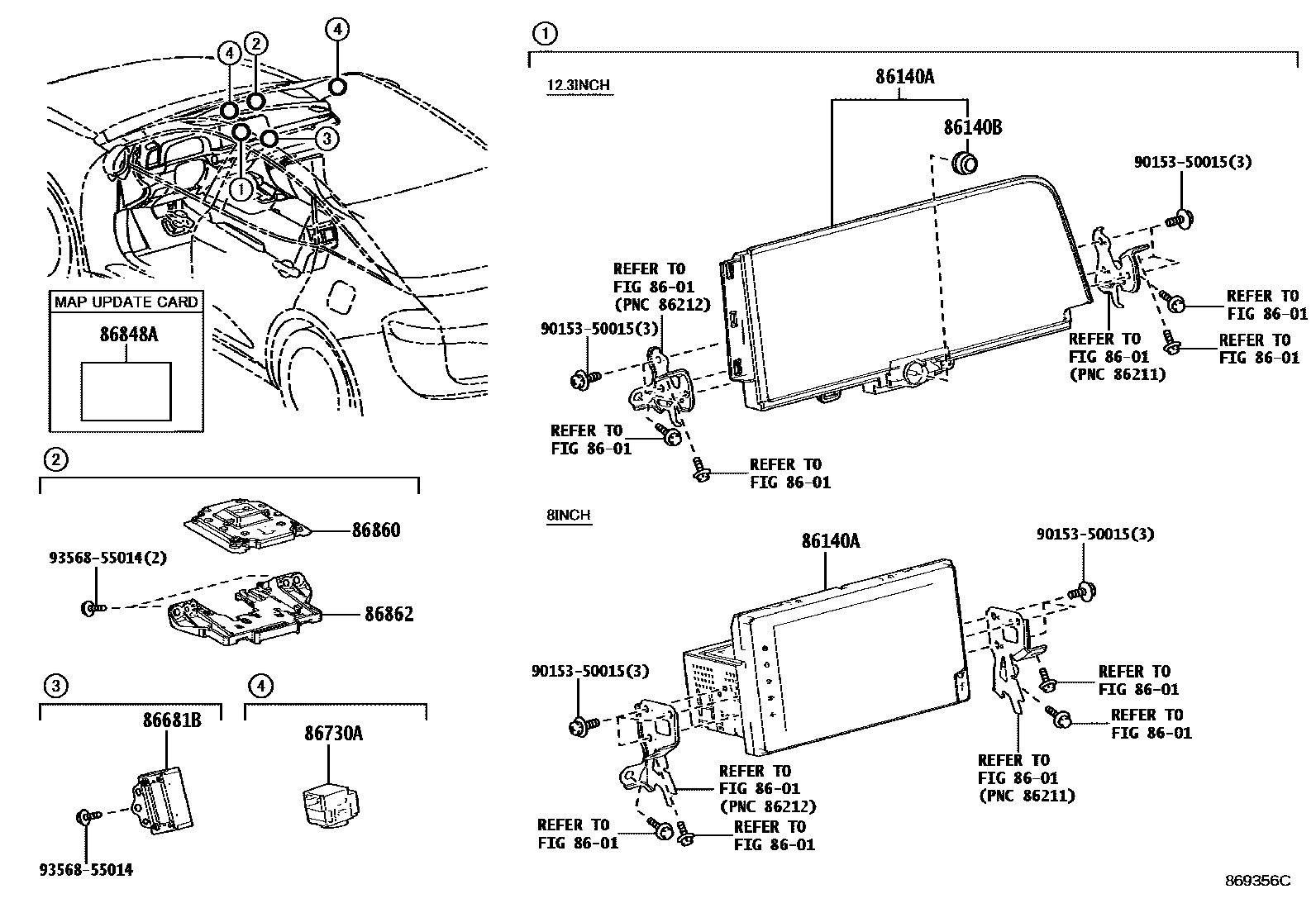

NAVIGATION & FRONT MONITOR DISPLAY

0001 1 0002 1

8601

86140ARECEIVER ASSY, RADIO & DISPLAY

main86100-30371iAZSH30,TZSH35..(A,G)..CHI202301-202310

DESAY

main86100-30372iAZSH30,TZSH35..(A,G)..CHI202310-202404

DESAY

main86100-30380iTZSH35..GCC202302-202404

PANASONIC,MID LUX PACKAGE

main86100-30380iAZSH30..GCC202302-202404

PANASONIC

main86100-30440iTZSH35..LHD..GEN202301-202404

PANASONIC

main86100-30460iAZSH35..RHD202301-202404

PANASONIC

main86100-30500iTZSH35..RHD202301-202404

PANASONIC

main86100-30520iAZSH30..RHD202301-202404

PANASONIC

main86100-30550iAZSH3#..LHD..GEN202301-202404

PANASONIC

main86100-30A20iAZSH30,TZSH35..(A,G)..CHI202404

DESAY

main86100-30A60iAZSH30..GCC202404

PANASONIC

main86100-30A60iTZSH35..GCC202404

PANASONIC,MID LUX PACKAGE

main86100-30A90iAZSH3#..LHD..GEN202404-202504

PANASONIC

main86100-30B00iAZSH30..RHD202404-202503

PANASONIC

main86100-30B10iTZSH35..LHD..GEN202404

PANASONIC

main86100-30B20iTZSH35..RHD202404

PANASONIC

main86100-30B80iAZSH35..RHD202404

PANASONIC

main86140-30030iAZSH30..M202301-202309

DESAY

main86140-30031iAZSH30..M202309-202404

DESAY

main86140-30050iAZSH30..GCC202301-202404

DESAY

main86140-30050iTZSH35..GCC202301-202404

DESAY,DECONTENT PACKAGE

main86140-30201iAZSH30..GCC202404-202504

DENSO TEN

main86140-30201iAZSH30..GCC202404-202504

DENSO TEN,DECONTENT PACKAGE

86140BKNOB, RADIO & DISPLAY RECEIVER SWITCH

main90010-24207iAZSH3#,TZSH35..GEN202301-202404

86681BDIVIDER, ANTENNA

86730AMICROPHONE ASSY, TELEPHONE

main86730-78010iAZSH30..M¥6,400202301-202503

main86730-78010iAZSH30..GCC¥6,400202301

DECONTENT PACKAGE&AUDIO-8INCH & 6SPEAKER & *DA

main86730-78010iAZSH30..GCC¥6,400202301

MID LUX PACKAGE&AUDIO-12.3 DISPLAY & JBL & 11SPEAKER & T2

86848ACARD, SERIAL NUMBER MAP UPDATE

main86848-78050iTZSH35..GCC202410

DECONTENT PACKAGE

main86848-78050iTZSH35..GCC202410

CENTRAL ASIA SPEC

main86848-78050iTZSH35..GCC202410

MID LUX PACKAGE

main86848-78070iAZSH30..RHD202410-202504

main86848-78090iAZSH35..RHD202410

86860ANTENNA ASSY, NAVIGATION

main86880-42030iTZSH35..GCC¥8,500202301-202404

BAHRAIN SPEC&REMOTE SERVICE PACKAGE-WITH

main86880-42030iAZSH30..GCC¥8,500202301-202404

BAHRAIN SPEC&DECONTENT PACKAGE&REMOTE SERVICE PACKAGE-WITH

main86880-42030iAZSH30,TZSH35..(A,G)..CHI¥8,500202301

UAE SPEC&DECONTENT PACKAGE&REMOTE SERVICE PACKAGE-WITH

main86880-42030iAZSH30,TZSH35..(A,G)..CHI¥8,500202301

QATR SPEC&DECONTENT PACKAGE&REMOTE SERVICE PACKAGE-WITH

main86880-42030iAZSH30,TZSH35..(A,G)..CHI¥8,500202301

QATR SPEC&REMOTE SERVICE PACKAGE-WITH

86862BRACKET, NAVIGATION ANTENNA

main86862-42010iTZSH35..GCC¥940202301

QATR SPEC&REMOTE SERVICE PACKAGE-WITH

main86862-42010iTZSH35..GCC¥940202301

UAE SPEC&DECONTENT PACKAGE&REMOTE SERVICE PACKAGE-WITH

main86862-42010iTZSH35..GCC¥940202301

UAE SPEC&REMOTE SERVICE PACKAGE-WITH

main86862-42010iTZSH35..GCC¥940202301

QATR SPEC&MID LUX PACKAGE&REMOTE SERVICE PACKAGE-WITH

main86862-42010iTZSH35..GCC¥940202301

QATR SPEC&DECONTENT PACKAGE&REMOTE SERVICE PACKAGE-WITH

main86862-42010iAZSH30..M¥940202301-202404

BAHRAIN SPEC&MID LUX PACKAGE&REMOTE SERVICE PACKAGE-WITH

main86862-42010iAZSH30..M¥940202301-202404

BAHRAIN SPEC&DECONTENT PACKAGE&REMOTE SERVICE PACKAGE-WITH

main86862-42010iAZSH30..M¥940202301-202404

BAHRAIN SPEC&REMOTE SERVICE PACKAGE-WITH

9015350015

main90153-50015¥60

9356855014

main93568-55014¥70

10 parts on this diagram · 2 diagrams in section
