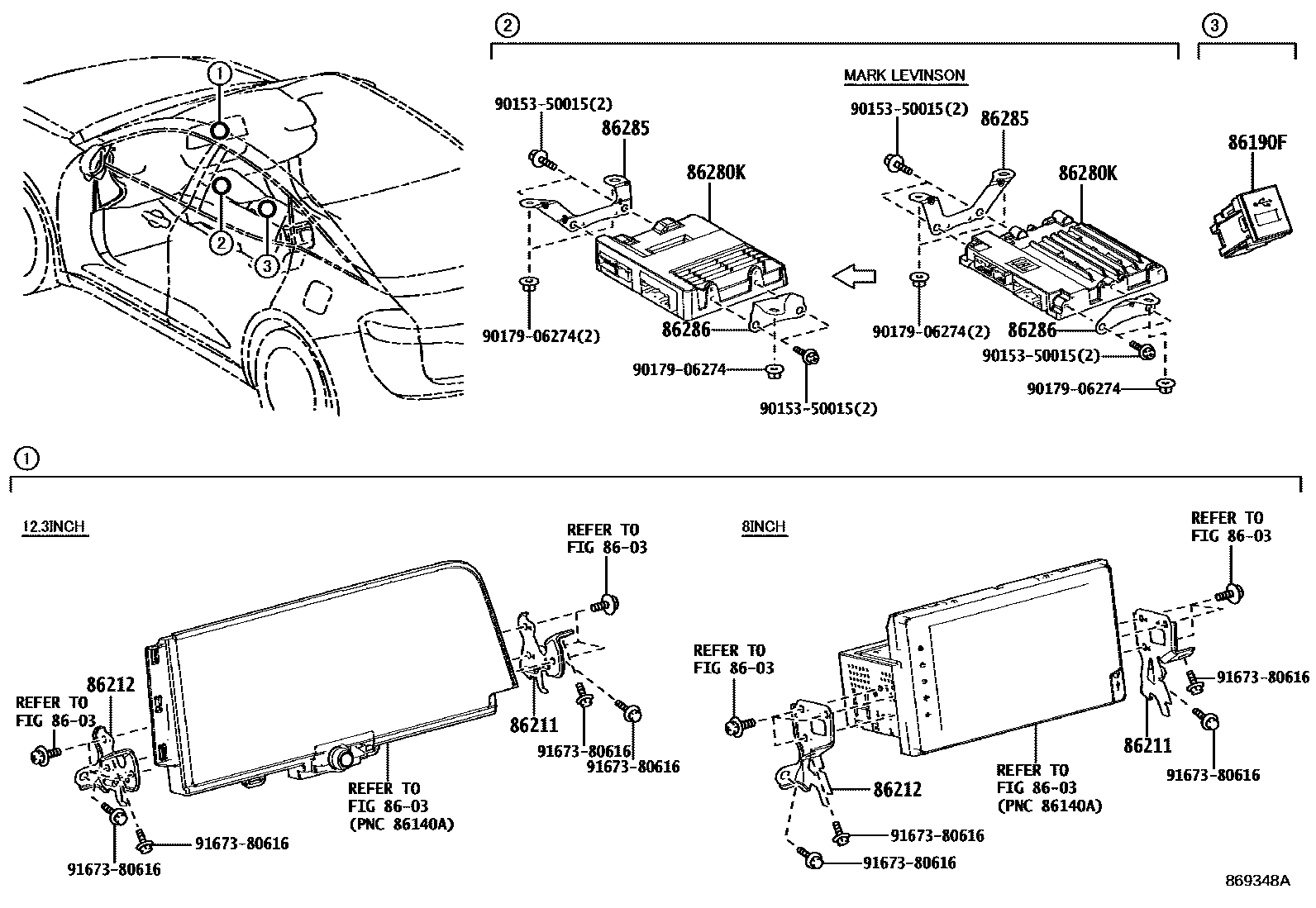

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

8603

86190FADAPTER ASSY, STEREO JACK

main86190-12080iAZSH35,TZSH35;AZSH30..LHD..(B,G)202404

DECONTENT PACKAGE(FOR CHINA)

main86190-12080iAZSH30..RHD202404-202503

main86190-34010iAZSH30..G202301-202404

DECONTENT PACKAGE(FOR CHINA)

86211BRACKET, RADIO, NO.1

main86211-12470iAZSH30..RHD202301-202503

main86211-12470iAZSH35,TZSH35;AZSH30..LHD..(B,G)..(CHI,GEN)202301

MID LUX PACKAGE

main86211-30510iAZSH30..M202301-202404

main86211-30510iAZSH30..GCC202301

DECONTENT PACKAGE

main86211-30510iAZSH30..G202404

DECONTENT PACKAGE(FOR CHINA)

86212BRACKET, RADIO, NO.2

main86212-12460iAZSH30..GCC202301

MID LUX PACKAGE

main86212-12460iAZSH30..RHD202301-202503

main86212-30470iAZSH30..GCC202301

DECONTENT PACKAGE

main86212-30470iAZSH30..M202301-202404

main86212-30470iAZSH30..G202404

DECONTENT PACKAGE(FOR CHINA)

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-30A10iTZSH35..RHD202301

main86280-30A20iAZSH30,TZSH35..LHD..(A,G)202301

MID LUX PACKAGE

main86280-30A20iAZSH30,TZSH35..LHD..(A,G)202301

DECONTENT PACKAGE

main86280-30A20iAZSH30,TZSH35..LHD..(A,G)202301

DECONTENT PACKAGE(FOR CHINA)

86285BRACKET, AMPLIFIER, NO.1

main86285-30440iTZSH35..RHD202301

main86285-30450iAZSH30..GCC202301

DECONTENT PACKAGE

main86285-30450iAZSH30,TZSH35..LHD..(A,G)202301

MID LUX PACKAGE

main86285-30450iAZSH30,TZSH35..LHD..(A,G)202301

DECONTENT PACKAGE(FOR CHINA)

86286BRACKET, AMPLIFIER, NO.2

main86286-30160iTZSH35..RHD202301

main86286-30170iAZSH30,TZSH35..LHD..(A,G)202301

MID LUX PACKAGE

main86286-30170iAZSH30,TZSH35..LHD..(A,G)202301

DECONTENT PACKAGE

main86286-30170iAZSH30,TZSH35..LHD..(A,G)202301

DECONTENT PACKAGE(FOR CHINA)

9015350015

main90153-50015

9017906274

main90179-06274

9167380616

main91673-80616

10 parts on this diagram · 2 diagrams in section
