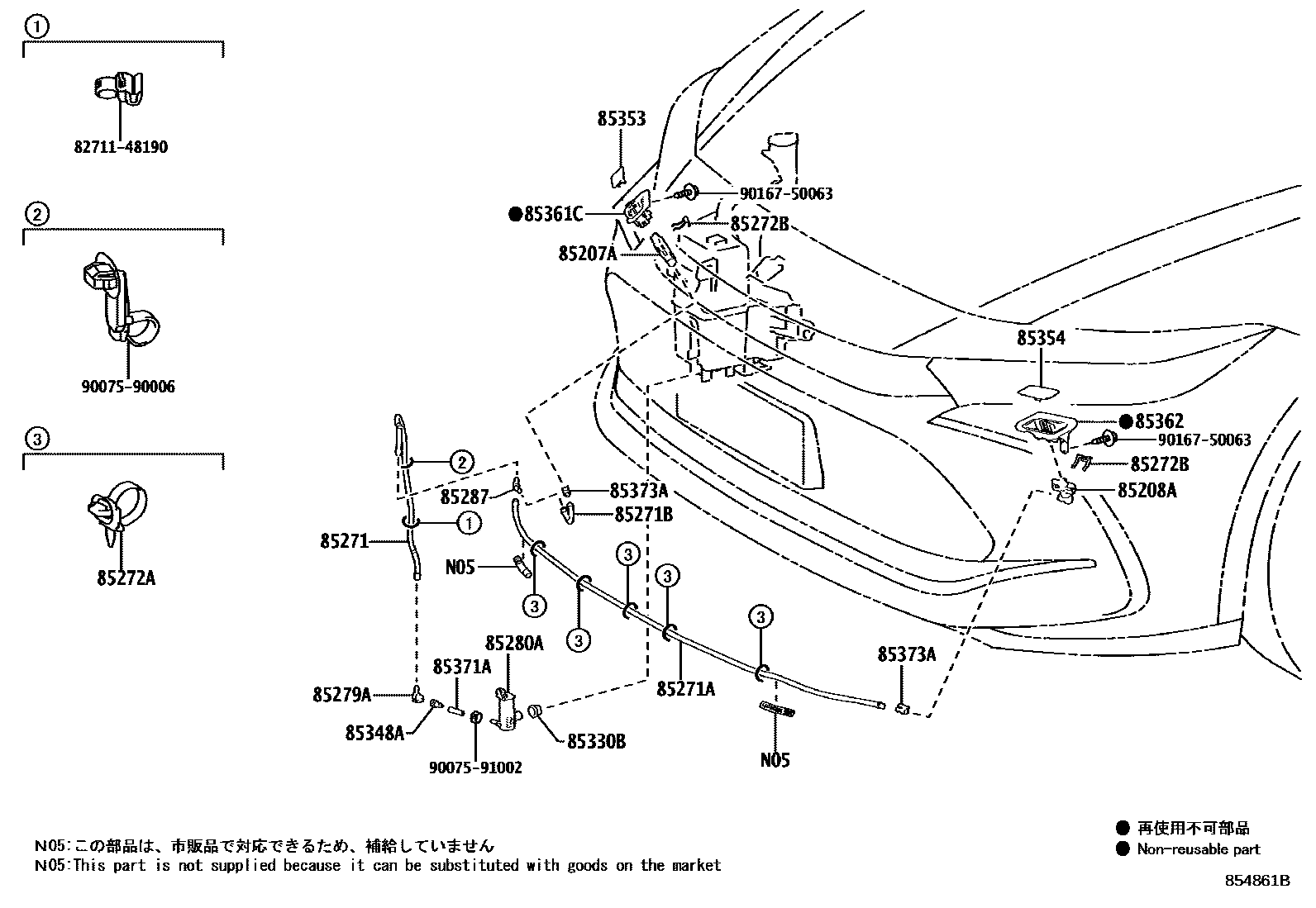

HEADLAMP CLEANER

85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH

main85207-30180iAZSH30,TZSH35..(A,G)..CHI202301

85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH

main85208-30180iAZSH30,TZSH35..(A,G)..CHI202301

85271HOSE, HEADLAMP CLEANER, NO.1

main85275-60090iAZSH30,TZSH35..(A,G)..CHI202301

L=600

85271AHOSE, HEADLAMP CLEANER, NO.2

main90075-15052iAZSH30,TZSH35..(A,G)..CHI202301

L=1330

85271BHOSE, HEADLAMP CLEANER, NO.3

main90075-15056iAZSH30,TZSH35..(A,G)..CHI202301

L=140

85272ACLAMP, HEADLAMP CLEANER, NO.1

main82711-12A70iAZSH30,TZSH35..(A,G)..CHI202301

85272BCLAMP, HEADLAMP CLEANER, NO.2

main85272-75050iAZSH30,TZSH35..(A,G)..CHI202301

85279AJOINT, HEADLAMP CLEANER HOSE

main90075-17009iAZSH30,TZSH35..(A,G)..CHI202301

85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER

main85280-33030iAZSH30,TZSH35..(A,G)..CHI202301

85287JOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17020iAZSH30,TZSH35..(A,G)..CHI202301

85330BBUSH, HEADLAMP CLEANER WASHER JAR

main90099-32089iAZSH30,TZSH35..(A,G)..CHI202301

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

main90075-17012iAZSH30,TZSH35..(A,G)..CHI202301

85353COVER, HEADLAMP WASHER, RH

main85353-30230-A0iAZSH30,TZSH35..(A,G)..CHI202301

PRECIOUS WHITE PEARL,090 ,2XW

main85353-30230-B0iAZSH30,TZSH35..(A,G)..CHI202301

PRECIOUS METAL,1L5 ,2WC ,2ZA

main85353-30230-B1iAZSH30,TZSH35..(A,G)..CHI202301

MASSIVE GRAY,1L6 ,2XY

main85353-30230-B4iAZSH30,TZSH35..(A,G)..CHI202301-202504

PRECIOUS SILVER,1J6 ,2ZB

main85353-30230-C0iAZSH30,TZSH35..(A,G)..CHI202301

BLACK,202

main85353-30230-D0iAZSH30,TZSH35..(A,G)..CHI202301-202504

EMOTIONAL RED 2,2TB ,2YZ ,3U5

main85353-30230-E0iAZSH30,TZSH35..(A,G)..CHI202301

PRECIOUS BRONZE,2XZ ,4Y6

main85353-30230-F0iTZSH35..CHI202301-202404

PRECIOUS RAY,2YA

85354COVER, HEADLAMP WASHER, LH

main85354-30230-A0iAZSH30,TZSH35..(A,G)..CHI202301

PRECIOUS WHITE PEARL,090 ,2XW

main85354-30230-B0iAZSH30,TZSH35..(A,G)..CHI202301

PRECIOUS METAL,1L5 ,2WC ,2ZA

main85354-30230-B1iAZSH30,TZSH35..(A,G)..CHI202301

MASSIVE GRAY,1L6 ,2XY

main85354-30230-B4iAZSH30,TZSH35..(A,G)..CHI202301-202504

PRECIOUS SILVER,1J6 ,2ZB

main85354-30230-C0iAZSH30,TZSH35..(A,G)..CHI202301

BLACK,202

main85354-30230-D0iAZSH30,TZSH35..(A,G)..CHI202301-202504

EMOTIONAL RED 2,2TB ,2YZ ,3U5

main85354-30230-E0iAZSH30,TZSH35..(A,G)..CHI202301

PRECIOUS BRONZE,2XZ ,4Y6

main85354-30230-F0iTZSH35..CHI202301-202404

PRECIOUS RAY,2YA

85361CBRACKET, WASHER

main85361-30390iAZSH30,TZSH35..(A,G)..CHI202301

85362BRACKET, WASHER, NO.2

main85362-30390iAZSH30,TZSH35..(A,G)..CHI202301

85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)

main90075-15053iAZSH30,TZSH35..(A,G)..CHI202301

L=35

main90075-15053iAZSH30..G202404

L=35,DECONTENT PACKAGE(FOR CHINA)

85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)

main90075-17011iAZSH30,TZSH35..(A,G)..CHI202301

8271148190WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48190

9007590006

main90075-90006

9007591002

main90075-91002

9016750063

main90167-50063

22 parts on this diagram · 1 diagram in section
