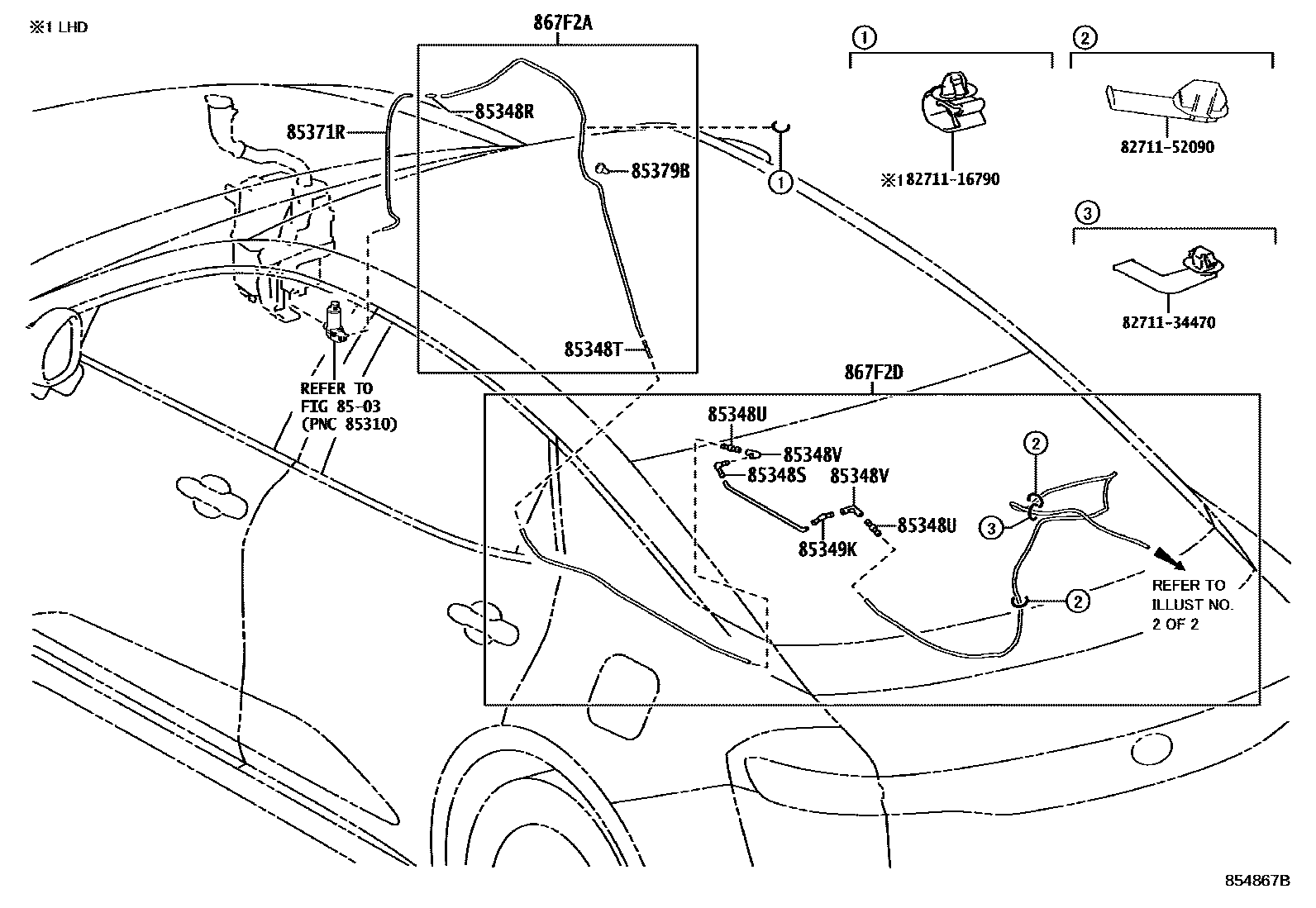

REAR WASHER

0001 1 0002 1

8503

85348RJOINT, REAR WASHER HOSE, NO.1

main867FD-30010iAZSH30..RHD202301-202503

85348SJOINT, REAR WASHER ELBOW, NO.1

main85376-16370iAZSH30..RHD202301-202503

85348TJOINT, REAR WASHER HOSE, NO.2

main867FD-30010iAZSH30..RHD202301-202503

85348UJOINT, REAR WASHER HOSE, NO.3

main867FD-30020×2iAZSH30..RHD202301-202503

85348VJOINT, REAR WASHER HOSE, NO.4

main867FD-30021×2iAZSH30..RHD202301-202503

85349KJOINT, REAR WASHER ELBOW, NO.2

main85376-16370iAZSH30..RHD202301-202503

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iAZSH30..RHD202301-202503

L=1450(*H,L=480)

85379BGROMMET, WASHER, A

main85379-12850iAZSH30..RHD202301-202503

867F2AHOSE ASSY, CAMERA CLEANER

main867F2-30010iAZSH30..RHD202301-202503

867F2DHOSE, CAMERA CLEANER, NO.3

main867F2-30020iAZSH30..RHD202301-202503

8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16790

8271134470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-34470

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

14 parts on this diagram · 2 diagrams in section
