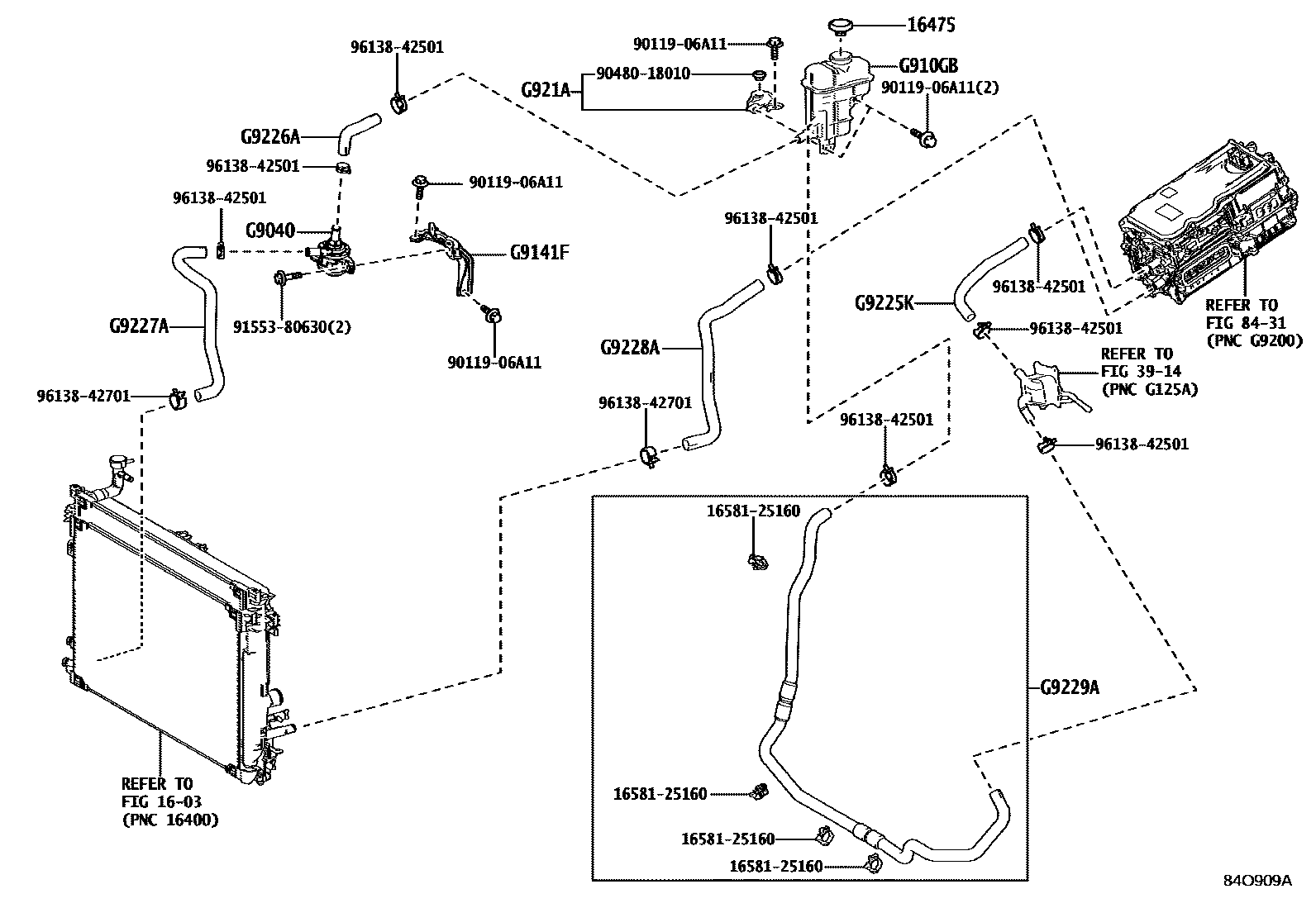

INVERTER COOLING

0001 1 0002 1FRONT PIPING 0003 1REAR PIPING

1603

16475CAP, RESERVE TANK

main16475-28140iA25AFXS..AZSH30..M¥1,200202301-202503

3914

8431

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904048030iTZSH35202301

mainG904048050iAZSH30..RHD202301-202503

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G42010iAZSH35;AZSH30..LHD..(B,G)202301-202503

G9141FBRACKET, HV WATER PUMP

mainG914148040iTZSH35202301

mainG914178010iAZSH30..M202301-202503

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAZSH30..M202301-202503

G9225KHOSE, INVERTER COOLING, NO.1

mainG922533080iAZSH30..RHD202301-202503

G9226AHOSE, INVERTER COOLING, NO.2

mainG922630030iTZSH35202301

mainG922642020iAZSH30..M202301-202503

G9227AHOSE, INVERTER COOLING, NO.3

mainG922730050iAZSH35;AZSH30..LHD..(B,G)202301-202503

mainG922748070iTZSH35202301

G9228AHOSE, INVERTER COOLING, NO.4

mainG922830060iAZSH30..M202301-202503

mainG922848050iTZSH35202301

G9229AHOSE, INVERTER COOLING, NO.5

mainG922930070iAZSH30..M202301-202503

mainG922948030iTZSH35202301

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

9011906A11

main90119-06A11¥60

9048018010

main90480-18010¥130

9155380630

main91553-80630¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

19 parts on this diagram · 3 diagrams in section
