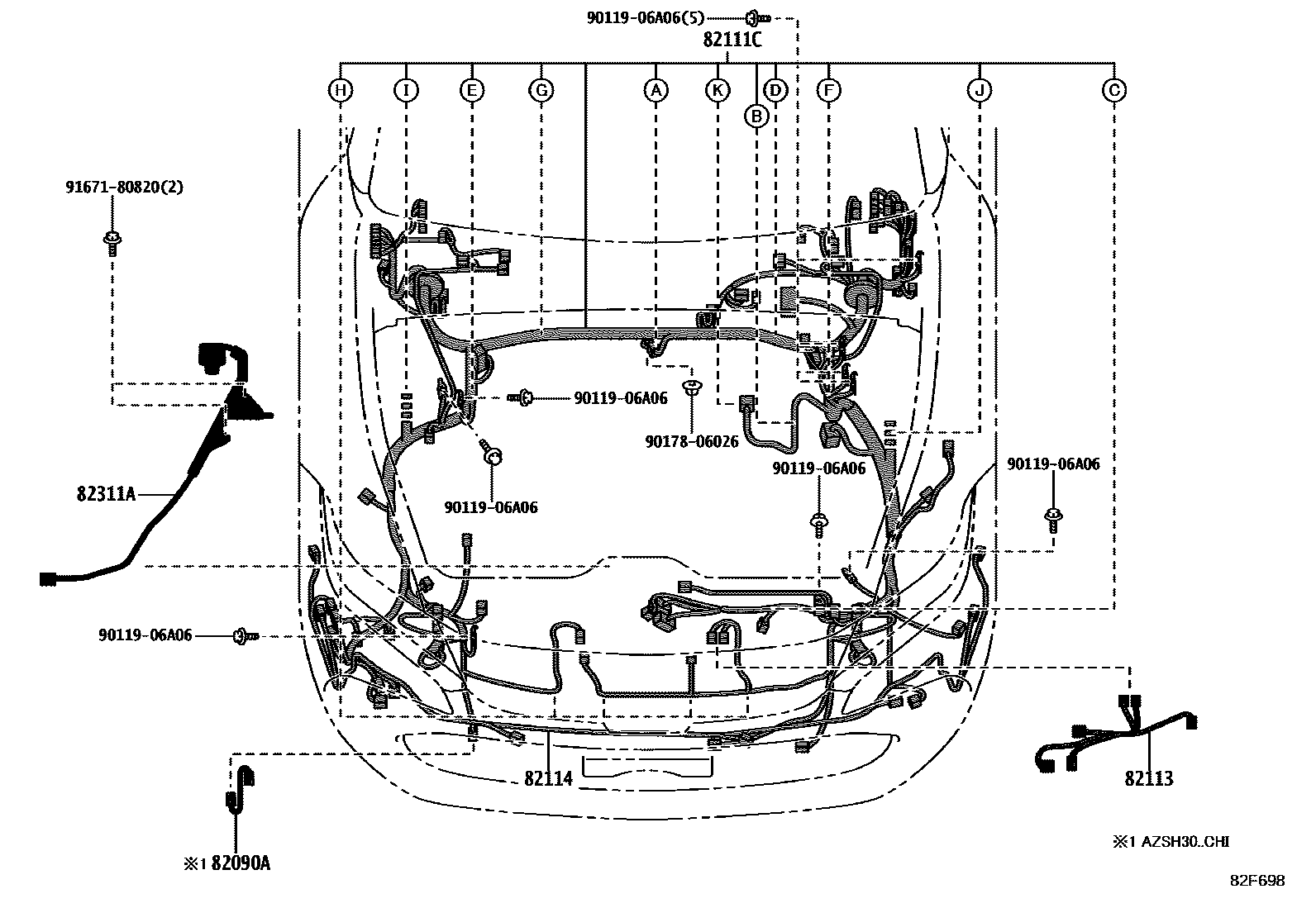

82090AWIRE ASSY, EXTENSION

main82090-33030iAZSH30..G¥620202301-202404

82111CWIRE, FRONT COMPARTMENT, MAIN

main82111-3AK80iAZSH30..G202404

main82111-3AK90iTZSH35..CHI202404

main82111-3FK70iAZSH30..G202301-202404

main82111-3FK90iAZSH30..GCC202301-202404

main82111-3FK91iAZSH30..GCC202404

main82111-3FL80iTZSH35..CHI202301-202404

main82111-3FM10iAZSH3#..RHD202301-202404

main82111-3FM11iAZSH30..RHD202404-202503

main82111-3FM30iTZSH35..RHD202301-202404

main82111-3FM31iTZSH35..RHD202404

main82111-3FM50iAZSH3#..LHD..GEN202301-202404

main82111-3FM51iAZSH3#..LHD..GEN202404-202504

main82111-3FN00iTZSH35..LHD..(GCC,GEN)202301-202404

main82111-3FN01iTZSH35..LHD..(GCC,GEN)202404

main82111-3FN40iAZSH30..M202301-202404

82113WIRE, ENGINE ROOM, NO.3

main82113-30800iTZSH35;AZSH35..RHD;AZSH30..LHD..(B,G)¥1,430202301-202504

82114WIRE, ENGINE ROOM, NO.4

main82114-30520iAZSH30..RHD¥2,140202301-202503

82311AWIRE, AIR CONDITIONER

main821H2-42020iAZSH30..M¥11,700202301-202503

main821H2-48040iTZSH35¥7,700202301

9011906A06

main90119-06A06¥60

9017806026

main90178-06026¥80

9167180820

main91671-80820¥80

8 parts on this diagram · 23 diagrams in section
