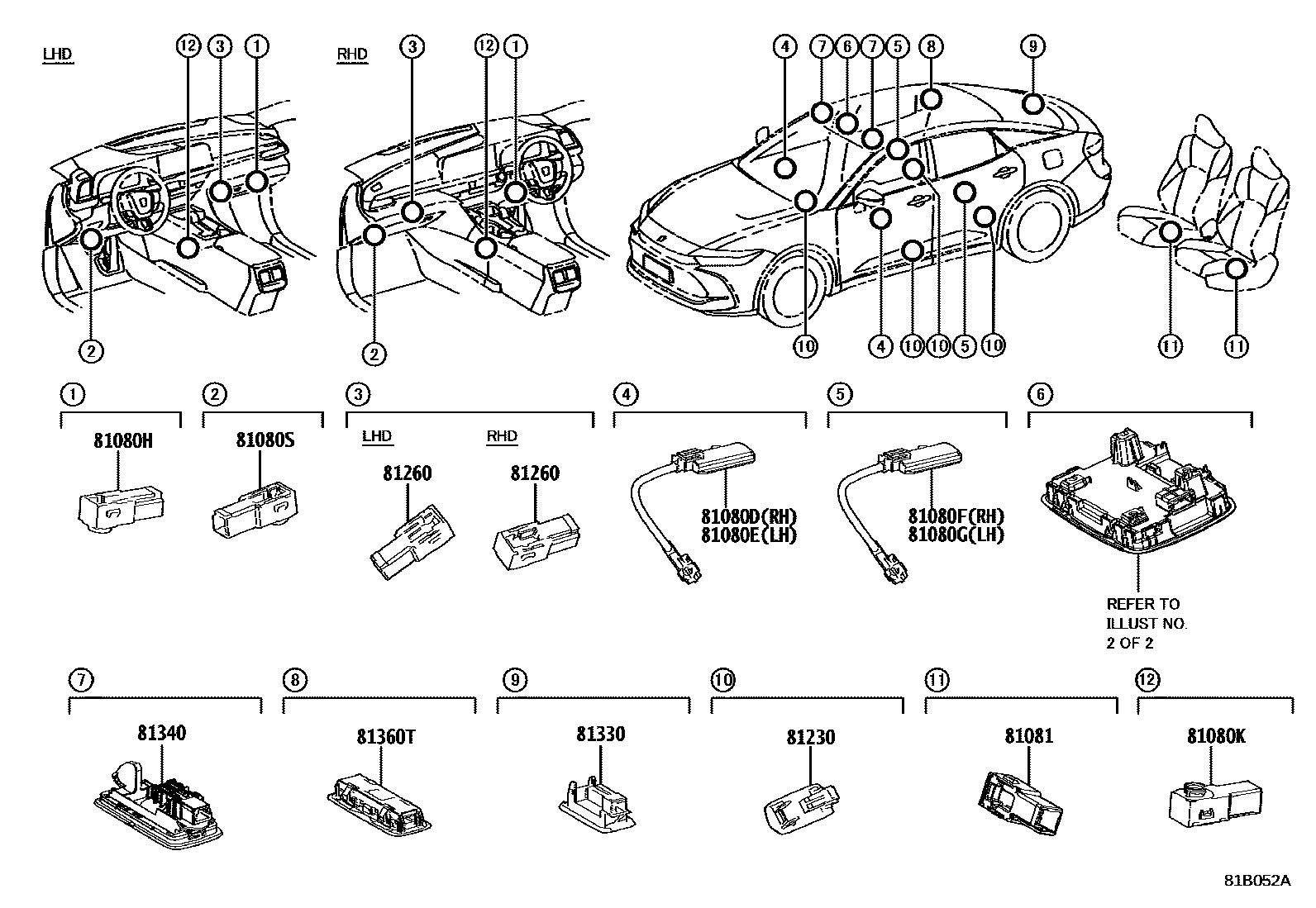

INTERIOR LAMP

0001 1 0002 1

81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-30190iAZSH30..GCC202301

MID LUX PACKAGE

81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-30200iAZSH30,TZSH35..A,G202301

MID LUX PACKAGE

81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-30190iAZSH30,TZSH35..A,G202301

MID LUX PACKAGE

81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-30200iAZSH30..GCC202301

MID LUX PACKAGE

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-33290iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301-202503

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-33290iAZSH30..M202301-202503

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-33290iAZSH30..RHD202301-202503

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81080-33290iAZSH30,TZSH35..A,G202301

IRAQ SPEC&MID LUX PACKAGE

main81080-33290iAZSH30,TZSH35..A,G202301

JORDAN SPEC&MID LUX PACKAGE

main81080-33290iAZSH30,TZSH35..A,G202301

LEBANON SPEC&MID LUX PACKAGE

main81080-33290iAZSH30,TZSH35..A,G202301

CENTRAL ASIA SPEC&MID LUX PACKAGE

main81080-33290iAZSH30,TZSH35..A,G202301

MID LUX PACKAGE

81230LAMP ASSY, COURTESY

main81230-11030iAZSH30..M202301-202503

81260LAMP ASSY, GLOVE BOX

main81080-33290iAZSH30..M202301-202503

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010iAZSH30..RHD202301-202503

81340LAMP ASSY, VANITY

main81340-33170iAZSH35,TZSH35;AZSH30..LHD..(B,G)202301-202503

81360TLAMP ASSY, SPOT

main81360-33070-A0iAZSH30..LHD..B;AZSH35,TZSH35..GCC,GEN202301-202503

FROMAGE,TRIM0#

main81360-33070-C0iAZSH30..M202301-202503

BLACK,TRIM2#

13 parts on this diagram · 2 diagrams in section
